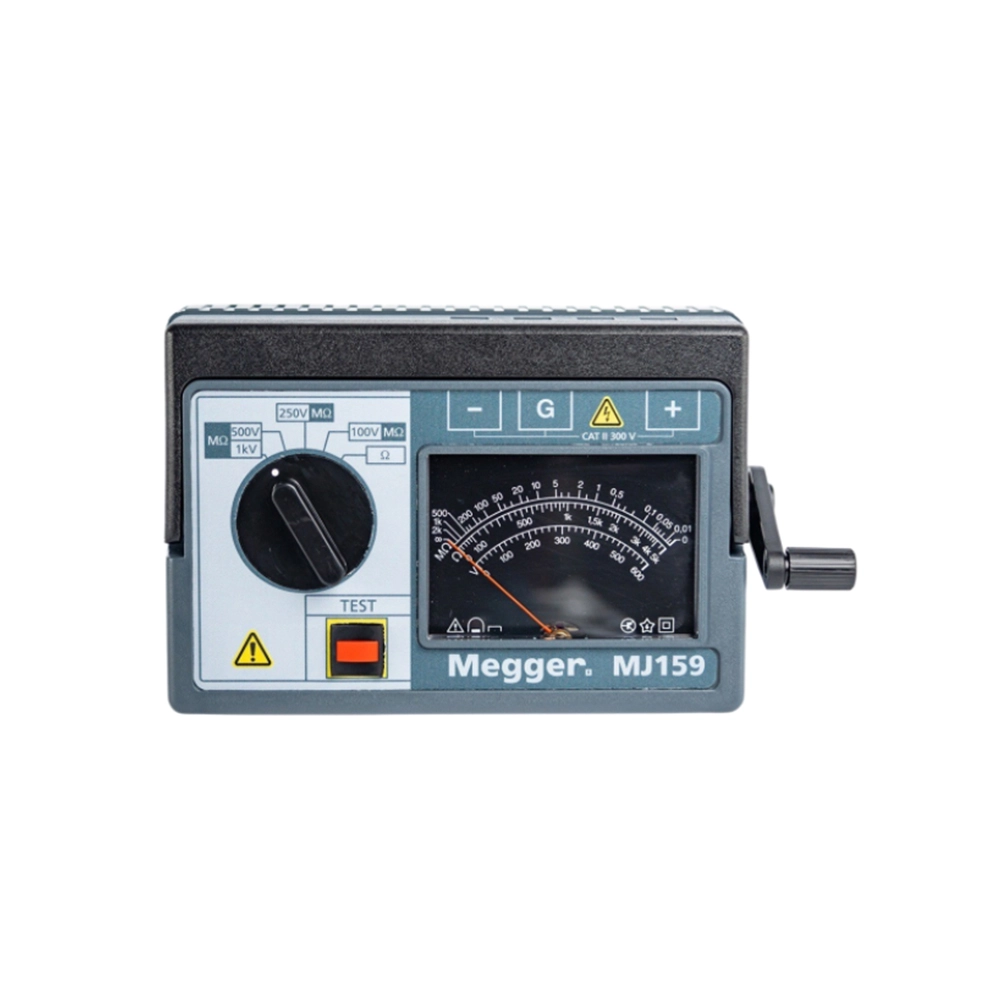

Megger 6410-863 MJ159 Major Insulation Resistance Tester 100V-1000V, 2000 MOhms, Automatic Discharge, Surface Leakage Guard
Model # 6410-863Key Features
?
Question about this product?
Features
- Guard terminal to eliminate surface leakage current
- Voltage indicating range
- Portable tester
- No scale multipliers
- Multiple test voltages for spot and step voltage testing
- Large, easy-to-read scale
Technical Information
- Insulation Resistance 0 to 2,000 MΩ
- Nominal Test Voltages(DC)100V, 250V, 500V, 1000V
- Midscale resistance4 MΩ
- Short Circuit Current1.9 mA
- Maximum Load Capacitance 1μF with less than ±0.1” pointer movement
- Low Resistance Range0.1 Ω - 5000 Ω
- Voltage Measurement20V to 600V AC
- Dimension213mm x 124mm x 128mm
- Power SourceHand cranked brushless AC generator (130 - 170 rpm)
- Hand Cranked
- Weight1kg
Items Included
- User guide
- Test lead set (3 leads, 3 prods, 3 clips)
- Power cord (where applicable)
- Test record card (5 supplied)
- Carrying case
