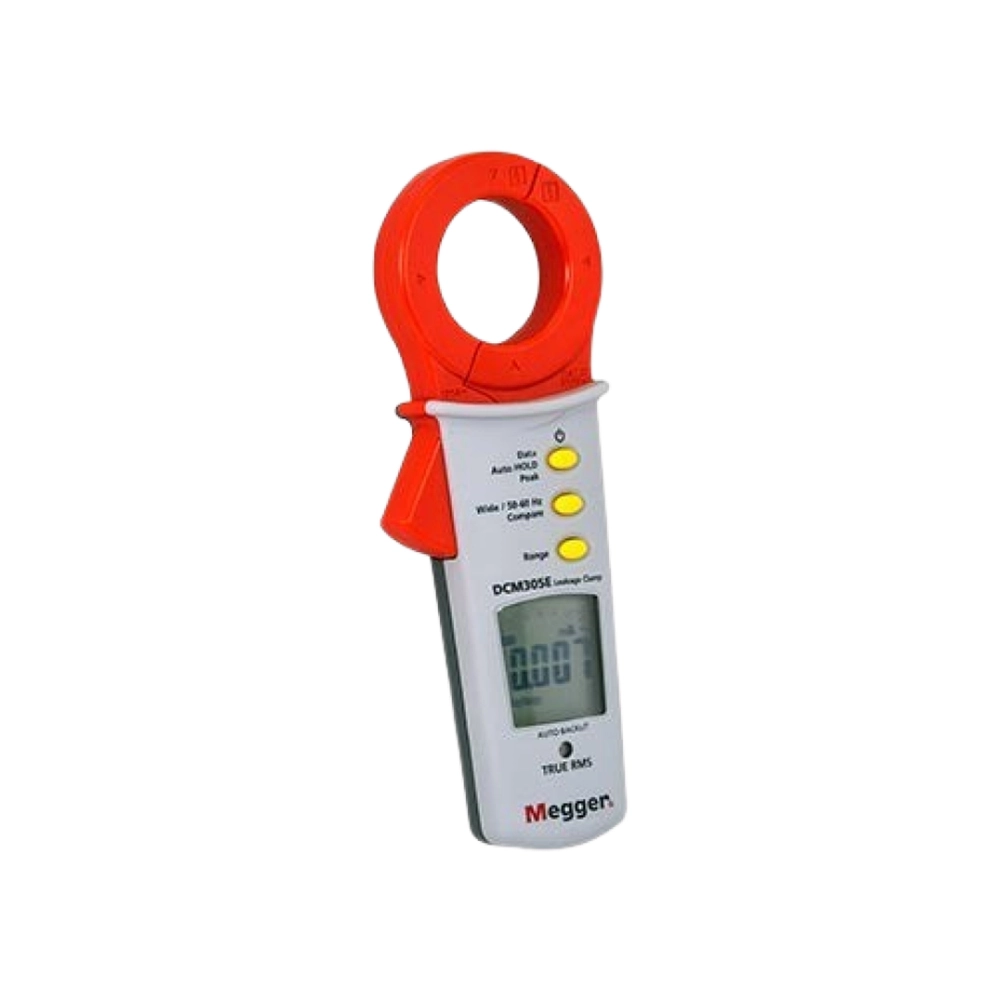

Megger 2009-574 DCM305E True RMS Earth Leakage Clamp Meter, 0.001 mA - 100A, AC only with Low Pass Filter 50Hz/60Hz
Model # 2009-574Key Features
?
Question about this product?
Features
- 0.001 mA resolution
- Up to 100 A AC
- TRMS reading
- Low pass filter to aid stability of readings
- Auto, data & peak hold
- 40 mm jaw
Technical Information
- Absolute Maximum AC Current Measurement100A
- AC Current Measurement Resolution1µA
- Clamp Meter TypeLeakage Clamp Meter
- AC Current Accuracy±10 % + 10 digit
- Jaw Capacity Busbars40mm
- Functions MeasuredAC Current, True RMS
- Minimum Operating Temperature0°C
- Maximum Conductor Size750mm
- Battery Life60 h
- Power SourceBattery
- Battery TypeAAA
- Dimensions78 x 42 x 203mm
- Safety CategoryCAT III 300V
- Display TypeBacklight
- Maximum Operating Temperature+50°C
Items Included
- Carrying case
