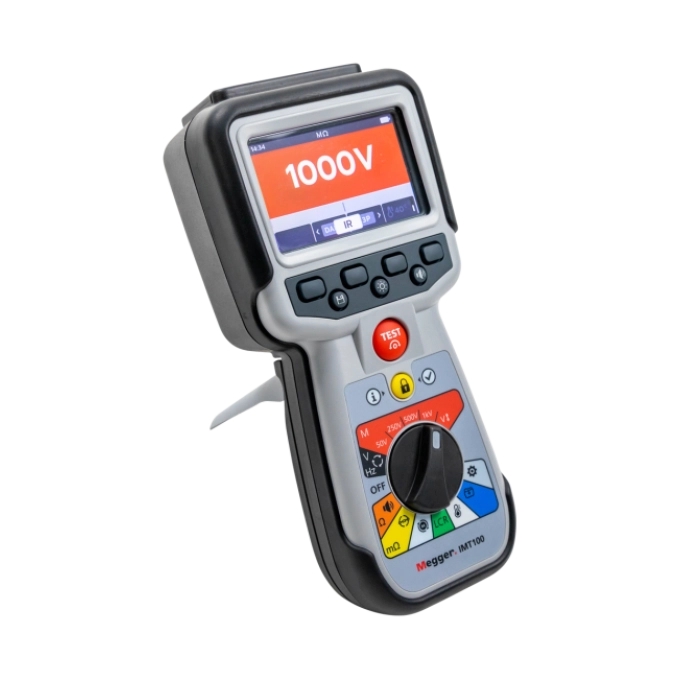

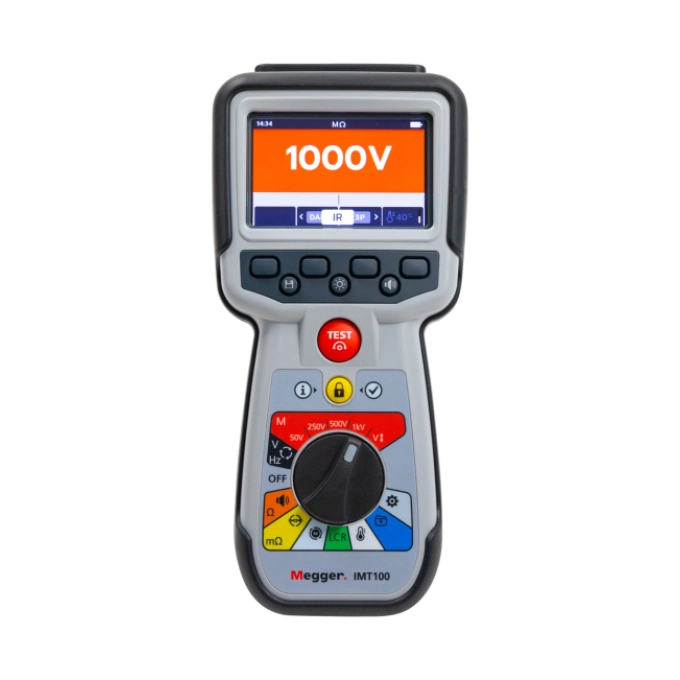

Megger 1015-518 IMT 100 Industrial Multi Tester for EV, PV Systems

Features

• Full color graphic display
• DC voltage and polarity test
• AC voltage, phase rotation and frequency
• Insulation resistance, surface leakage, and current detection
• 4 wire low resistance bonding test
• 2 wire continuity and diode test
• CAT III 600 V up to 3000 m

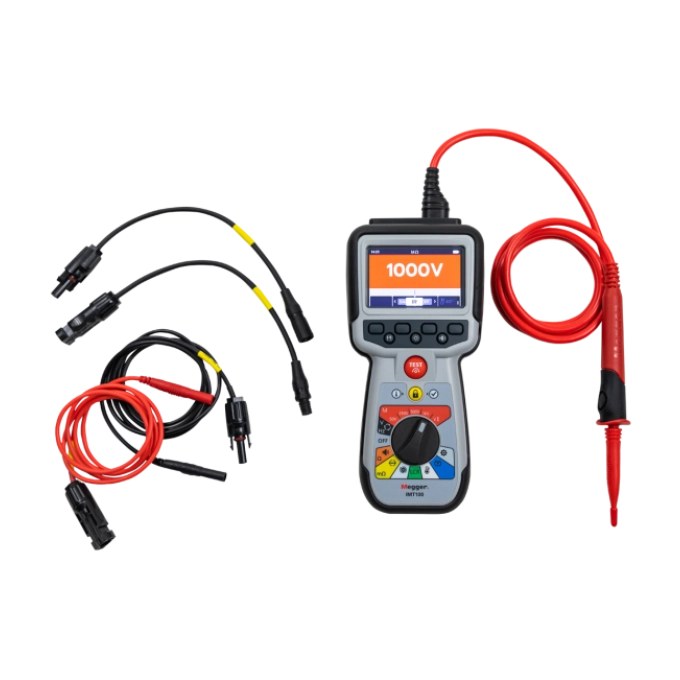

• Full set of detachable test leads with interchangeable clips and probes for different applications, including PV connectors
• Guided lead set up diagrams
• Rechargeable batteries with mains charger kit
• DC voltage with polarity test, and AC voltage with phase rotation and frequency
• Unique resistance testing capabilities with two, three and four terminals, including guard connection, to eliminate any surface leakage current
• Data storage for up to 256 tests, which can be downloaded to USB

Technical Information

• DC Voltage0 to 1000V
• AC Voltage10mV to 1000V
• Capacitance0.1nF to 1 mF
• Safety RatingCAT IV 600V / CAT III 1000V
• Battery6 x IEC LR6 1.5 V Alkaline (AA)
• Weight0.93 kg
• Size228 x 105 x 75 mm

Items Included

• 1x Industrial Multi-Function Tester
• 1x Hook Strap Assembly
• 1x Multipurpose Industrial Carrying Case
• 1x SP5 Remote Probe
• 600mV to 750V1x Temperature Probe, T Type CAT III 600 V
• 600mV to 1000V1x IR Lead Set
• 60MΩ1x Kelvin Clip Lead Set, CAT III 600 V
• 40nF to 4000µF1x Kelvin Probe Lead Set, CAT III 600 V
• 600µA to 10A1x Replaceable Kelvin Probe Pins (Pack of 4)
• 600µA to 10A1x PV Test Lead Set Adaptors
