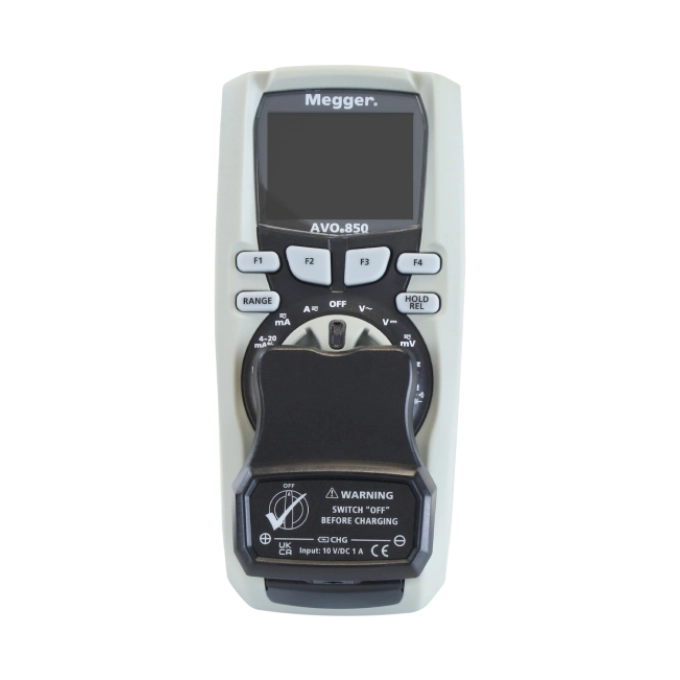

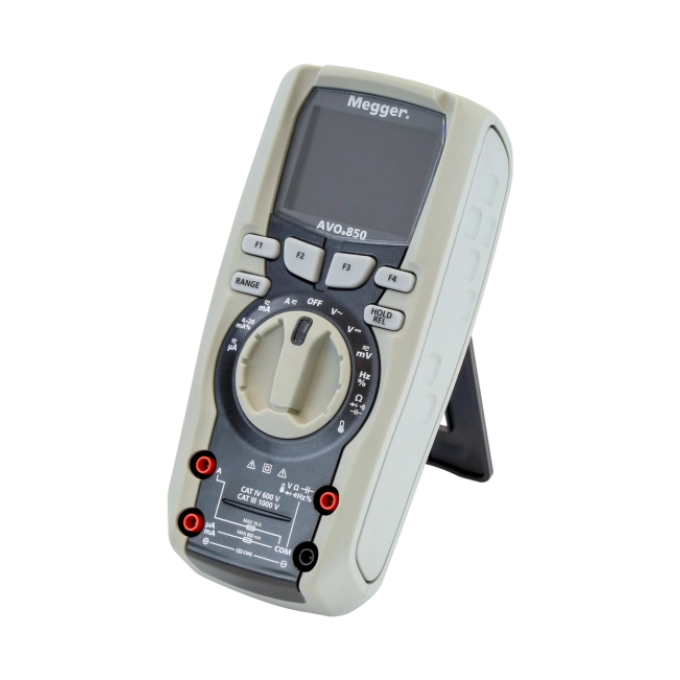

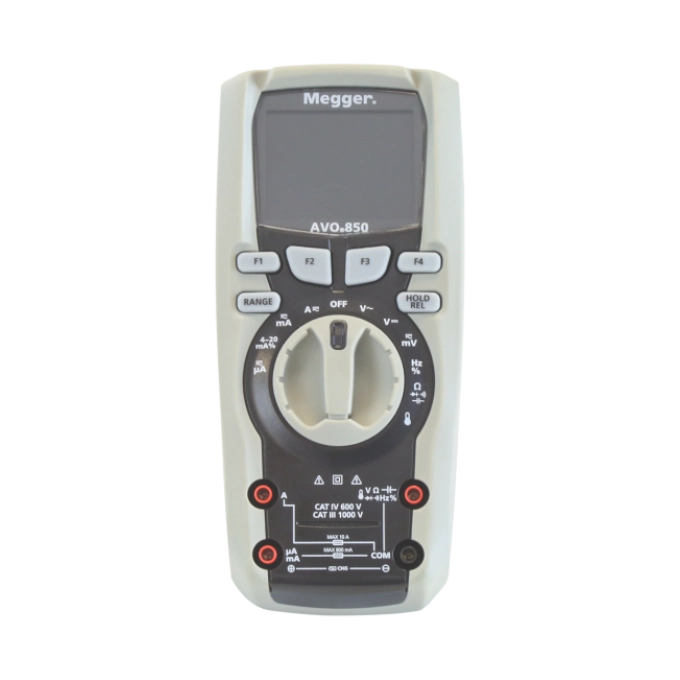

Megger 1015-515 AVO 850 True RMS Digital multimeter, 1000V, 10A, CAT IV 600V, 50,000 counts TFT color LCD, Temperature, Frequency and Bluetooth Interface

Features

• Safety rated CAT III 1000 V, CAT IV 600 V
• Accurate True-RMS AC current and voltage
• High accuracy (±0.05%)
• Measure frequency up to 10 MHz
• Resistance, continuity, and diode measurements
• 10 mF capacitance range
• Bright back-light display
• High resolution 50 000 counts 320 x 240 TFT color LCD
• Current measurement to 10 A
• Analogue bar graph
• IP40 (waterproof and dust-proof) rating
• Designed and tested to withstand 2 m (6.6 ft) drop
• Li-ion rechargeable battery

Technical Information

• DC Voltage500mV to 1000V
• AC Voltage500mV to 1000V
• Resistance500Ω to 50MΩ
• Capacitance5nF to 10 mF
• DC Current500µA to 10A
• AC Current500µA to 10A
• Frequency10Hz to 10KHz
• Safety RatingCAT IV 600V / CAT III 1000V
• BatteryLithium polymer battery (NEDA 1604 battery 1200 mAh 7.4 V 8.88 Wh)
• Weight376 g with battery 416 g
• Size170 mm x 79 mm x 50 mm

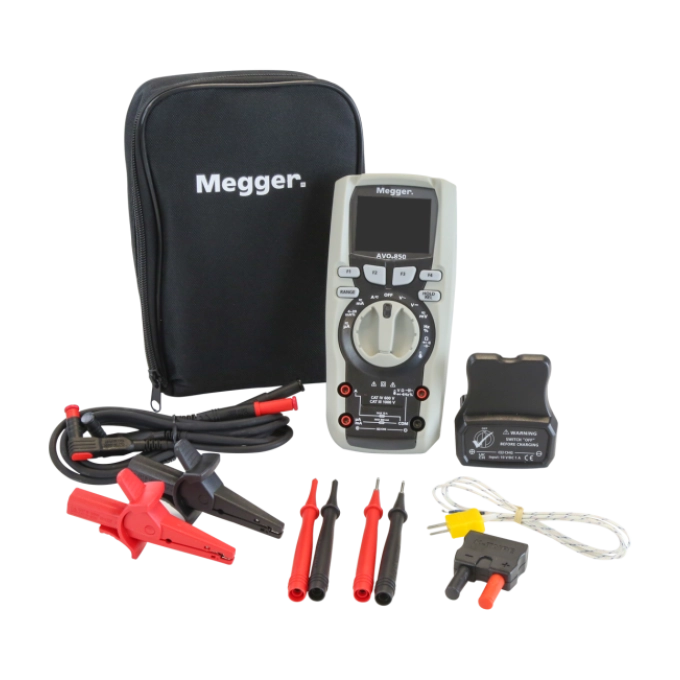

Items Included

• 1x AVO850 TRMS Multimeter
• 2x Non-Fused, Right Angle Connector Test Leads, 1 m 4 mm
• 2x Exposed Metal Probes, 4 mm
• 2x Exposed Tip Probes for CAT II Probing
• 600mV to 750V1x Red and Black Crocodile Clips
• 600mV to 1000V1x K-Type Multimeter Adapter
• 60MΩ1x K-Type Thermocouple Lead
• 40nF to 4000µF1x Soft Case
• 600µA to 10A2x Cap Plugs, 4 mm
• 600µA to 10A1x Rechargeable Battery and Universal Mains Charger
