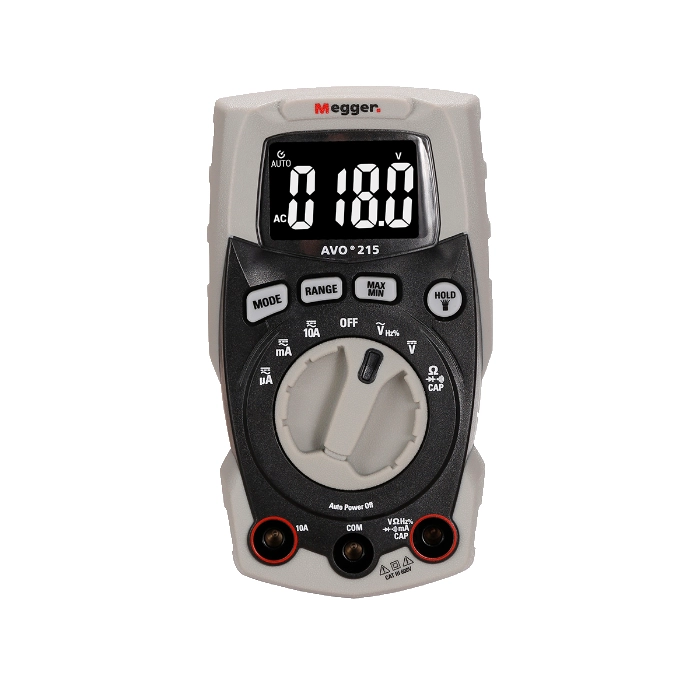

Megger 1015-233 AVO 215 True RMS Multimeter, 600V, 10A, CAT III 600V

Features

• True RMS CAT III multimeter
• AC/DC voltages up to 600V
• ACA/DCA up top 10A
• Resistance 0 to 40MO
• Frequency 10Hz to 10kHz
• Capacitance 0 to 4000µF
• Duty cycle, Diode, Continuity
• Function data Hold, MAX/MIN
• Built in flashlight
• Battery powered
• Rear tilt stand
• Auto power off

Technical Information

• DC Voltage400mV to 600V
• AC Voltage4V to 600V
• Resistance400Ω to 40MΩ
• Capacitance40nF to 4000µF
• DC Current400µA to 10A
• AC Current400µA to 10A
• Frequency10Hz to 10kHz
• Safety RatingCAT III 600V
• Battery1.5V AAA x2 Batteries
• Weight342g
• Size182x82x59mm

Items Included

• Megger AVO215 CATIII TRMS Multimeter
• Test leads
• Protective carry pouch

Downloads

Datasheet
