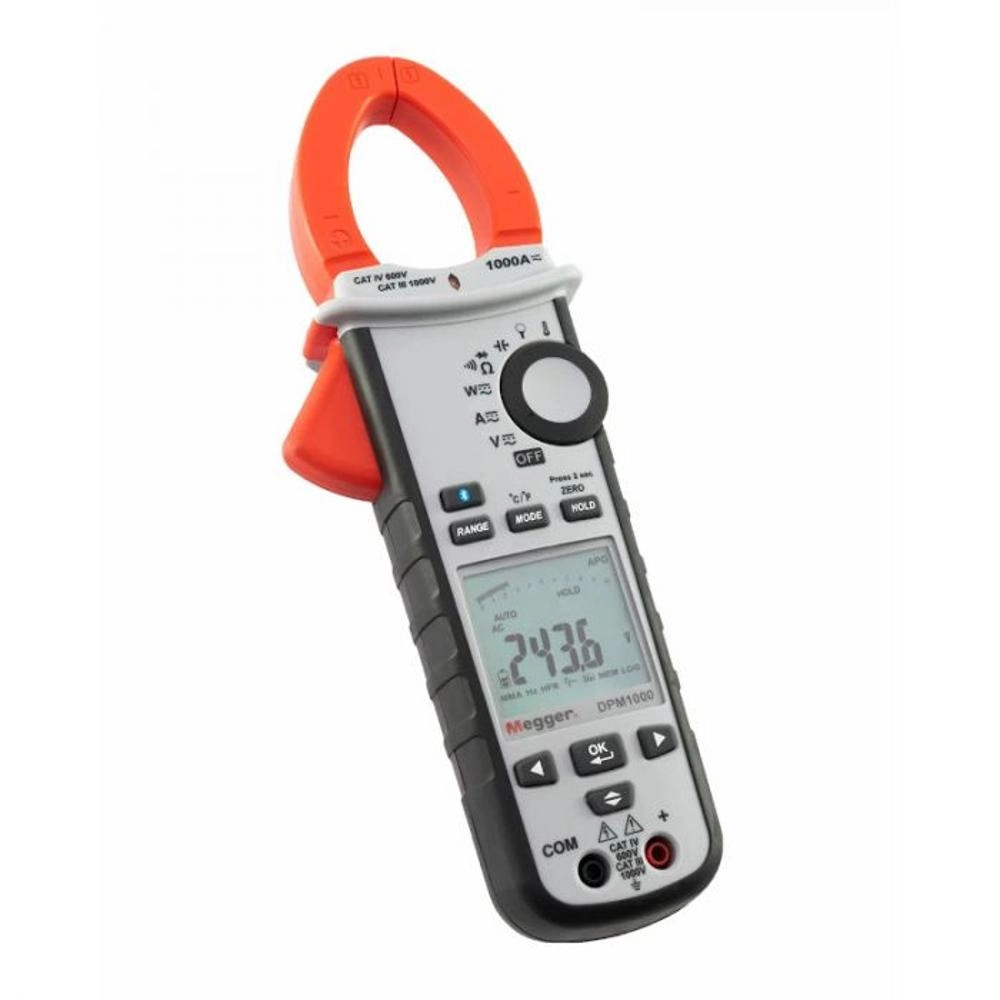

Megger 1013-356 DPM1000 Power Clamp Meter, 1000A, 40mm Jaw, 1000V, 100kΩ, CAT IV 600V

Model # 1013-356

Key Features

Brand: Megger
Model: 1013-356
Warranty: 1 year

Qty:

Qty:

?

Question about this product?

Speak to an expert

Features

AC/DC voltage to 1000 V
AC/DC current to 1000 A
True RMS
Resistance 100 kΩ
Bluetooth link to the Megger Link app
Phase rotation indication
Continuity Beeper
Data Hold/Min-Max/Peak Hold
Bright LED torch
CAT IV 600 V Rating
Supplied with carry case and Carrying holster/pouch

Technical Information

AC Voltage1000V
AC Current1000A
Jaw Size40mm
DC Voltage1000V
DC Current1000A
Resistance100kΩ
Capacitance4 µF – 4000 µF
Safety RatingCAT IV 600V
BatteryAAA Size Battery 1.5V x 6
Dimensions103 x 258 x 55mm
Weight600 g (with batteries)

Items Included

DCM 4mm Spare Lead Set
TPK100 K-Type Thermocouple Probe
Hard Carry Case
