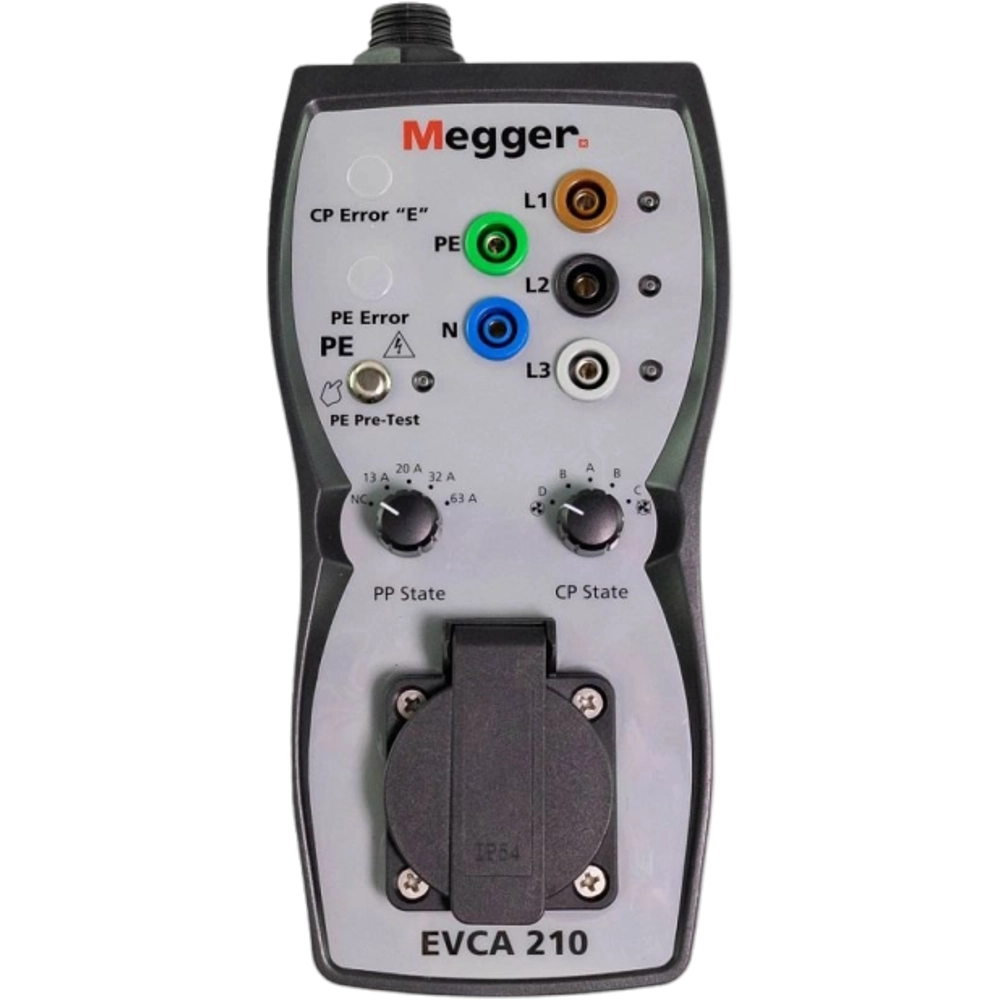

Megger 1012-732 EVCA210 UK Charge-Point Adaptor for EV
Model # 1012-732Key Features
?
Question about this product?
Features
- Testing adaptor for Mode 3 Electric Vehicle charge points (AC)
- EVSE tester capable of testing single and three phase EV charging points
- Single phase system - Input voltage up to 250V
- Three phase system - Input voltage up to 430V
- Input frequency of 50/60Hz

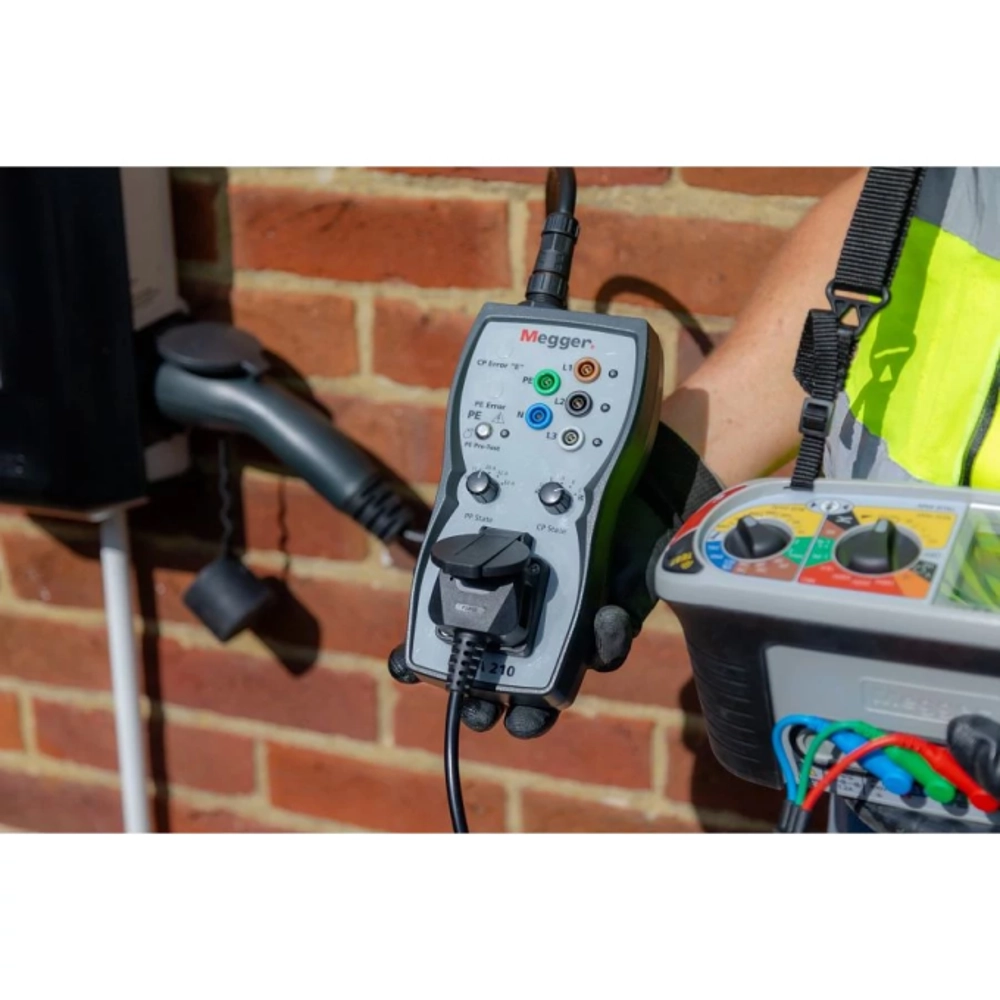

- Simulates the connection an Electric Vehicle to charging point
- PE pre-test function
- Button for CP Error “E” & PE Error (Earth Fault) simulation
- Rotary dial provides PP State or CP state simulation
- Suitable for an array of appliances with Type 2 & Type 1 charging plugs included
- 4mm front mounted connection ports (L1, L2, L3, N and PE)
- Two 4mm ports for connection to an oscilloscope
- Lightweight & compact design
Technical Information
- Input Voltage (Single Phase)250V
- Input Voltage (Three Phase)430V
- PE Pre-TestYes – Push button
- CP Error “E” simulationPush button
- PP SimulationNC, 13 A, 20 A, 32 A, 63 A
- CP StatesA, B, C, D
- CP Error “E”Push button
- Measurement CategoryCAT II 300V
Items Included
- Megger EVCA210-UK Electric Vehicle Charge Point Adaptor
- Type 1 Charging Plug
- Type 2 Charging Plug
- 2x Connection Cables
- 600mV to 750VEVCA210 Carry Case
- 600mV to 1000VInstruction Manual
