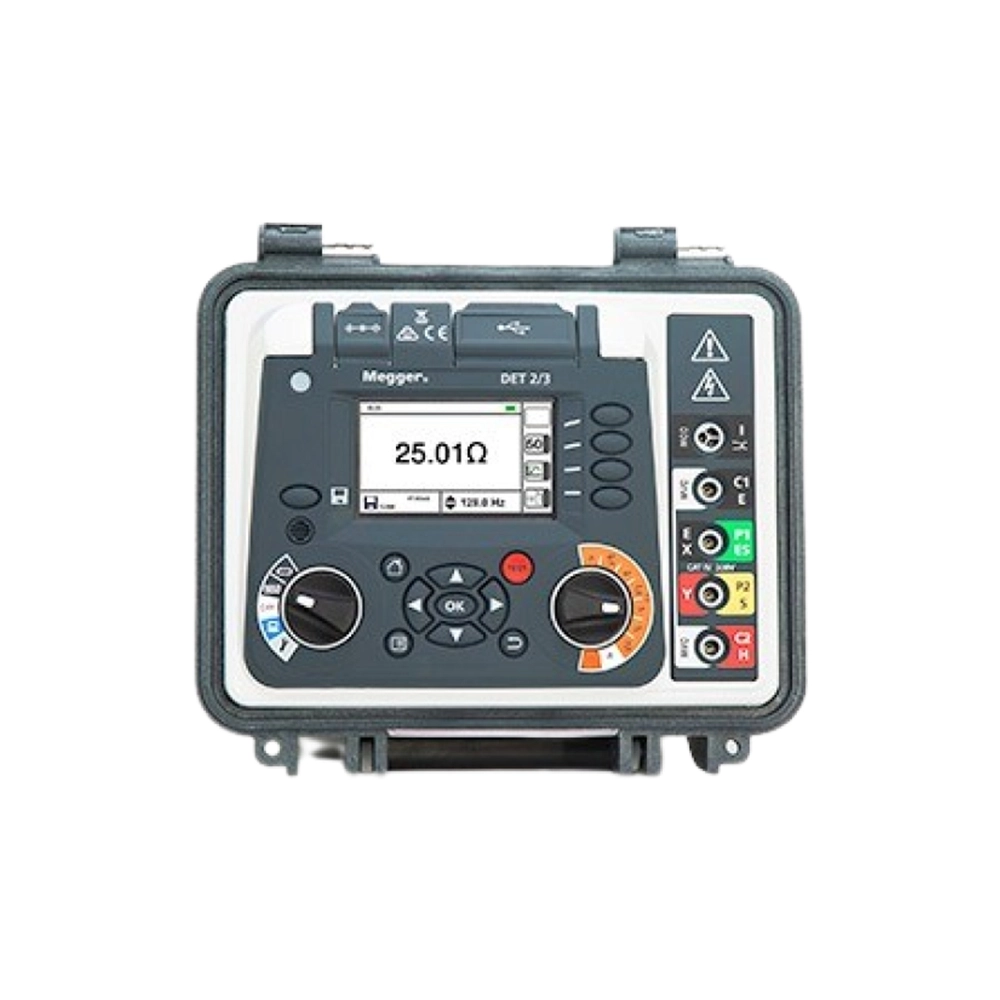

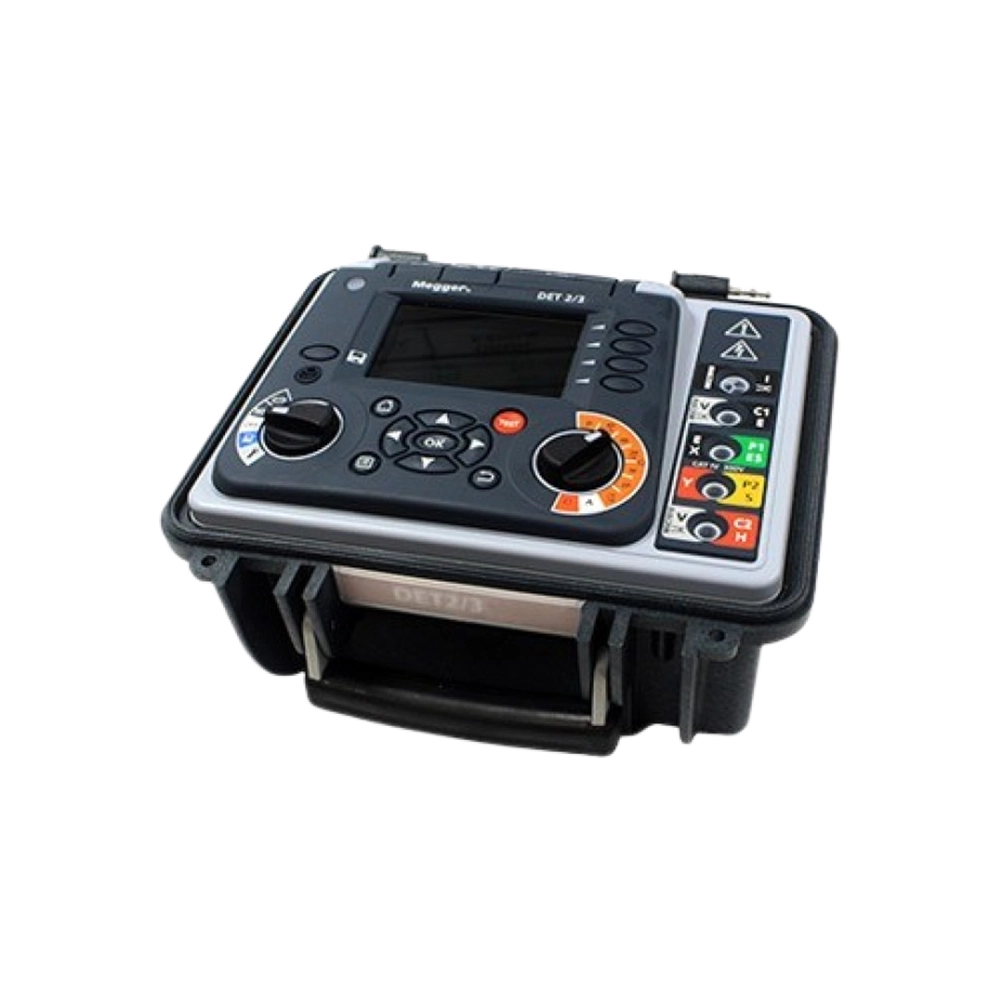

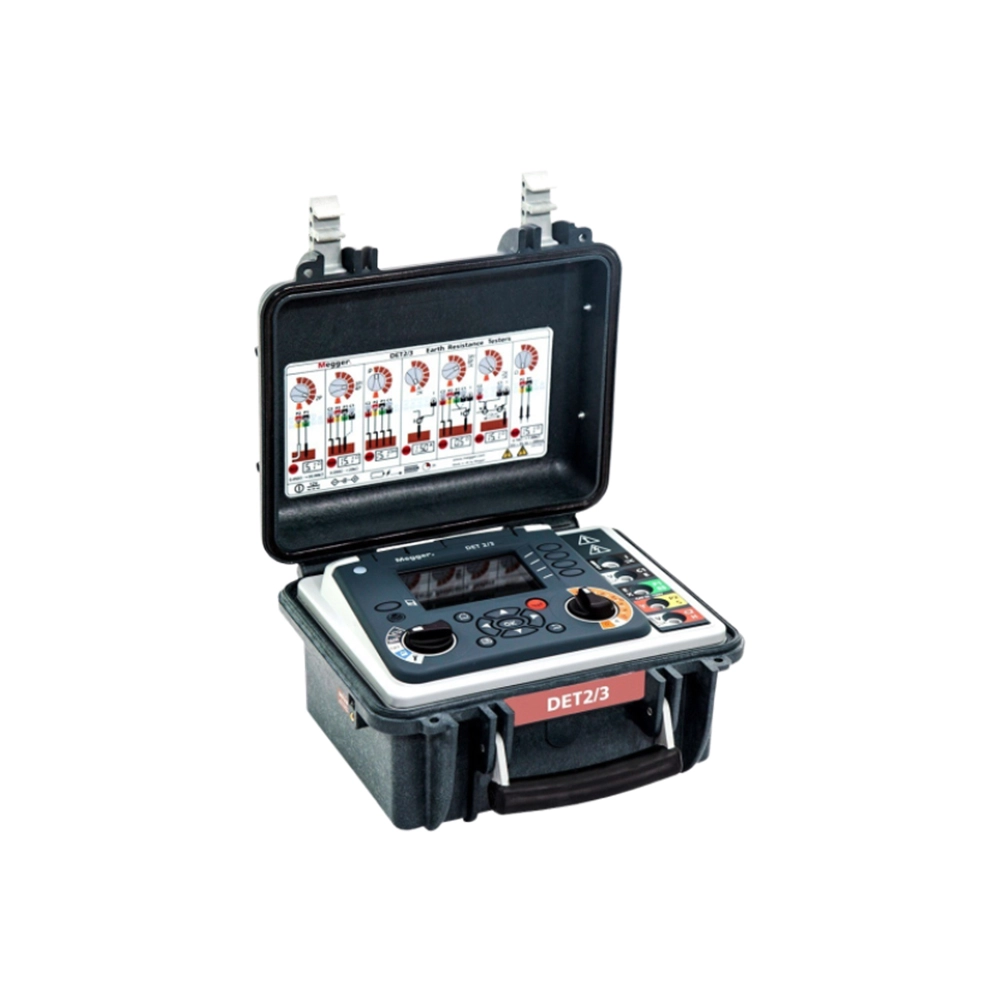

Megger 1008-947 DET2/3 Earth Tester, 0.001 Ohm to 20 kOhm
Model # 1008-947Key Features
?
Question about this product?
Features
- High resolution of 1 mΩ, ideal for large earth systems
- Versatile tests modes
- High accuracy for earth/ground electrode grid and soil resistivity tests
- Rechargeable battery power that can last all day with a fast re-charge (up to 10 hours)
- Robust instrument with IP65 protection
- Automatic test frequency selection, with filters and high current features
- Diagnostic trace display
- Data storage
- Large colour display that shows numeric and graphical results
Technical Information
- Resistance Range0.001 Ω to 20.00 kΩ auto range
- DisplayFour digit display
- Resistance Accuracy at 23 °C±0.5% of reading ±2 digits
- 3P±10 mΩ
- 2P±20 mΩ
- Resistance Test current50 mA max
- Continuity0.01 Ω to 1 kΩ (3 digits)
- Continuity Test Current12 V, 205 mA
- Storage temperature-20 to 60 °C
- Measurement ratingCAT IV 300 V
- Power supplyInternal Li-ion battery or external 12-18 V, 65 W, DC supply
- Battery lifeUp to 10 hrs use
Items Included
- MCC1010 and MVC1010
- Cable reels with spike
- Continuity test cables and clips
- Accessories bag
