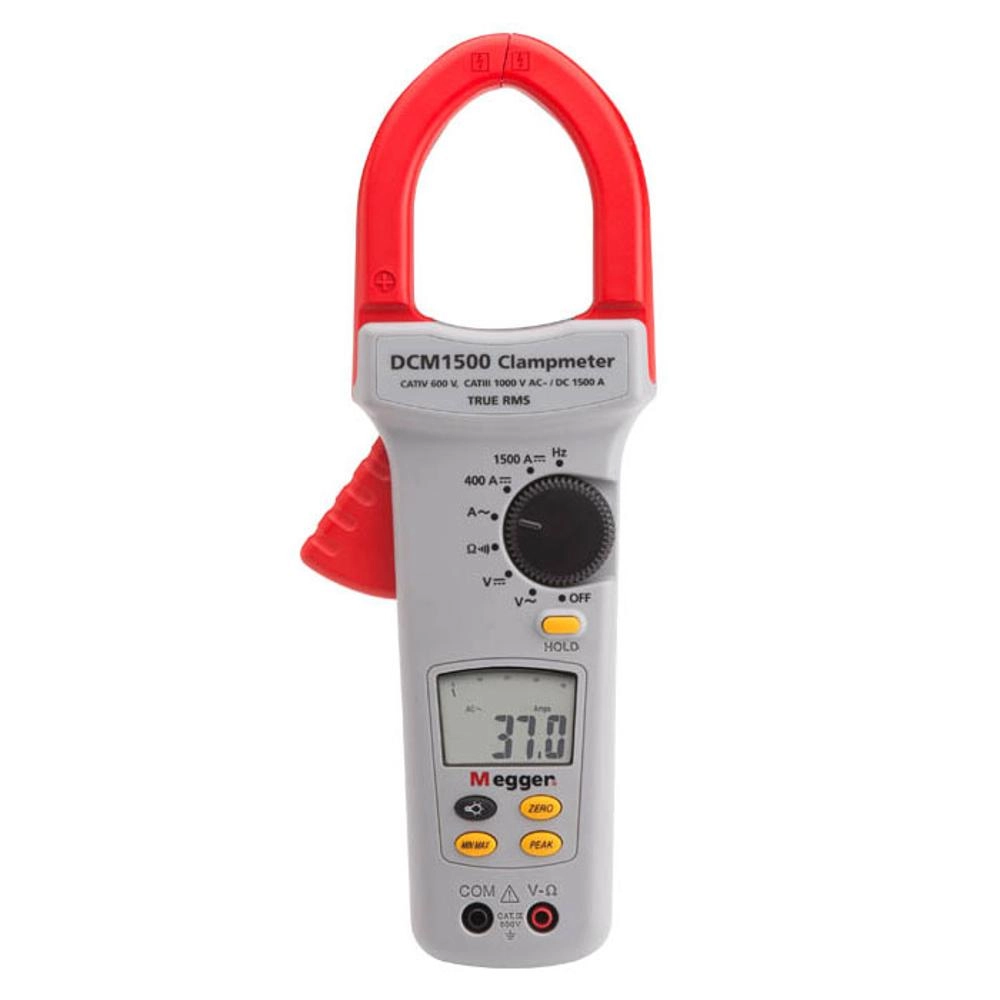

Megger 1005-572 DCM1500 Power Clamp Meter, 1500A, 51mm Jaw, 750V, 400Ω, CAT IV 600V
Model # 1005-572Key Features
?
Question about this product?
Features
- DC and AC current up to 1500 A
- True RMS measurement for greater accuracy
- Large jaw size safely assists with uninsulated conductor measurements
- 750 VAC and 1000 VDC
- Resistance, continuity, and frequency
- Peak, min/max, and data-hold functions
Technical Information
- AC Voltage750V
- AC Current1500A
- Jaw Size40mm
- DC Voltage1000V
- DC Current1000A
- Resistance100kΩ
- Capacitance4 µF – 4000 µF
- Safety RatingCAT IV 600V
- Battery1 x PP3 MN1604 6LR61 alkaline cell
- Dimensions105 x 275 x 48 mm
- Weight524 g (with batteries)
Items Included
- DCM 1500 Clamp Meter
- Battery
- Pouch
- Testleads Red and Black
