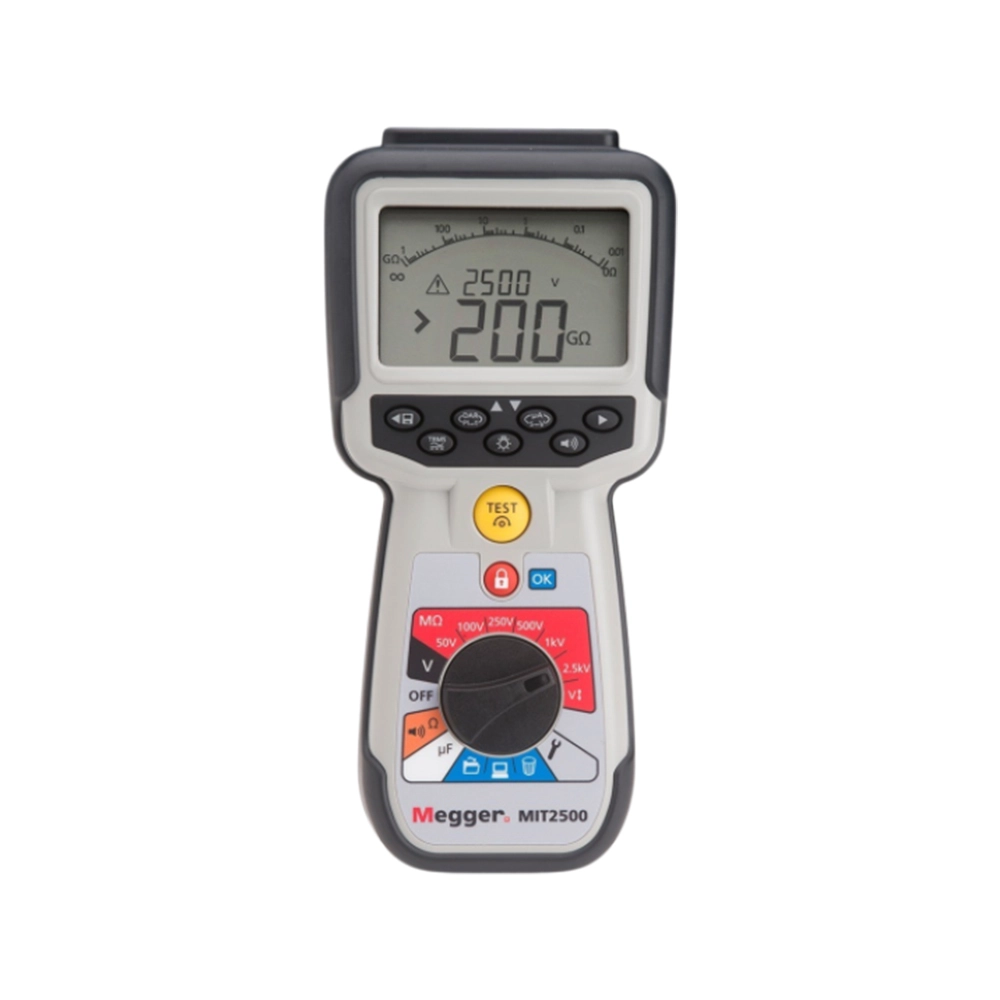

Megger 1004-745 MIT2500 2.5kV High voltage insulation and continuity tester
Model # 1004-745Key Features
?
Question about this product?
Features
- Insulation testing up to 2.5 kV and 200 GO range in a handheld instrument
- Guard terminal for high resistance accuracy
- Adjustable insulation test voltage from 50 V to 2500 V
- Stabilised insulation test voltage
- Rechargeable options for mains and car charging
- Single range, faster continuity testing from 0.01 O to 1 MO
- Polarisation Index (PI) and Dielectric Absorption Ratio (DAR)
- CAT IV 600 V applications
Technical Information
- Test Voltages 50V, 100V, 250V, 500V, 1000V, 2500V
- Variable Test Voltage 50V to 999V (1V steps), 1000V to 2500V (10V steps)
- Insulation Resistance Range Up to 200 GO
- Continuity Test Range 0.01 O to 1 MO
- Continuity Test Current 200 mA or 20 mA
- Voltage Measurement Range (AC/DC) 0 to 600 V TRMS
- Capacitance Measurement Range 0.1 nF to 10 µF
- Frequency Measurement Range 15 Hz to 400 Hz
- Data Storage >1000 test results
- Data Download Bluetooth® Class II
- Guard Terminal Yes
- Input Impedance 250 kO
- Display Analog arc with dual digital readout
- Power Supply 6 x 1.5V AA batteries or NiMH rechargeable batteries
- Battery Life 3000 insulation tests at 1000V with 5 sec ON / 55 sec OFF duty cycle
- Dimensions 228mm x 108mm x 63mm
- Weight 815g (1 lb 13 oz)
- Safety Rating CAT IV 600V
- Ingress Protection IP54
- Operating Temperature -10°C to +55°C
- Storage Temperature -25°C to +70°C
- Altitude Up to 2000m
- Fuse 2 x 500 mA (FF) 1000V, 32 x 6mm ceramic fuse
Items Included
- 2.5 kV rated test leads fitted with medium size croc clips (1 x Red, 1 x Black, 1 x Blue)
- 1 kV rated standard test leads with probes and clips (1 x Red, 1 x Black)
