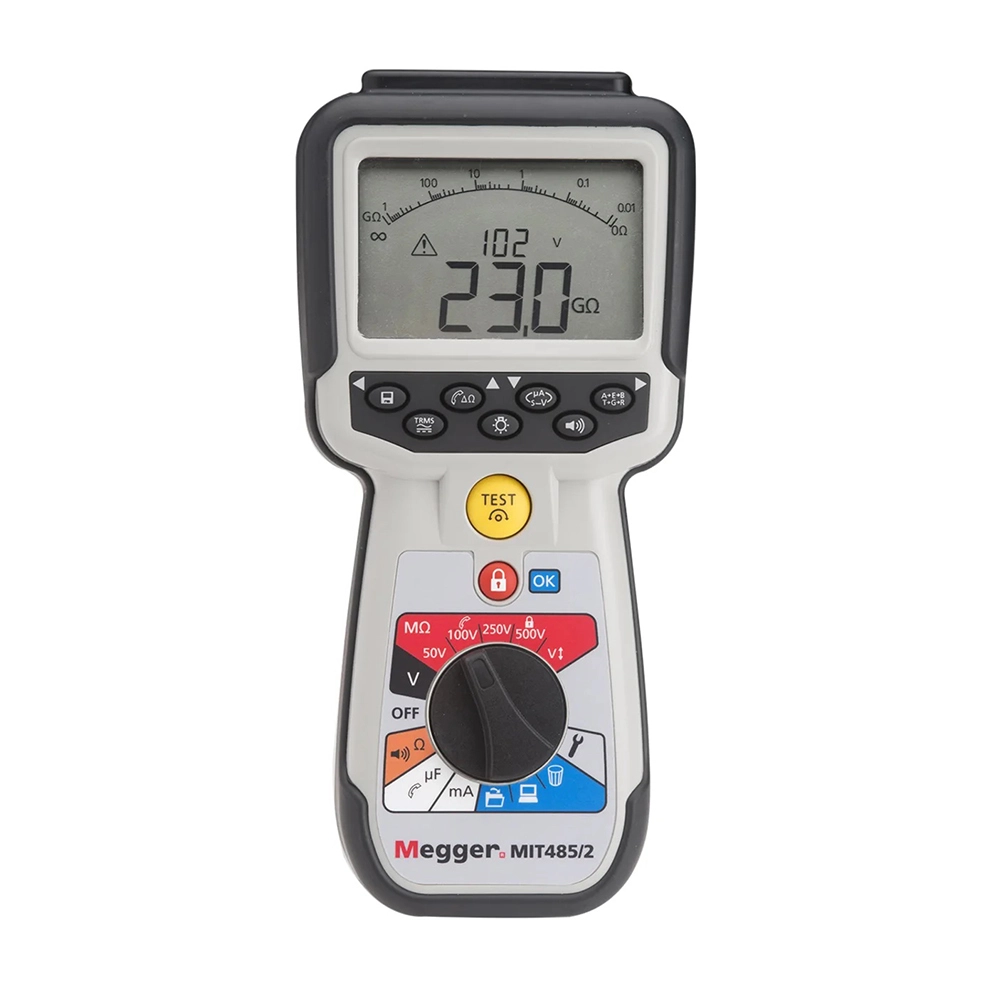

Megger 1004-742 MIT485/2 Insulation Continuity Tester For Telecommunication and Cable Testing

Model #   1004-742

?

Question about this product?

Speak to an expert

Features

  • Performs insulation testing up to 500 V and 100 Gigaohms range
  • Bluetooth capability allows for easy download of test results to PC
  • Three-wire connection for A, B and E (Tip, Ring and Ground) test leads
  • Gated access to 500 V operation helps prevent accidental damage
  • Insulation test voltage adjustable from 10 V to 500 V
  • Differential measurement capability between two consecutive continuity tests
  • Single range, faster continuity testing from 0.01 ohm to 1 Megaohm
  • Stabilized test voltage remains within specification throughout full test range
  • Display provides combination of analog arc and dual digital readout
  • On-board memory stores up to 1000 test results
  • Detects and prevents testing on live circuits above user-selectable thresholds
  • Measures voltage up to 600 V TRMS AC and DC
  • Offers rechargeable options for mains and car charging
  • Suitable for use on at CAT IV 600V applications
  • Display indicates PASS or VAIL depending on threshold voltage
  • Rated to IP54

Technical Information

  • Test Voltages 50V, 100V, 250V, 500V
  • Variable Test Voltage 10V to 500V
  • Insulation Resistance Range Up to 100 GΩ
  • Continuity Test Range 0.01 O to 1 MΩ
  • Continuity Test Current 200 mA or 20 mA
  • Voltage Measurement Range (AC/DC) 0 to 600V TRMS
  • Capacitance Measurement Range 0.1 nF to 10 µF
  • Data Storage >1000 test results
  • Data Download Bluetooth®
  • Input Impedance 10 MΩ
  • Display Analog arc with dual digital display
  • Power Supply 6 x 1.5V AA batteries or NiMH rechargeable batteries
  • Battery Life 3000 insulation tests at 500V with a 5 sec ON / 55 sec OFF duty cycle
  • Dimensions 228mm x 108mm x 63mm
  • Weight 800g (1.8 lbs)
  • Safety Rating CAT IV 600V
  • Ingress Protection IP54
  • Operating Temperature -10°C to +55°C
  • Storage Temperature -25°C to +70°C
  • Altitude Up to 2000m
  • Fuse 2 x 500 mA (FF) 1000V, 32 x 6mm ceramic

Items Included

  • 1 - MIT485/2 Insulation and Continuity Tester (1004-742)
  • 1 - Set of 1 kV Silicone Test Leads with Probes and Clips (Red, Black)
  • 1 - SP5 Switched Probe (1007-757)
  • 1 - Owners Information CD
  • 6 - AA Alkaline Batteries (1002-753)
  • 1 - Hard Carrying Case (2006-649)
