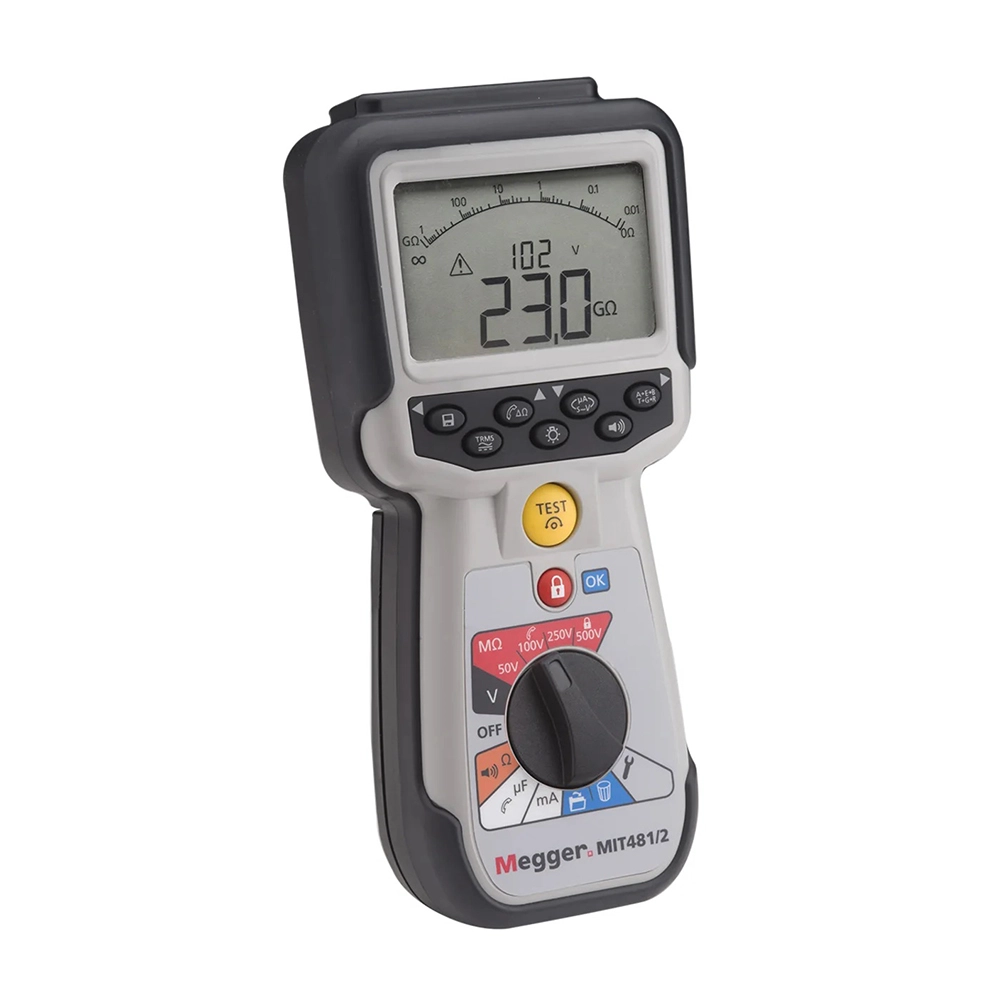

Megger 1004-741 MIT481/2 - Analog Digital Insulation Continuity Tester For Telecommunication and Cable Testing
Model # 1004-741Key Features
?
Question about this product?
Features
- Insulation testing up to 500 V and 100 GΩ range in a hand held instrument
- 3 wire connection for A, B and E (Tip, Ring and Earth) connection
- Gated access to 500 V to prevent accidental damage
- Rechargeable options for mains and car charging
- Single range, faster continuity testing from 0.01Ω to 1 MΩ
- Differential measurement capability
- Stabilized insulation test voltage
- 600 V Trms AC and DC voltage measurement
- CAT IV 600 V and IP 54
Technical Information
- IR Test Voltage 50V, 100V, 250V, 500V
- Maximum Insulation Resistance100 G Ohms
- Automated Test ResultsDielectric Absorption Ratio, Dielectric Discharge, Leakage Current, Other, Step Voltage
- Power SourceBattery
- Minimum Insulation Resistance0.01 Ohms (0.00000000001 G Ohms)
- Variable Incremental VoltageYes
- Display (Megohmmeter)Digital
- Continuity TestYes
- Live Circuit Voltage DetectionYes
- TimerYes
- CAT RatingIV
- CAT Voltage600 V
Items Included
- Hard carry case
- Red/Green/Black test lead set
- 6 AA (LR6) batteries fitted
- Warranty card
- Factory (non-NIST) Calibration Certificate
- Owners CD manual
- Quick start guide
- SP5 remote switched probe
