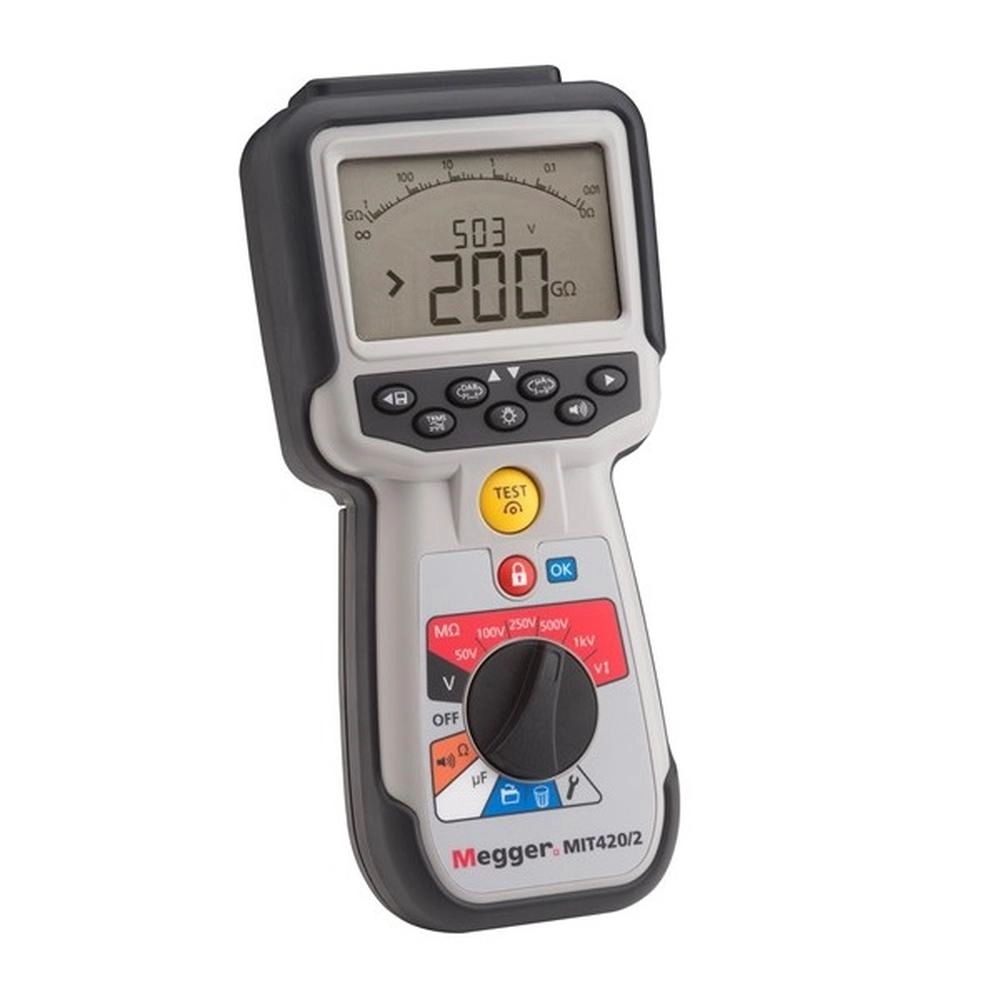

Megger 1004-739 MIT420/2 Insulation & Continuity Tester 50/100/250/500/1000V + 600 V CAT IV + PI & DAR, variable voltage, storage/recall
Model # 1004-739Key Features
?
Question about this product?
Features
- Insulation testing up to 1000 V and 200 GΩ range
- Stabilised insulation test voltage
- Single range, faster continuity testing from 0.01 Ω to 1 MΩ
- 600 V T RMS AC and DC voltage measurement
- Live circuit detection and protection
- CAT IV 600 V and IP54
Technical Information
- Test Voltage50V,100V,250V,500V,1000V
- Variable Test Voltage10V to 1000V
- Continuity Testing Range0.01 Ω to 1.0 MΩ
- Voltage Measurement600V (AC/DC)
- Capacitance Measurement0.1 nF – 10 μF
- Safety RatingCAT IV 600 V / CAT III 1000 V
- IP RatingIP54
- Power Supply6 x 1.5 V cells type IEC LR6 (AA, MN1500, HP7, AM3 R6HP) Alkaline 6 x 1.2 V NiMH rechargeable cells may be used

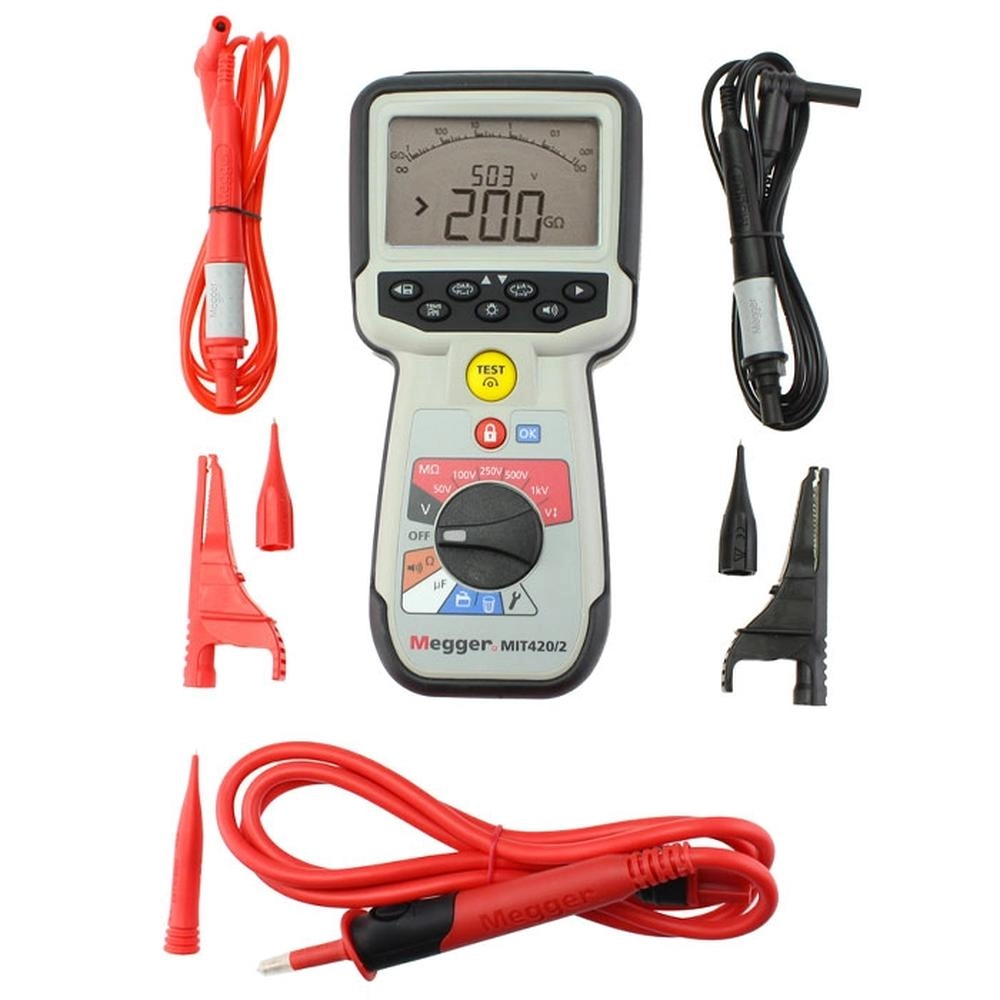

Items Included
- Red/Black Silicone test leads with Probes + Clips
- Batteries 6 x AA Alkaline
- Hard carry case
- Calibration certificate
- 600mV to 750VSP5 remote switch probe
