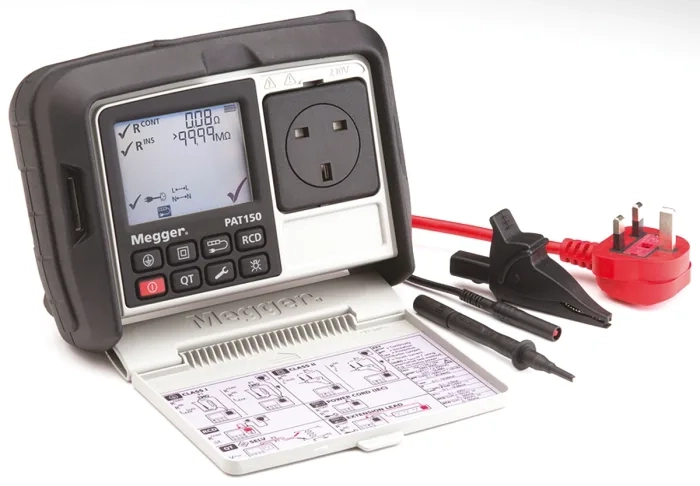

Megger 1003-428 PAT150R-UK Rechargeable Battery Powered Portable Appliance Tester
Model # 1003-428Key Features
?
Question about this product?
Features
- Simple operational interface
- Storage of completed forms with retrieval by certificate type or client
- PDF export facility for safe and simple distribution
- Multi-page Schedules for testing larger installations
- Drop down fields to speed up certificate completion
Technical Information
- Continuity Test Voltage +4V DC
- –0 % /+10 % (open circuit)
- Continuity Test CurrentBi-directional +200mA -0% + 50mA (into 2Ω load)
- Continuity Test Accuracy Resistance
- Continuity Test Resolution 10 mΩ
- Continuity Test Display Range 0.01 to 19.99Ω
- Insulation Test 250V DC –0 % /+25 % open circuit, 500V DC –0 % /+25 % open circuit, ≥ 500V 0% DC across 0.5 MΩ load
- Insulation Test Accuracy ±3% ±10 digits (0 to 19.99 MΩ)
- Insulation Test Display Range 0.10 MΩ to 99.99 MΩ
- Substitute Leakage Test Voltage < 50 V AC
- Substitute Leakage Test Display Range 0.10 to 19.99mA
- Portable RCD Display Range 0 to 200ms (1 x I) 0 to 40ms (5 x I)
- SELV Test Voltage 0 to 300 V AC
- Battery Type Supply voltage 12 V DC (Alkaline AA LR6), 9.6 V DC (NiMH AA LR6)
- Weight 2975g
- Dimensions 456mm x 178mm x 89mm

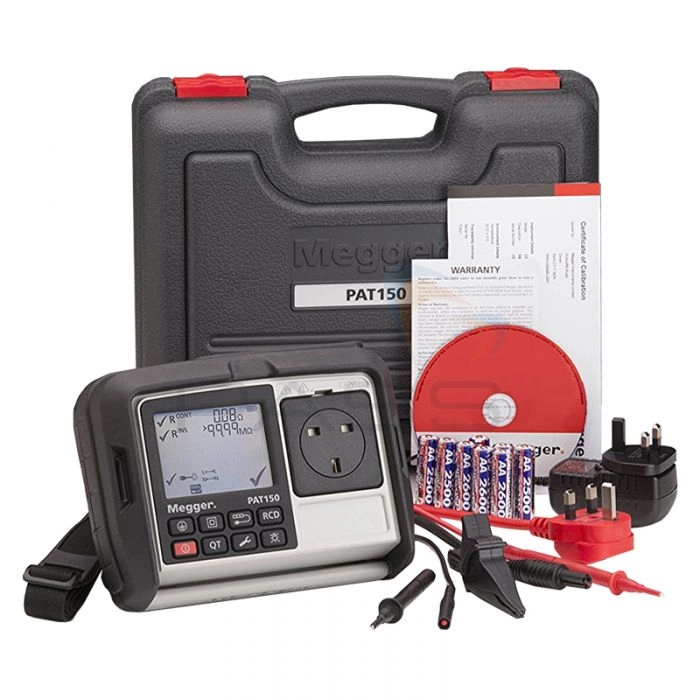

Items Included
- 2 x 4mm plug lead probe + croc clip
- Extension lead adaptor
- AC charger adaptor
- Mains supply cord
- carry case.
