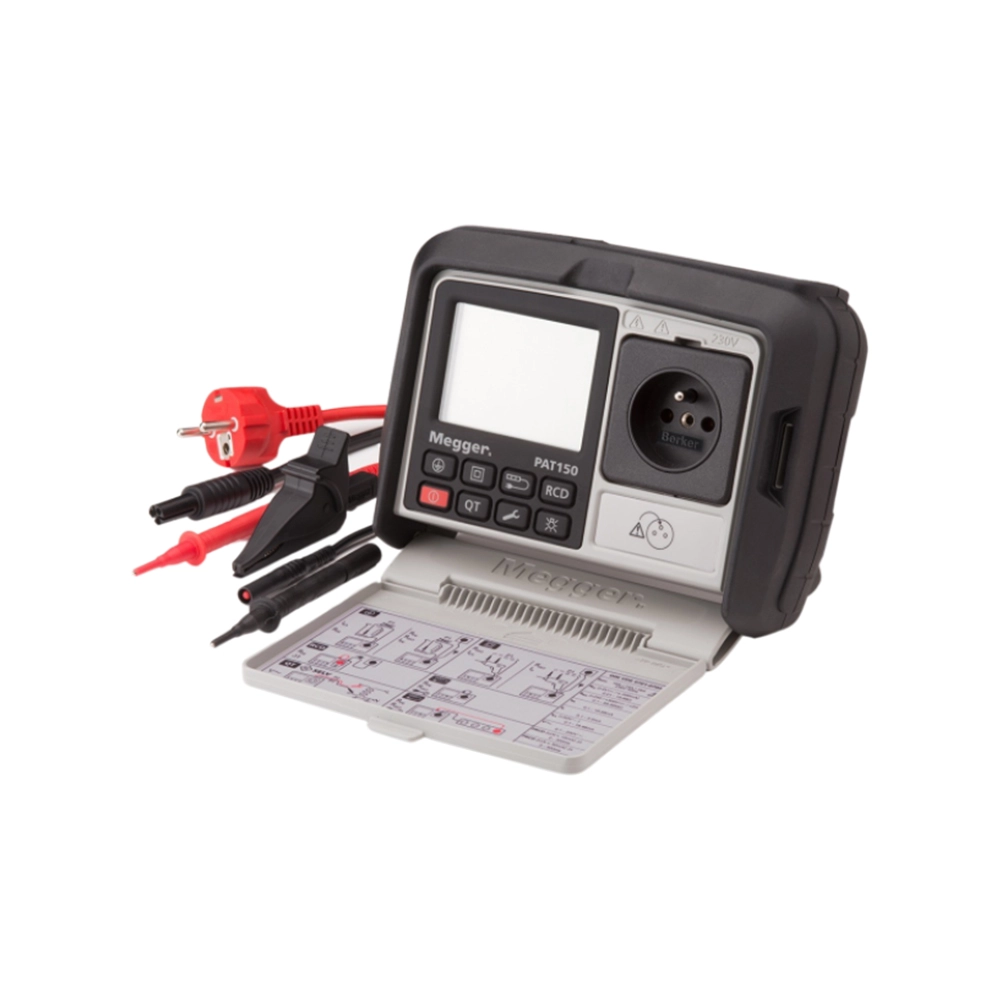

Megger 1003-064 PAT150-UK Advanced battery powered Portable Appliance Tester
Model # 1003-064Key Features
?
Question about this product?
Features
- Additional tests available for testing portable RCDs (PRCDs) of 10 mA and 30 mA
- Separate tests for continuity, insulation, mains powered leakage testing and SELV measurements can be made using the Quick Test (QT) button
- Test group pass limits and test duration can be configured by the user
- Bond lead resistance can be nulled to reduce measurement errors
- Live circuit measurement is available for testing the mains supply and socket polarity or electrical circuit voltage to 300 V ac
- Can be used for testing fixed appliances
Technical Information
- Continuity Test Voltage+4 V DC (open circuit)
- Continuity Test Current200 mA (bi-directional)
- Continuity Test Accuracy±5% ± 3 digits (0 to 19.99 Ω)
- Continuity Test Resolution10 mΩ
- Continuity Test Display Range0.01 to 19.99 Ω
- Insulation Test Voltage250 V DC / 500 V DC
- Insulation Test Accuracy±3% ± 10 digits (0 to 19.99 MΩ)
- Insulation Test Display Range0.10 MΩ to 99.99 MΩ
- Substitute Leakage Test Voltage< 50 V AC
- Substitute Leakage Test Display Range0.10 to 19.99 mA
- Portable RCD Testing10 mA and 30 mA
- Live Circuit Measurementup to 300 V AC
- SELV Test Voltageup to 50 V AC
- Battery Type8 x AA Alkaline/NiMH cells
- Weight1300 g
- Dimensions203 mm x 148 mm x 78 mm
Items Included
- Extension Lead Adaptor
- Mains Plug Test Lead
- Continuity/Earth Bond Lead (Part No: 1001-233)
- SELV/Mains Voltage Test Lead (Red) (Part No: 1005-077)
- Carry Case (Part No: 1005-075)
