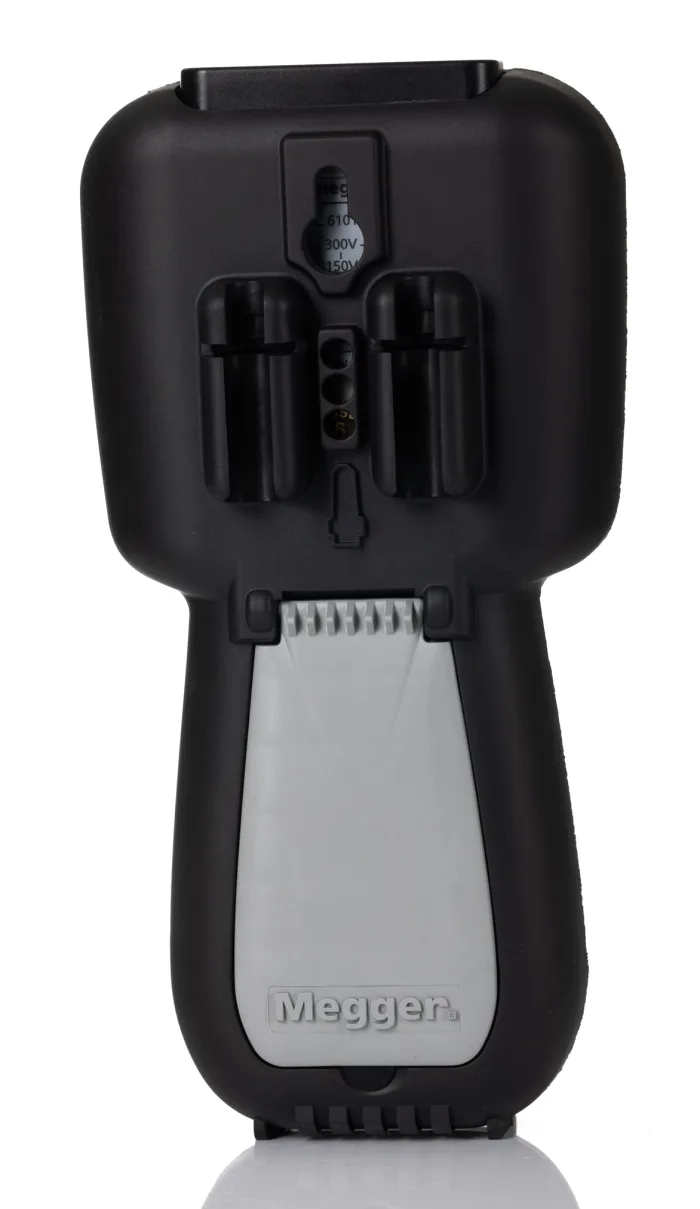

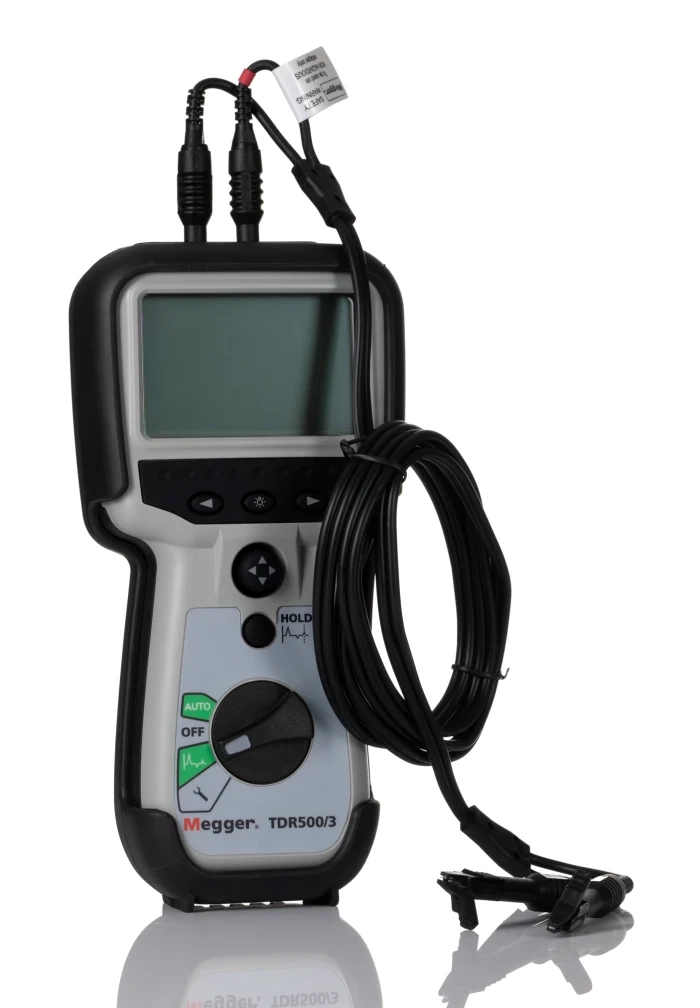

Megger 1002-227 TDR500/3 Handheld Time Domain Reflectometers, Ultra Fast Pulse with Auto Setup, Use with All Metallic Cable Pairs unto 5 km Maximum Range
Model # 1002-227Key Features
?
Question about this product?
Features
- Adjustable speed factor of movement of impulses in the cable from 0.2 - 0.99
- Auto set up for instant use
- cursor x1
- HOLD function
- Ultra fast pulse for near end fault identification
Technical Information
- Range 10 m, 25 m, 100 m, 250 m, 1000 m, 2500 m, 5000 m
- Accuracy ±1% of range ± pixel at 0.67 VF
- Connectors Two 4 mm-safety terminals
- Operating temperature range and humidity -15 ºC to +50 ºC (5 ºF to 122 ºF)
- Storage temperature range and humidity -20 ºC to 70 ºC (-4 ºF to 158 ºF
- Battery Five LR6 (AA) type batteries, Manganese alkali or nickel metal-hydride cells
- Dimensions 230x48x115mm
- Weight 600g
Items Included
- Hard case

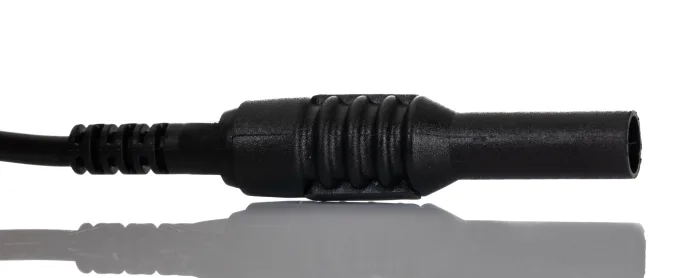

- Miniature clip test lead set (1 pair)
- Rubber boot with stand
- User guide CD
