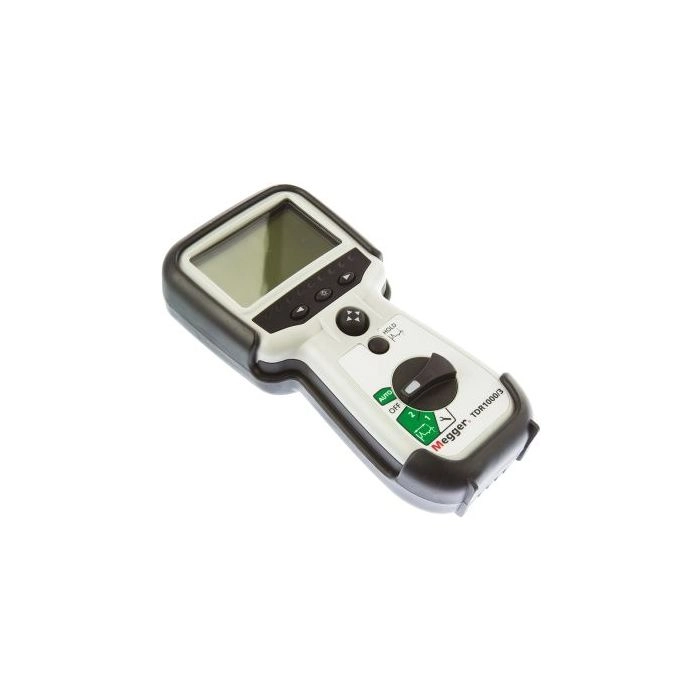

Megger 1001-789 TDR1000/3P Handheld Time Domain Reflectometers, Ultra Fast Pulse with Auto Setup, Retractable Sheath Fused Test Lead (1 pair)
Model # 1001-789Key Features
?
Question about this product?
Features
- Simple operation
- AUTO set up for instant use
- Ultra fast pulse for near end fault identification
- Trace HOLD feature to allow comparison between cables
- IP54 rating offers real life working
- Designed for use on all metallic cable pairs
- Backlit graphics monochrome LCD (256 x 128)
- Adjustable display contrast
- Resolution to 0.1 m
- For use on Telecom TNV-3 circuit, or 150 V CAT IV power circuits
- Power blocking filter not required
- Auto selected output impedance (between 25, 50, 75 and 100 Ω)
- 2 ns pulse for near end fault location
- AUTO option selecting gain and pulse for each range
- Display distance in metres or feet
- Uses five AA (LR6) primary cells
Technical Information
- Range 10 m, 25 m, 100 m, 250 m, 1000 m, 2500 m, 5000 m
- Accuracy ±1% of range ± pixel at 0.67 VF
- Connectors Two 4 mm-safety terminals
- Operating temperature range and humidity -15 ºC to +50 ºC (5 ºF to 122 ºF)
- Storage temperature range and humidity -20 ºC to 70 ºC (-4 ºF to 158 ºF
- Battery Five LR6 (AA) type batteries, Manganese alkali or nickel metal-hydride cells
- Dimensions 48x115x230mm
- Weight 600g
Items Included
- Megger TDR1000/3P Single Channel Cable
- Fault Locator
- Hard Carry Case
- Fused Test Lead Set
- User Guide CD
