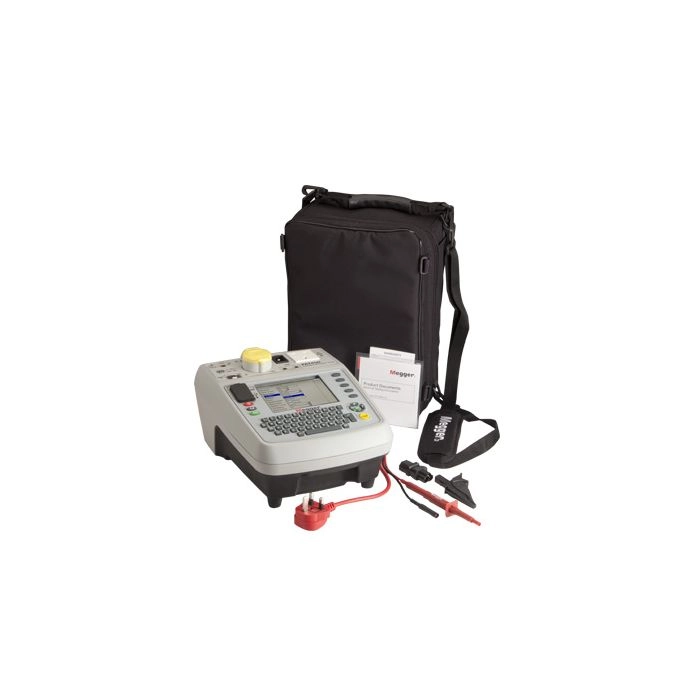

Megger 1000-755 PAT450-UK Portable Appliance Tester, Flash Test Voltage 1.5 kV AC Nominal for Class 1 and 3 KV AC Nominal for Class 2
Model # 1000-755Key Features
?
Question about this product?
Features
- Dual 230V and 110V operation and testing for industrial
- Simple operational interface
- Storage of completed forms with retrieval by certificate type or client
- PDF export facility for safe and simple distribution
- Multi-page Schedules for testing larger installations
- Drop down fields to speed up certificate completion
Technical Information
- Continuity Test Voltage 4.0 V DC -0% +10%
- Continuity Test Current 200 mA -0% +10% ±5 mA
- Continuity Test Resolution 10 mΩ (1 to 19.99 Ω)
- Continuity Test Display Range 0 to 19.99 Ω
- Insulation Test Voltage 250 V DC –0%/+25% open circuit, 500 V DC –0%/+25% open circuit, (500 V DC across 0.5MΩ)
- Insulation Test Display Range 0 to 99.99 MΩ
- Substitute Leakage Test Voltage 40 V AC ±10%
- Substitute Leakage Test Display Range 0 to 19.99 mA
- Weight 5kg
- Dimensions 180x320x255mm
Items Included
- User Guide CD
- Extension lead adaptor
- Quick-start guide
- Carry case and document wallet
- IEC C6 to C13 plug adaptor
- Bond/continuity test lead with croc-clip and probe
- High Voltage probe(PAT450 only)
