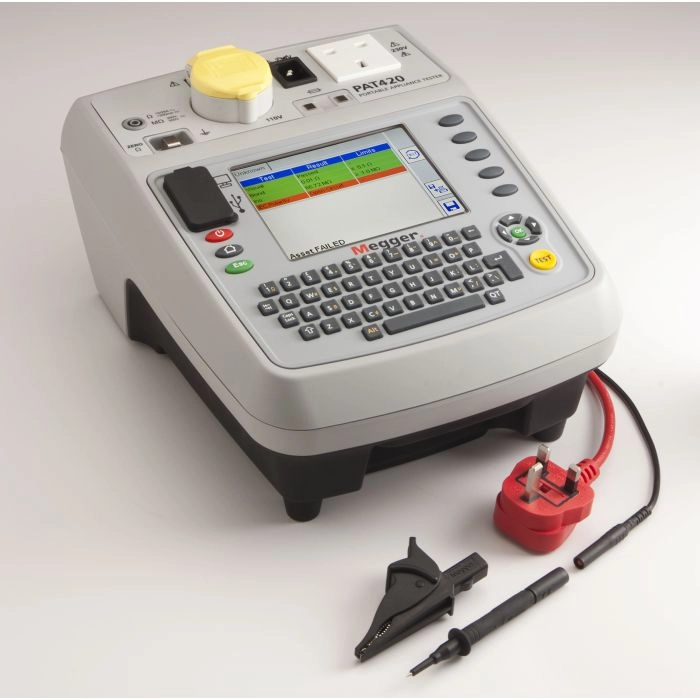

Megger 1000-752 PAT420-UK Portable Appliance Testers, for 230 V and 110 V Appliance Testing
Model # 1000-752Key Features
?
Question about this product?
Features
- Automatic and manual testing offers in-the-field flexibility
- Display is backlit for convenient monitoring in low-light environments
- Five function keys allow quick configuration
- Fast restart where you left off enables rapid testing
- RCD tester to check that breakers would rise to the challenge in the event of faulty conditions
Technical Information
- Continuity Test Voltage 4.0 V DC -0% +10%
- Continuity Test Current 200 mA -0% +10% ±5 mA
- Continuity Test Resolution 10 mΩ (1 to 19.99 Ω)
- Continuity Test Display Range 0 to 19.99 Ω
- Insulation Test Voltage 250 V DC –0%/+25% open circuit, 500 V DC –0%/+25% open circuit, (500 V DC across 0.5MΩ)
- Insulation Test Display Range 0 to 99.99 MΩ
- Substitute Leakage Test Voltage 40 V AC ±10%
- Substitute Leakage Test Display Range 0 to 19.99 mA
- Weight 4.4kg
- Dimensions 180x320x255mm

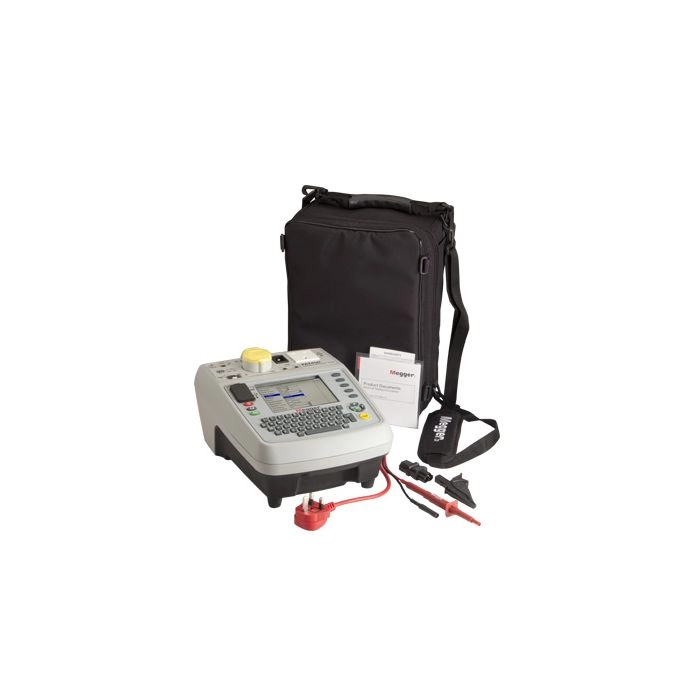

Items Included
- User Guide CD
- Extension lead adaptor
- Quick-start guide
- Carry case and document wallet
- IEC C6 to C13 plug adaptor
- Bond/continuity test lead with croc-clip and probe
- High Voltage probe(PAT420 only)
