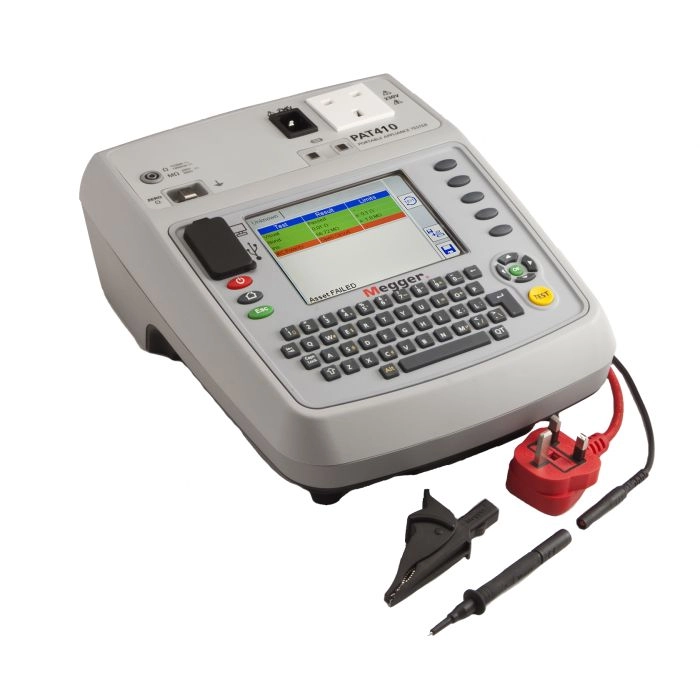

Megger 1000-745 PAT410-UK Portable Appliance Testers, 200 mA Bond Test with High Duty Cycle for Repetitive Testing
Model # 1000-745Key Features
?
Question about this product?
Features
- Vast on-board memory to keep you the job longer
- Continuous operation, no need to stop and wait for the tester to cool down
- Instant re-start as you move from room to room testing
- Soft keys to speed you through the testing process
- Full PAT testing including RCD testing
- Most productive tester in its class
Technical Information
- Continuity Test Voltage 4.0 V DC -0% +10%
- Continuity Test Current 200 mA -0% +10% ±5 mA
- Continuity Test Resolution 10 mΩ (1 to 19.99 Ω)
- Continuity Test Display Range 0 to 19.99 Ω
- Insulation Test Voltage 250 V DC –0%/+25% open circuit 500 V DC –0%/+25% open circuit
- Insulation Test Display Range 0 to 99.99 MΩ
- Substitute Leakage Test Voltage 40 V AC ±10%
- Substitute Leakage Test Display Range 0 to 19.99 mA
- Weight 2.7kg
- Dimensions 210x390x280mm

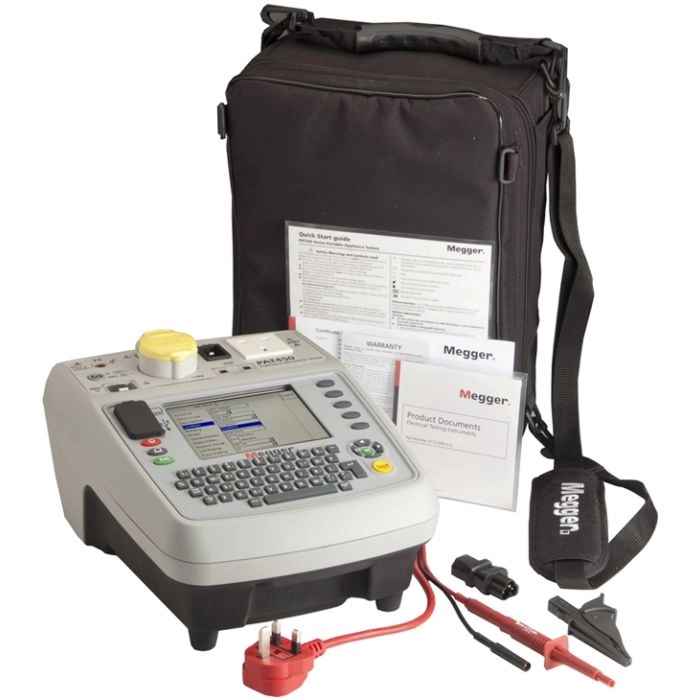

Items Included
- User Guide CD
- Extension lead adaptor
- Quick-start guide
- Carry case and document wallet
- IEC C6 to C13 plug adaptor
- Bond/continuity test lead with croc-clip and probe
- High Voltage probe(PAT410 only)
