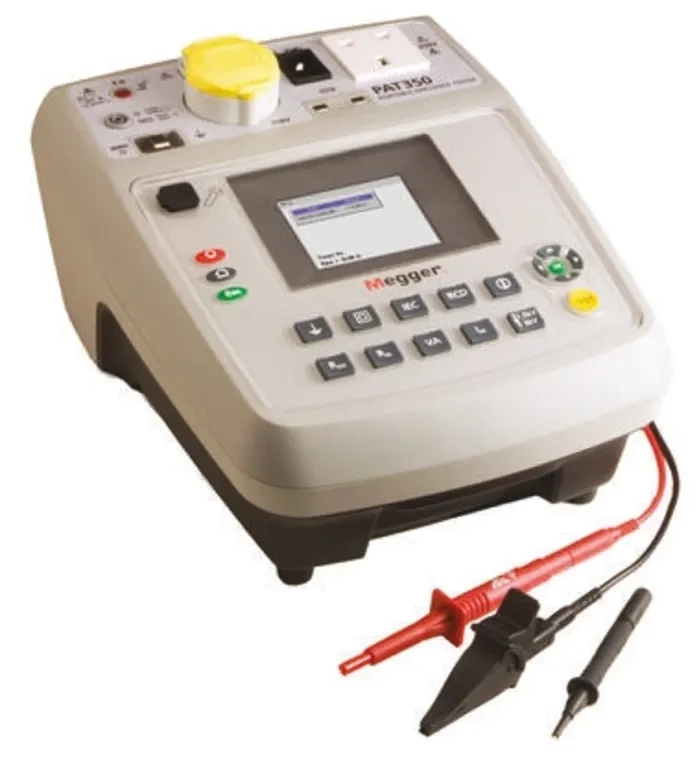

Megger 1000-743 PAT350-UK Portable Appliance Testing, Capable of Testing 110 V and 230 V Appliances and Flash Test
Model # 1000-743Key Features
?
Question about this product?
Features
- Automatic and Manual testing options
- High resolution back lit colour display with all the test details displayed before, during and after testing
- Fast re-start after temporary disconnection (i.e. between test locations)
- 200mA; 10A and 26A bond testing
- 250V and 500V insulation testing (suitable for surge-protected extension leads)
- Testing of Class I, Class II, IEC leads extension leads and portable RCDs
- Test results are marked as pass or fail, and compared to the pass/fail limits for each test indicating a good or marginal result
- Built-in fuse checker
- Differential, touch and substitute leakage test options
- Electrical supply, 99V AC to 253V AC 50Hz and 60Hz
- Safety rating: IEC 61010 and IEC 61557 CAT II 300V to Earth
Technical Information
- Continuity Test Voltage 4.0 V DC -0% +10% (open circuit)
- Continuity Test Current 200 mA -0% +10% ±5 mA (into 2 Ω load)
- Continuity Test Resolution 10 mΩ (1 to 19.99 Ω)
- Continuity Test Display Range 0 to 19.99 Ω
- Insulation Test Voltage 250 V DC –0%/+25% open circuit, 500 V DC –0%/+25% open circuit, (500 V DC across 0.5MΩ)
- Insulation Test Display Range 0 to 99.99 MΩ
- Substitute Leakage Test Voltage 40 V AC ±10%
- Substitute Leakage Test Display Range 0 to 19.99 mA
- Weight 5.0 kg
- Dimensions 175x320x250mm

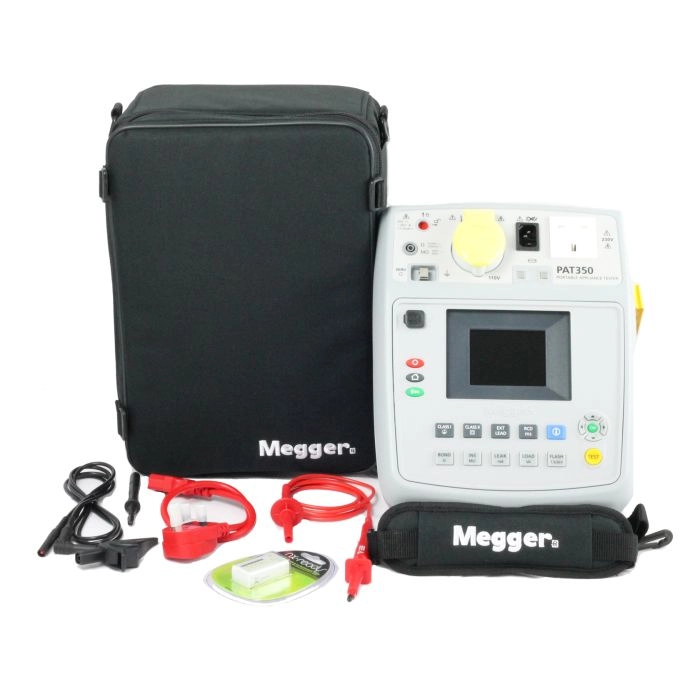

Items Included
- Carry case
- Continuity/earth bond lead 2000-870
- Extension lead adaptor BS1363 2000-881
- Flash test lead 5310-401
