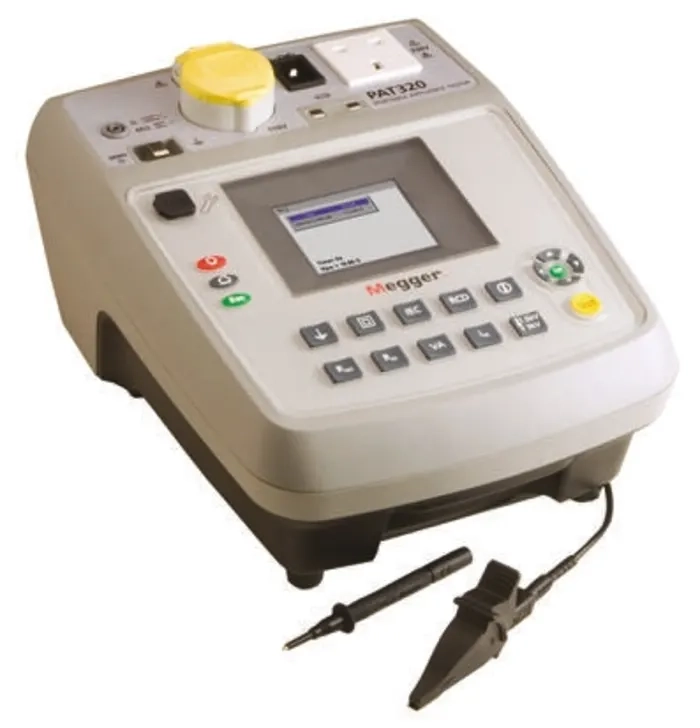

Megger 1000-740 PAT320-UK Portable Appliance Testing, Capable of Testing 110 V and 230 V Appliances
Model # 1000-740Key Features
?
Question about this product?
Features
- Automatic and Manual testing options
- High resolution back lit colour display with all the test details displayed before, during and after testing
- Fast re-start after temporary disconnection (i.e. between test locations)
- 200mA; 10A and 26A bond testing
- 250V and 500V insulation testing (suitable for surge-protected extension leads)
- Testing of Class I, Class II, IEC leads extension leads and portable RCDs
- Push-button operation for test groups or individual test functions
- Built-in fuse checker
- Differential, touch and substitute leakage test options
- Electrical supply, 99V AC to 253V AC 50Hz and 60Hz
- Safety rating: IEC 61010 and IEC 61557 CAT II 300V to Earth
Technical Information
- Continuity Test Voltage 4.0 V d.c. -0% +10% (open circuit)
- Continuity Test Current 200 mA -0% +10% ±5 mA (into 2 Ω load)
- Continuity Test Accuracy ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits 0.5 to .99 Ω)
- Continuity Test Resolution 10 mΩ (1 to 19.99 Ω)
- Continuity Test Display Range 0.01 to 19.99 Ω
- Insulation Test Voltage 250 V DC / 500 V DC
- Insulation Test Accuracy ±3% ± 10 digits (0 to 19.99 MΩ)
- Insulation Test Display Range 0.10 MΩ to 99.99 MΩ
- Substitute Leakage Test Voltage < 50 V AC
- Substitute Leakage Test Display Range 0.10 to 19.99 mA
- Portable RCD Testing Voltage Nominal mains
- Weight 4.5 kg
- Dimensions175x320x250mm

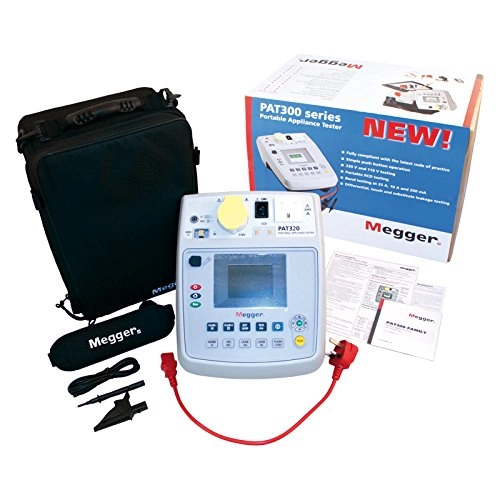

Items Included
- Carrying Case
- Earth Bond Test Lead
- IEC Lead
- Manual on CD-ROM
- Megger PAT320 PAT Tester
- Operating Instructions
- Probe and Crocodile Clip
