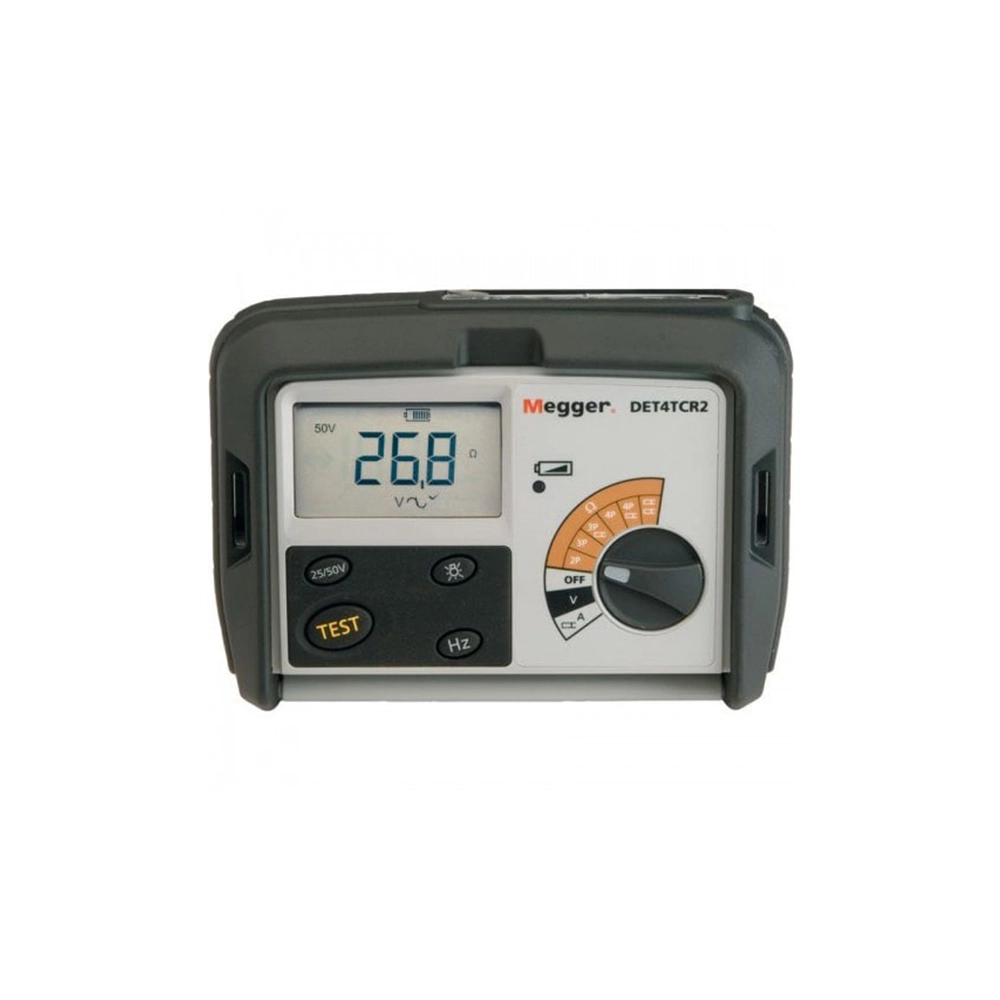

Megger 1000-366 DET4TCR2 Rechargeable Earth/Ground Resistance Tester with Clamps
Model # 1000-366Key Features
?
Question about this product?
Features
- Rechargeable
- Extended test range to 200 kO
- User selectable test frequency and voltage
- 2, 3 and 4 point testing at the turn of a switch
- Attached Rod Technique (ART) enabled
Technical Information
- Type4 Pole
- Display (3 Pole Testers)Digital
- Ground Resistance Range200 K Ohms
- Operating Frequency128 Hz
- Measuring Current4.5 mA
- Measuring Voltage50 V
- Measuring Frequency128 Hz
- Soil ResistivityYes
- Stakeless CapabilityYes
- CAT RatingIV
- Optional Ground Kit IncludedNo
- Auto RangingNo
- Unique FeaturesRechargeable battery powered 4-terminal tester with selectable test frequencies, greater measurement sensitivity and attached rod technique and stakeless measurement capability
- IP RatingIP54
- Data LoggingNo
- Power Supply Voltage120V 50/60 Hz
- Dimensions13.5x39x35
- Weight1200
Items Included
- Blow molded carrying case
- IClam
- VClamp
- Test leads and stakes
- (8) 1.5V AA NiMH Rechargeable Batteries
- Factory Calibration certificate
- External ac/dc adaptor
- 4 right angle terminal adaptors
