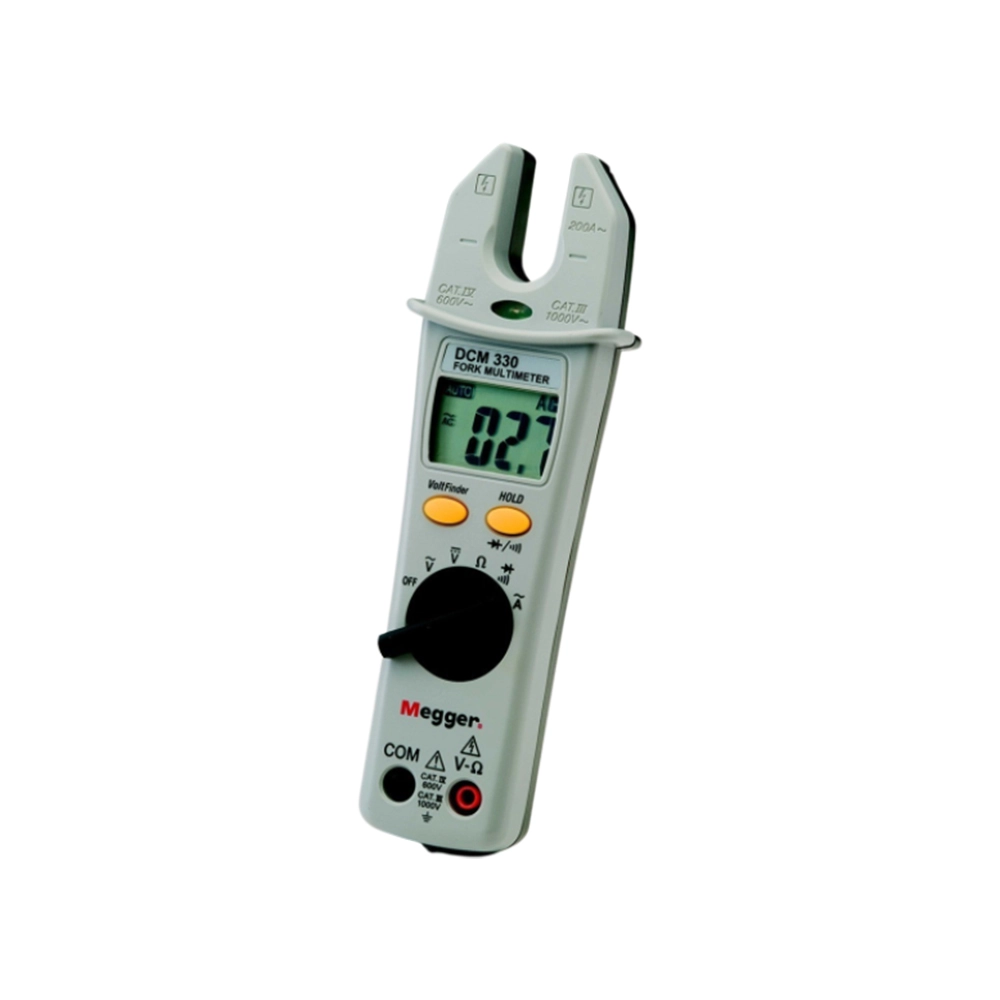

Megger 1000-219 DCM330 Clamp Meter,200A AC, 1000V CAT-III, 20 Mohm

Model # 1000-219

Key Features

Brand: Megger
Model: 1000-219
Warranty: 1 Year

Qty:

Qty:

?

Question about this product?

Speak to an expert

Features

3 1/2 digit large scale LCD readout
1.5 times / sec
“OL” is displayed for “Ω” functions, shows the real value for “A” and “V” function
Approximately 10 minutes after power on
Low battery indicator
R03 UM4 AAA 1.5V x 2 batteries Battery life : ALKALINE 250 hours
Not suitable for use with recharge- able cells

Technical Information

Display parameters3,5 digit (1999)
Sampling1,5x/s
DC voltage measuring range200V/1kV
DC voltage measuring accuracy±(1% + 2 digit)
AC voltage measuring range200V/1kV
AC voltage measuring accuracy±(1.5% + 5 digit)
Bandwidth for AC voltage measurements50...500Hz
AC current measuring range(1) indirect measurement)0...200A
AC current measuring accuracy±(3% + 3 digit)
Bandwidth for AC current measurements50...60Hz
Resistance measuring range200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Resistance measuring accuracy±(1%+2 digit)
Diode test1mV
Continuity testacoustic indication, <50Ω
Weight with battery280g
Conform to the normCAT III 1000V CAT IV 600V EN 61010
Dimensions (W x H x D)54x193x31mm

Items Included

Carrying case
