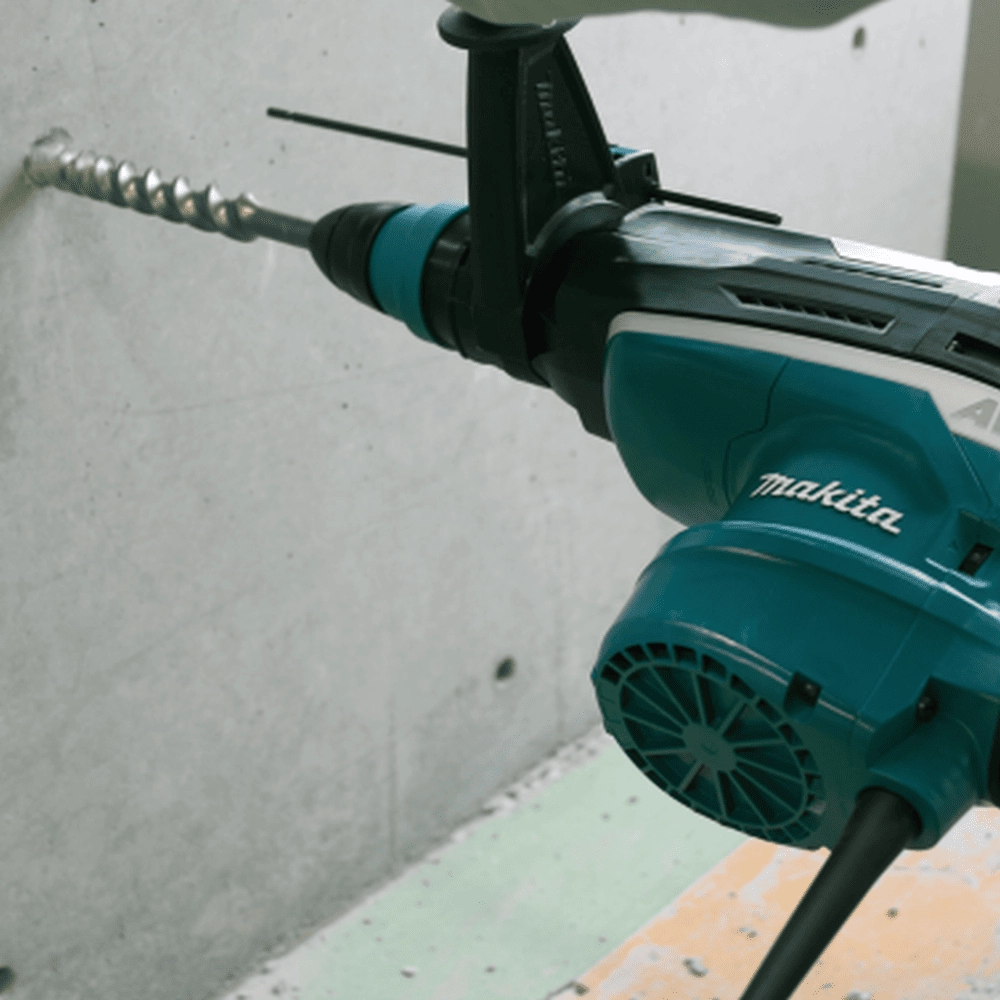

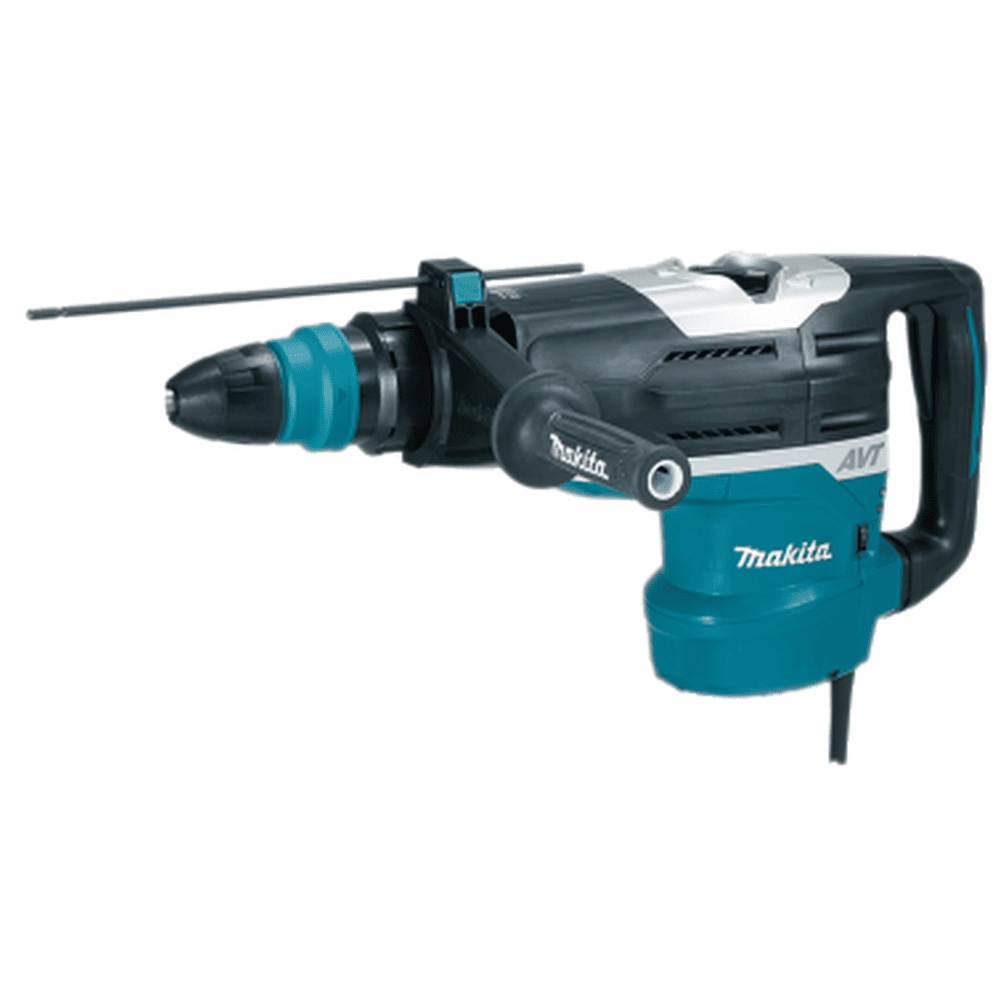

Makita HR5212C 220V Electric Rotary Hammer 52mm, 1510W, AVT, SDS Max, 12kg, 21.0 Joules

Model #   HR5212C

?

Question about this product?

Speak to an expert

Features

  • Powerful 15 AMP motor delivers 19 J of impact energy to handle the most demanding applications
  • Advanced Anti-Vibration Technology (AVT®) is a synchronized, three-component system that more effectively reduces vibration resulting in a low 5m/s2
  • Advanced AVT® includes an integrated damper spring at the base of the impact bolt engineered to absorb impact vibrations from the drill bit
  • Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
  • Soft start suppresses start-up reaction for more precision and better accuracy
  • "Soft no-load" function automatically reduces the speed of the motor when idling to help increase tool life and performance
  • Variable speed control dial enables user to match the speed to the application for greater versatility
  • Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
  • Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
  • L.E.D. power light indicates switch failure or cord damage
  • Automatic brush cut-off protects commutator from damage for longer tool life
  • 2-mode operation for "Chipping Only" or "Hammering with Rotation"
  • Lock-on or trigger activation in "Chipping Only" mode with a push button start/stop control for more convenient operation
  • 24 bit angle settings allow the bit to be set at different positions for operating convenience
  • One-touch sliding chuck for quick bit changes

Technical Information

  • Bit TypeSDS Max
  • Power SourceCorded
  • Voltage220V
  • Maximum Output Power1510 W
  • No Load Speed150 - 310 RPM
  • Impact1100 - 2250 min⁻¹
  • Max. Drilling Diameter In Concrete52 mm
  • Optimum Drilling Diameter Range In Concrete25 - 40 mm
  • Impact Energy20.0 J
  • Drilling Diameter With Tct Core Bit160 mm
  • Power Supply Cord5.0 m
  • Sound Power Level (LWA)109 dB(A)
  • Sound Pressure Level (LPa)98 dB(A)
  • Noise Uncertainty (K Factor)3 dB(A)
  • Vibration Level (3 Axes), Impact Drilling9.9 m/s²
  • Vibrationchiselling7.2 m/s²
  • Vibration Level (3 Axes), Chiselling With D-type Side Handle7.5 m/s²
  • Vibration Uncertainty (K Factor)1.5 m/s²
  • Weight Without Cable (EPTA-procedure 01/2003)11.9 kg
  • Product Dimensions (L x W x H)599 x 140 x 287 mm
