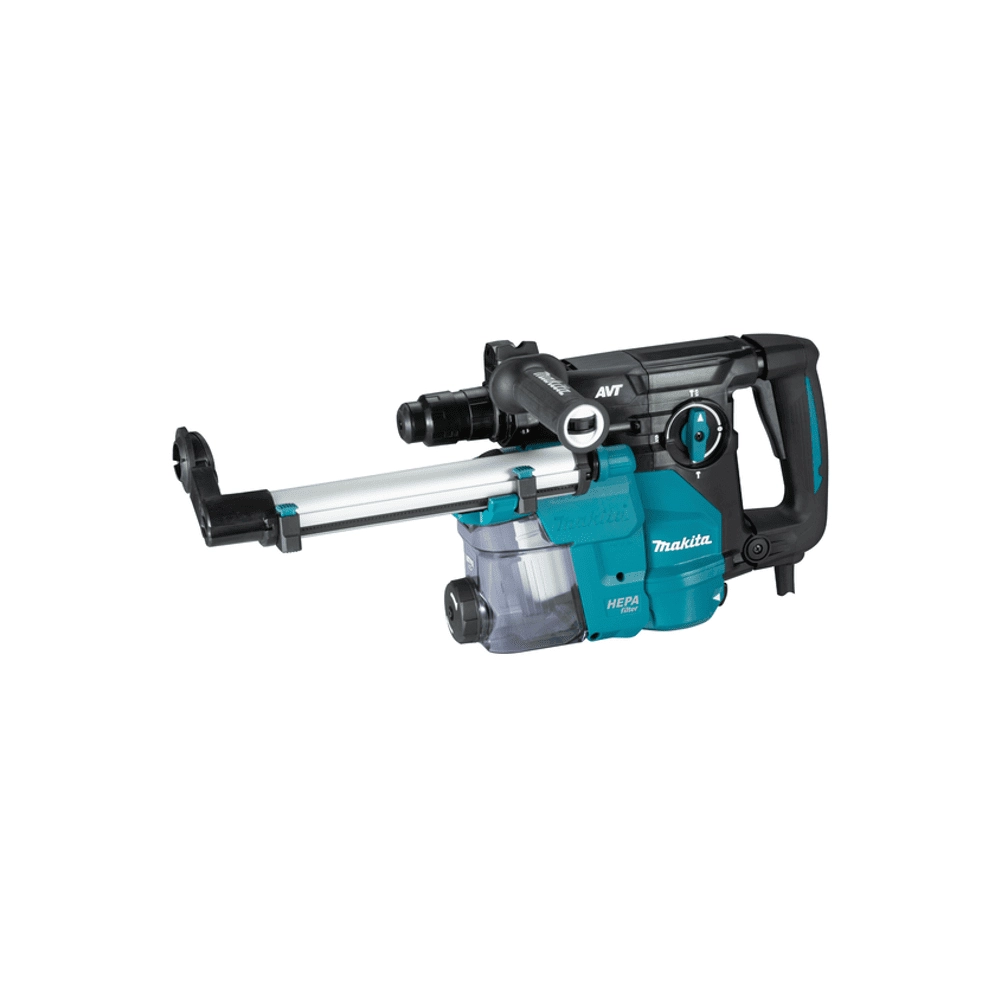

Makita HR3012FCWJ 220V Electric Rotary Hammer 30mm, 1050W, SDS-Plus Shank, AVT, Quick Change Chuck, Variable Speed, 4.7 Kg, with Dust Collecting System (DX11), 3.9 Joules

Model #   HR3012FCWJ

?

Question about this product?

Speak to an expert

Features

  • Hammer combined with three functions: drilling, punching, chiseling.
  • Quick-change system with SDS-plus chuck for concrete drill bits and automatic chuck with carbide jaws for wood or metal drill bits.
  • Supplied with the DX11 extraction module, for dust-free drilling of holes up to 190 mm deep.
  • Variable speed control with maximum speed preselection and constant speed under load.
  • Equipped with the AVT system (Anti-Vibration Technology) ensuring a minimum vibration rate.
  • Built-in LED lighting function for easier work in dark places.
  • Connecting rod impact system in an all-metal housing for rock-solid durability.
  • Torque limiter protecting the motor as well as the user in the event of a blockage.
  • Ergonomic vibration-absorbing handle for added comfort.
  • 360° adjustable rubberized side handle with depth stop.

Technical Information

  • Bit TypeSDS Plus
  • Power SourceCorded
  • Voltage220V
  • Maximum Output Power1050 W
  • No Load Speed0 - 840 RPM
  • Impact0 - 4500 min⁻¹
  • Max. Drilling Diameter In Wood32 mm
  • Max. Drilling Diameter In Concrete30 mm
  • Max. Drilling Diameter In Steel13 mm
  • Optimum Drilling Diameter Range In Concrete8 - 16 mm
  • Impact Energy3.9 J
  • Power Supply Cord2.5 m
  • Sound Power Level (LWA)102 dB(A)
  • Sound Pressure Level (LPa)91 dB(A)
  • Noise Uncertainty (K Factor)3 dB(A)
  • Vibration Level (3 Axes), Drilling6.0 m/s²
  • Vibration Level (3 Axes), Impact Drilling9.5 m/s²
  • Vibrationchiselling8.2 m/s²
  • Vibration Uncertainty (K Factor)1.5 m/s²
  • Weight Without Cable (EPTA-procedure 01/2003)4.5 - 4.7 kg
  • Product Dimensions (L x W x H)386 x 98 x 242 mm
