Klauke LBOXXEK50ML L-Boxx with 10.8V Electromechanical Crimping Tool (EK50ML), 50mm²
Model # LBOXXEK50MLKey Features
?
Question about this product?
Features
- One-button operating concept for controlling all tool functions
- Automatic retraction after operation completed
- Electronic control with locking function monitors full closing of the dies
- Manual retraction as required
- Motor stall protection
- Ergonomic 2C housing in the Klauke “In-line Design”
- Fastening eye for use with balancer or as fall protection in field applications
- Very low weight and high speed for maximum efficiency
- Powerful drive technology for fatigue proof operations
- Powerful 10.8V Li-Ion battery with charge status display
- LED for work area illumination
- Maintenance display via LED
Technical Information
- Crimping force15kN
- Crimping range0.14-50mm²
- Crimping cycle<1.5s (based on connection material)
- Number of crimps300 (At 10mm² Cu DIN 46234 / per battery charge, approx)
- Battery voltage10.8V
- Battery capacity1.5Ah, Li-Ion
- Battery charging time40min
- Weight including battery0.96kg
- Ambient temperature-10 to 40°C

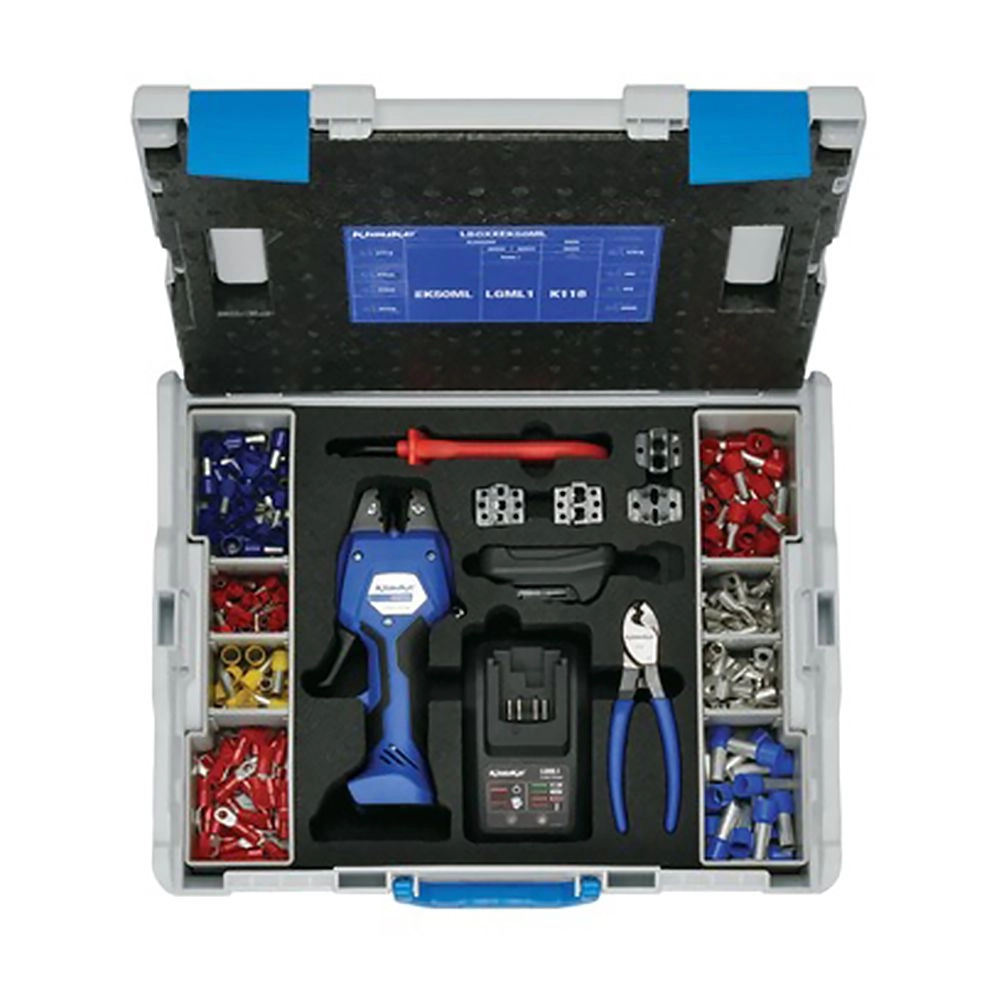

Items Included
- EK50ML–Electromechanical crimping tool 0.14 - 50mm²
- RAML1–10.8V / 1.5Ah, Li-Ion (16.2 Wh) battery
- LGML1–Charger for 10.8V Li-Ion batteries, 230V
- K118–Hand-operated cutting tool for Al and Cu cables to 12mm dia.
- KL645GSK–Cable knife with blade protection, 1000 V
- AE502–Crimping dies AE 50, 10 - 25mm²
- 47612–Insulated Cable end sleeve, 10mm², 22mm
- 47712–Insulated Cable end sleeve, 16mm², 24mm
- 47818–Insulated Cable end sleeve DIN 46228 part 4, 25mm²
- R505–Crimping dies R 50, 16 - 25mm²
- 3R8–Tubular cable lug without inspection hole, 16mm², M8, Cu tin plated
- 4R8–Tubular cable lug without inspection hole, 25mm², M8, Cu tin plated
- AE503–Crimping dies AE 50, 35 - 50mm²
- 47918–Insulated Cable end sleeve DIN 46228 part 4, 35mm²
- 48025–Insulated Cable end sleeve DIN 46228 part 4, 50mm², 40mm long
- IS5072–Crimping dies IS 50, single crimping, 10 - 16mm²
- 652C6–Insulated Solderless terminal M6, 10mm², fork-shaped type
- LBOXX136LFG–L-BOXX with front handle (W/D/H: 442x357x151mm)
