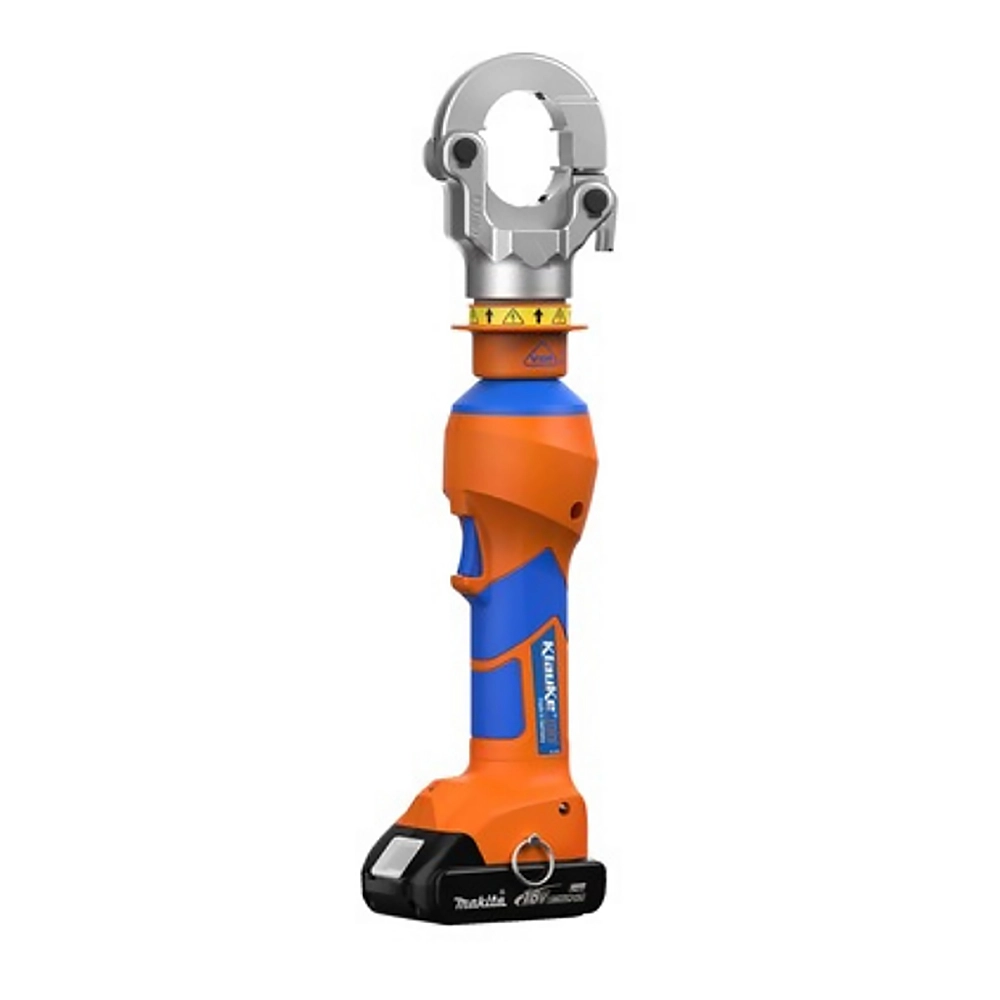

Klauke EKM6022ISM 1000V Insulated Cordless Hydraulic Crimping Tool, 300mm² with Copper Dies (6-300mm²)
Model # EKM6022ISMKey Features
?
Question about this product?
Features
- Insulated and VDE certified up to 1000V for increased safety when working on potentially live parts
- Large crimping range up to 300mm²
- Closed head with bolt interlock, rotatable, flip top style
- Quality assurance via visual and audible signals in case of error
- Simple and safe: one-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- Simple and safe: automatic retraction when operation is complete
- Automatic retract stop (ARS) for positioning control in case of multiple crimps
- Always ready-to-use thanks to battery charge and service display
- All data can be easily read via Bluetooth
Technical Information
- Crimping Force60kN
- Stroke17.5mm
- Crimping Capacity6-300mm²
- Crimping Cycle2s (for ARS) to 5s (depending on crimp cross-section)
- Number of crimps150-200 (At 150mm² Cu DIN, approx)
- Voltage18V
- Battery Capacity1.5Ah
- Battery Charging Time15min.
- Weight Including Battery3.0kg
- Ambient Temperature-10 to 40°C
Items Included
- RAL1–Makita battery 18V / 1.5Ah, Li-Ion
- LGL1–Makita quick-charger for 18V Li-Ion batteries
- L22 Crimping Dies Set, 13-Pieces (6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300mm²)
- KK50IS–Hard plastic carrying case
