Klauke EK60UNVCFMSET 5-In-1 18V Cordless Hydraulic Universal Tool, 6-300mm² with Crimping, Cutting (Cable, Din Rail, Threaded Rod) and Punching Dies Set

Model #   EK60UNVCFMSET

?

Question about this product?

Speak to an expert

Features

  • All data can be easily read via Bluetooth
  • Universal head flip top style, rotatable
  • Simple and safe: One-button operating concept for controlling all tool functions
  • Effortless working due to balanced centre of gravity
  • LED for work area illumination
  • Simple and safe: Automatic retraction after operation completed (crimping or cutting)
  • 2-stage hydraulic system with fast feed and power stroke
  • Always ready-to-use thanks to battery charge and service display
  • One head for crimping, cutting and punching - one tool for all
  • Ideal in the assembly field where all common jobs can be carried out using one tool
  • Fast operations due to 2-stage hydraulics

Technical Information

  • Crimping Force60kN
  • Stroke42mm
  • Crimping Capacity6-300mm²
  • Crimping Cycle3-5s (depending on cross-section)
  • Cutting Capacity40mm Diameter
  • Punching Capacity (round)64mm
  • Punching Capacity (square)92x92mm
  • Voltage18V
  • Battery Capacity4.0Ah
  • Battery Charging Time36min.
  • Weight4.8kg

Items Included

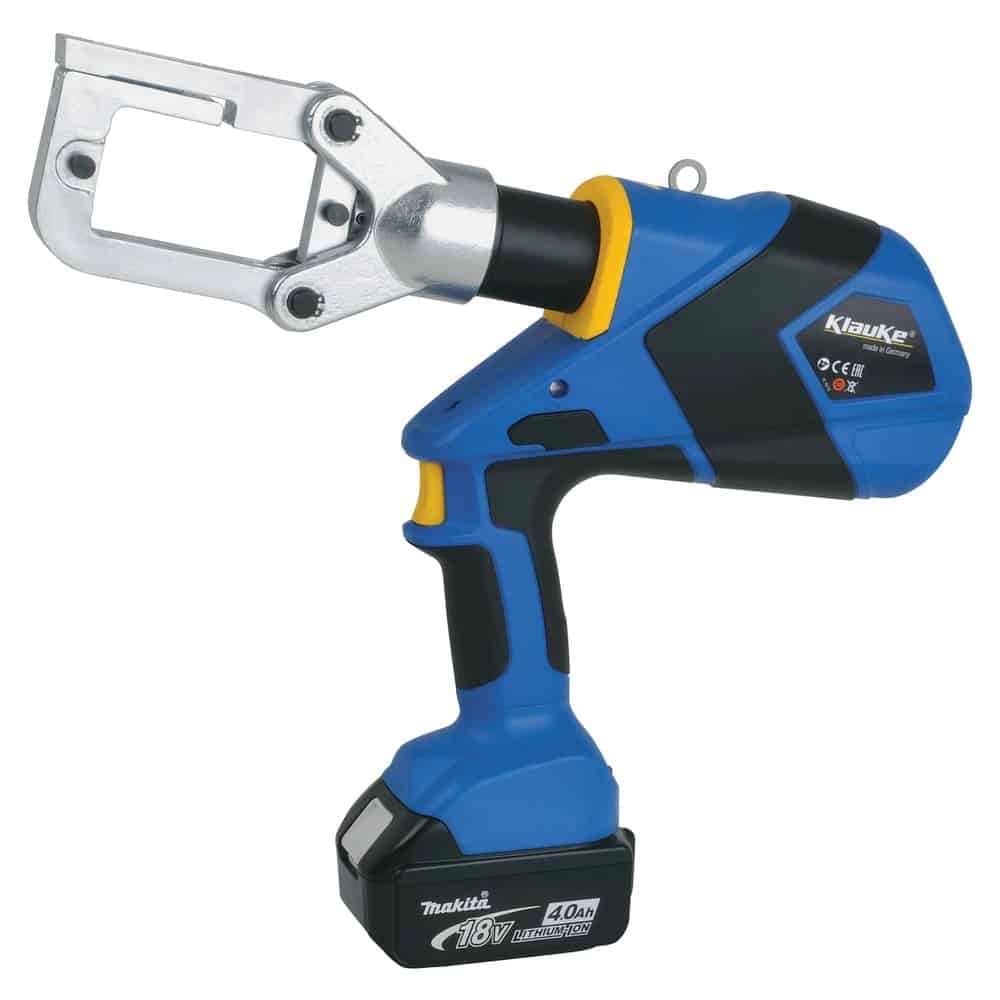

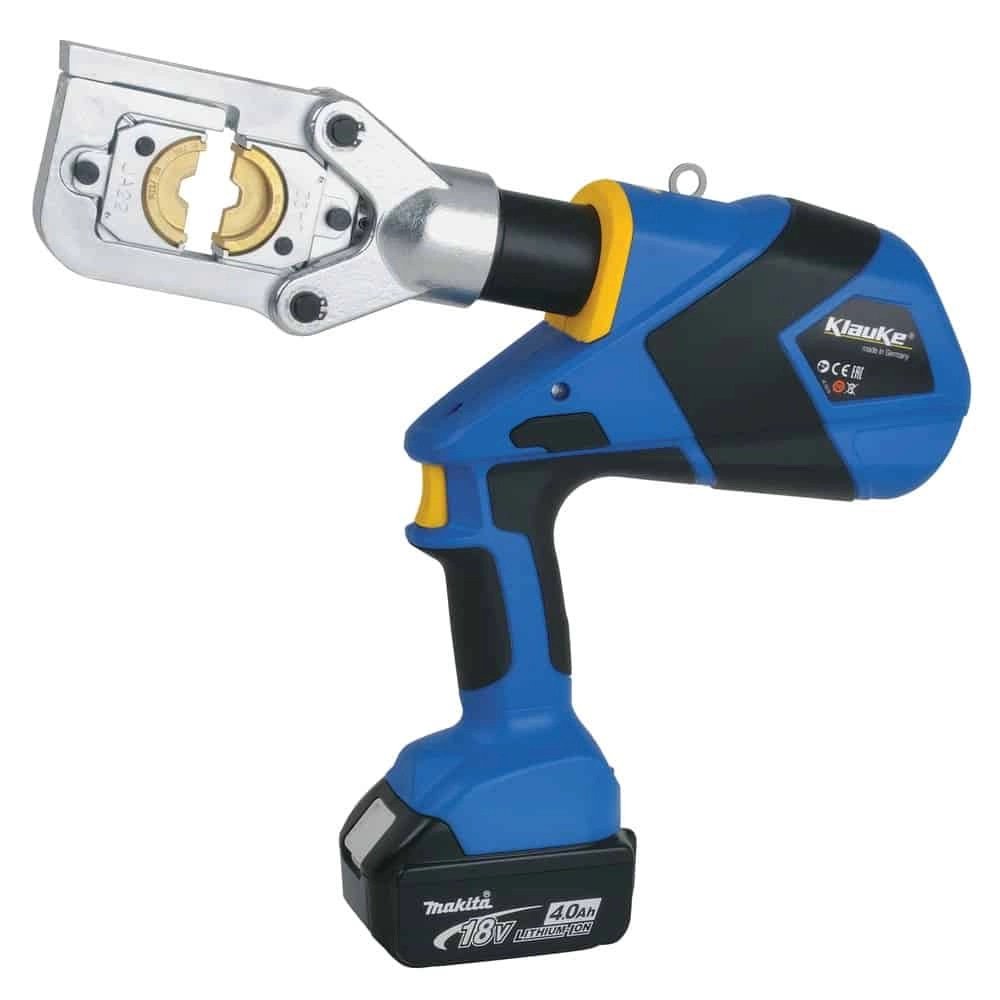

  • EK 60 UNV Universal Tool
  • RAL40 - 18V / 4.0 Ah, Li-Ion Makita Battery
  • LGL1 - Makita Quick-Charger For 18V Li-Ion Batteries
  • L22 Crimping Dies Set, 13-Pieces (6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300mm²)

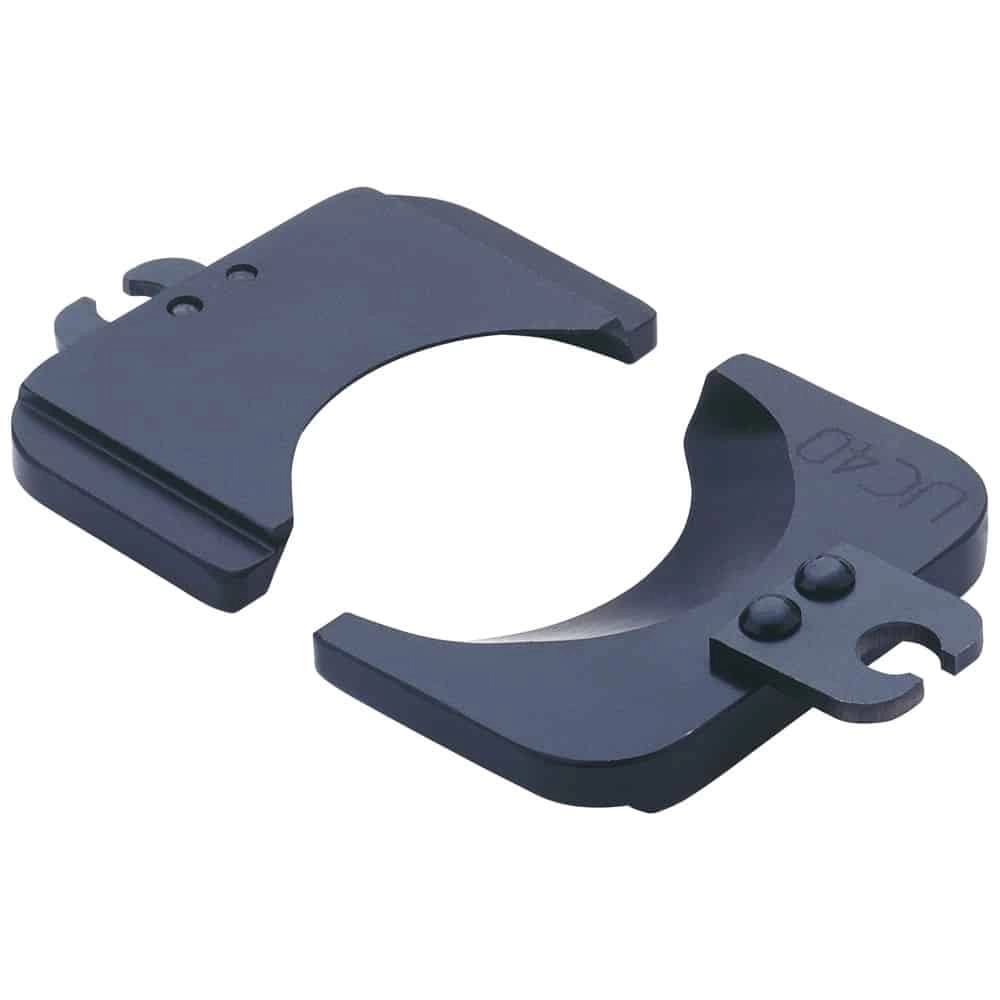

  • UC40 - Cutter Blades, Set

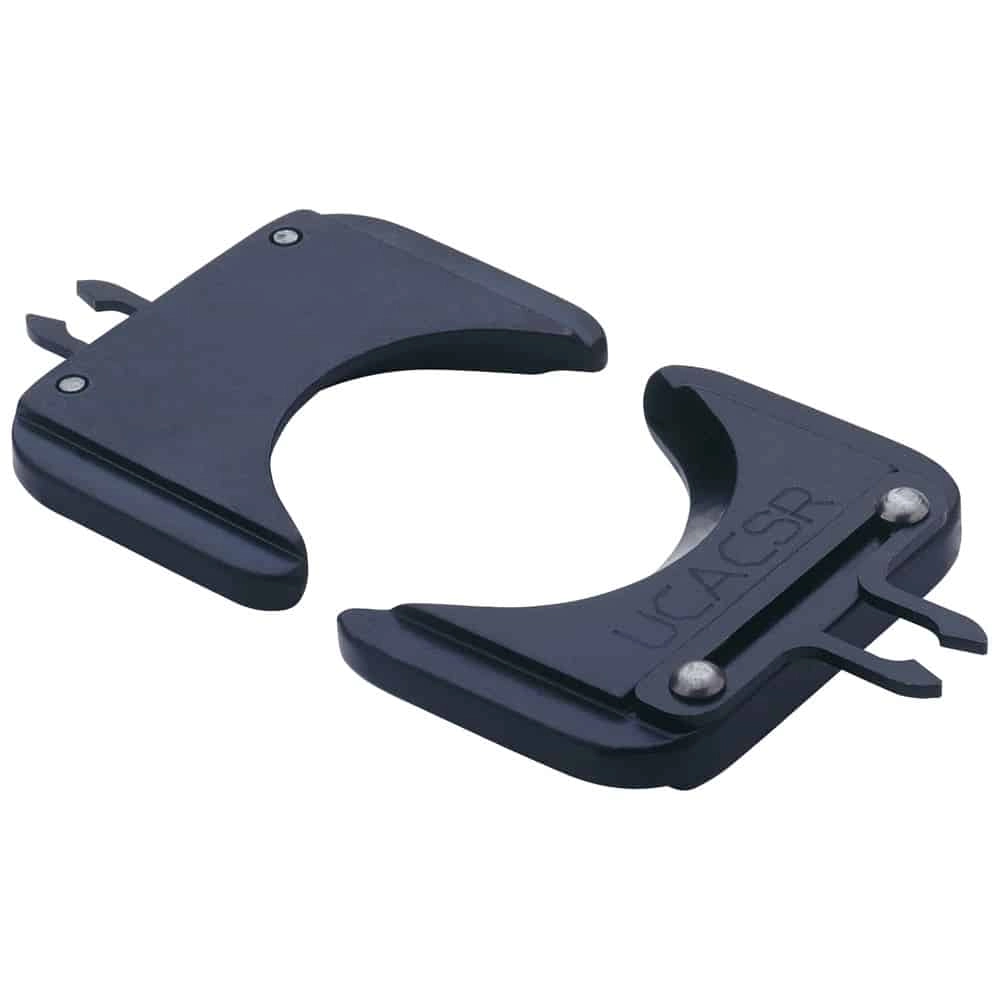

  • UCACSR - Cutter Blades F. Acsr, Set

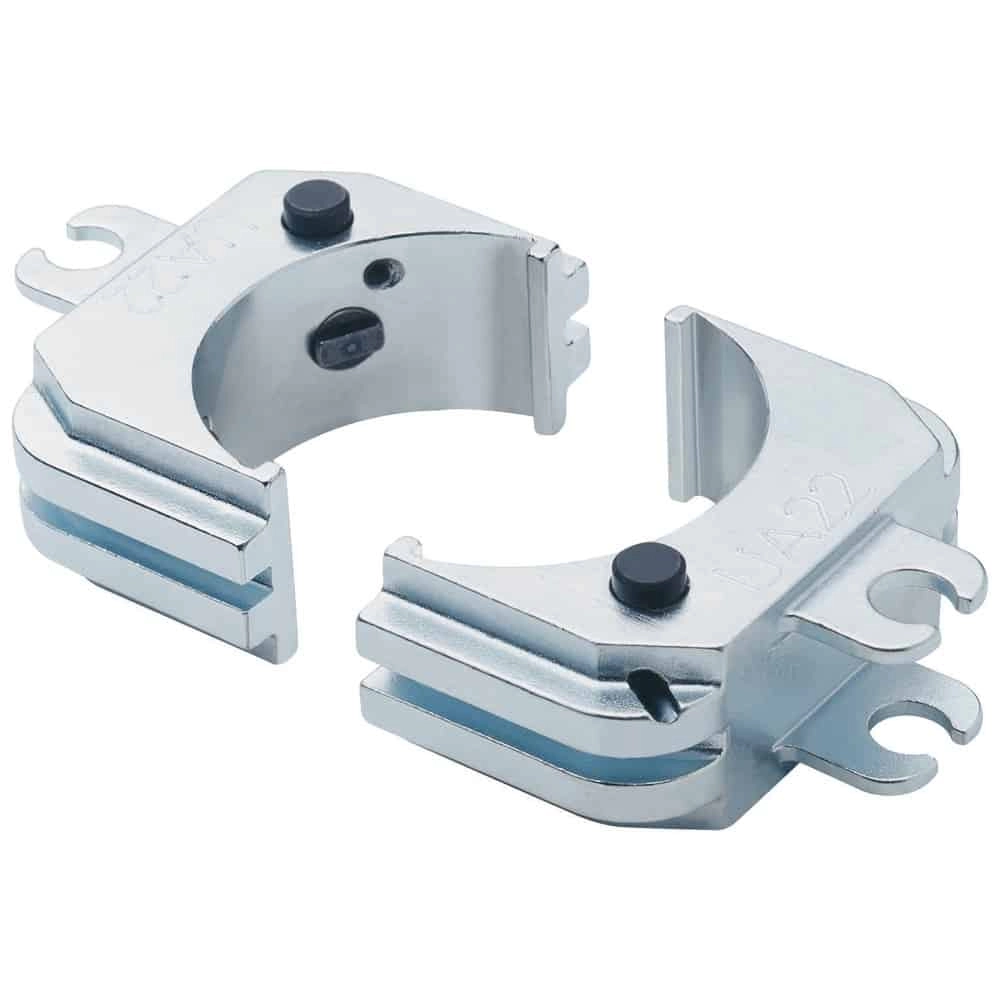

  • UA22 - Adapter For Series-22 Crimping Dies

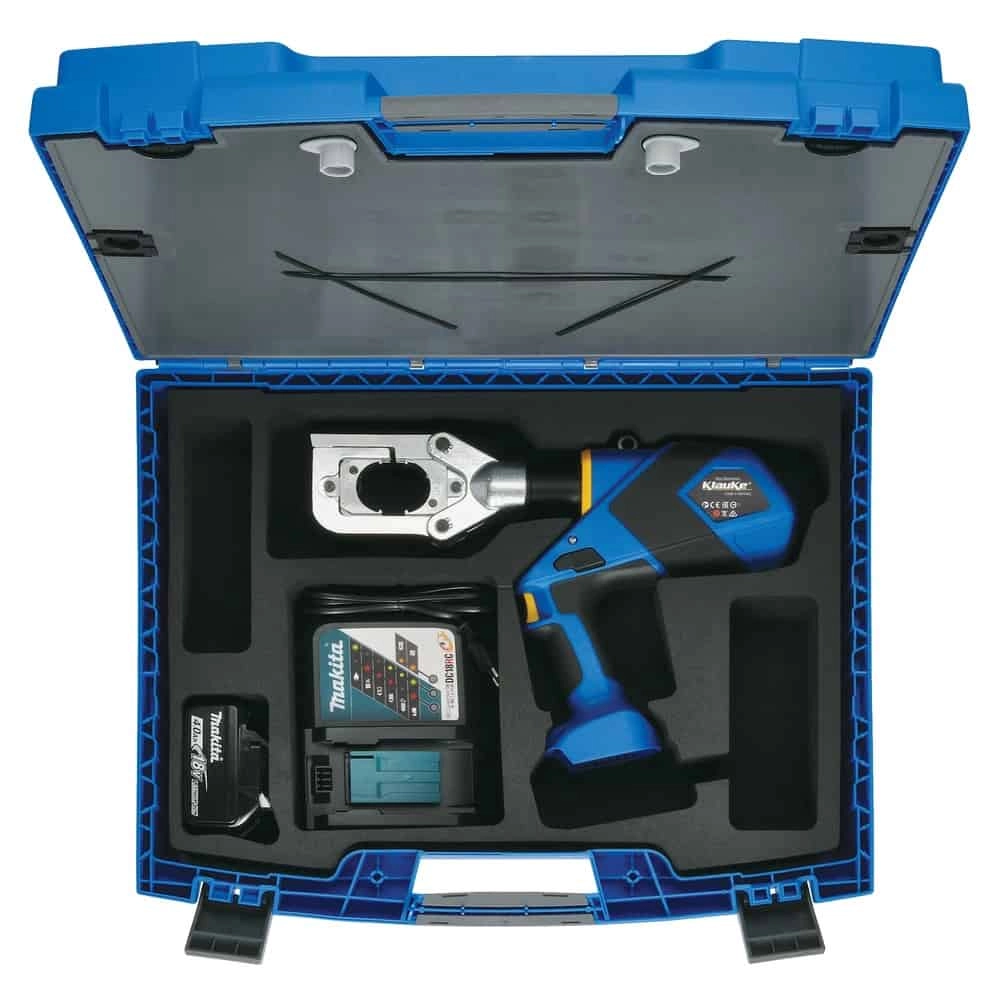

  • KK120UNVNG - Hard Plastic Carrying Case

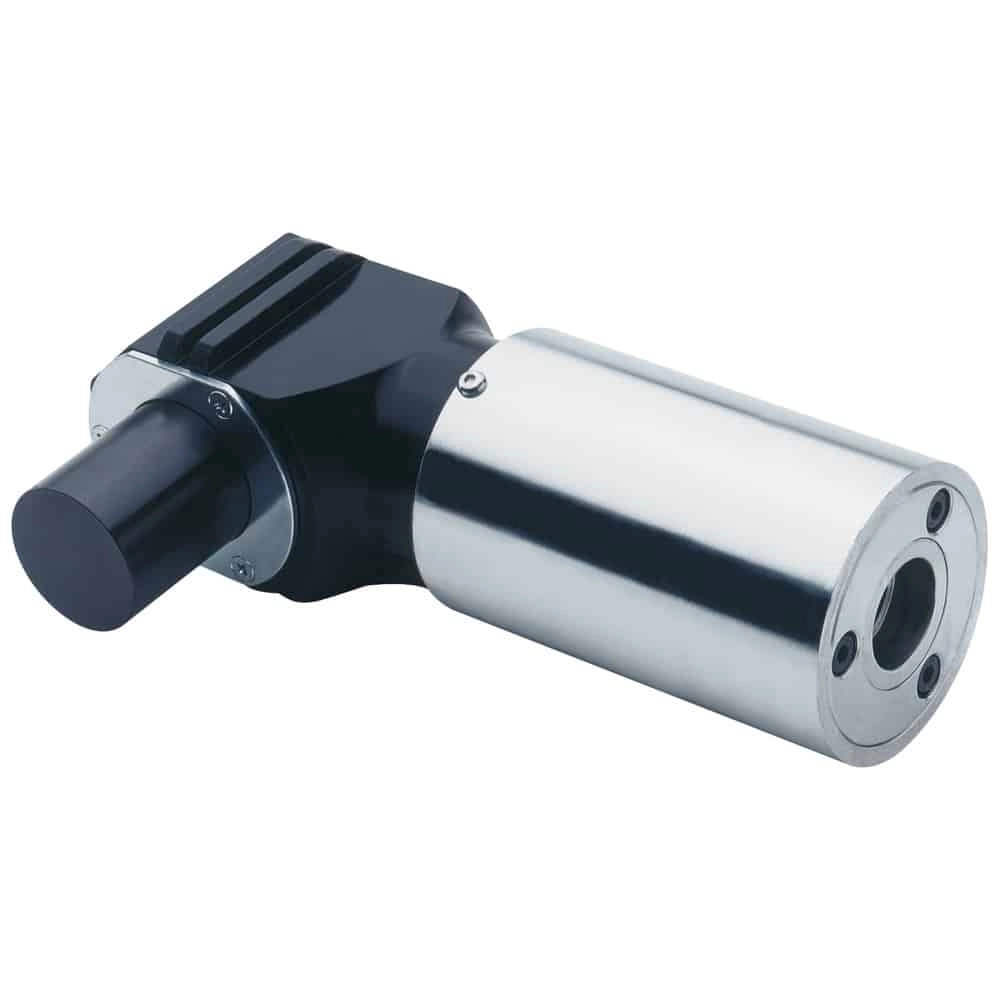

  • UA6P - Punch-Driver Adaptor, 60kN

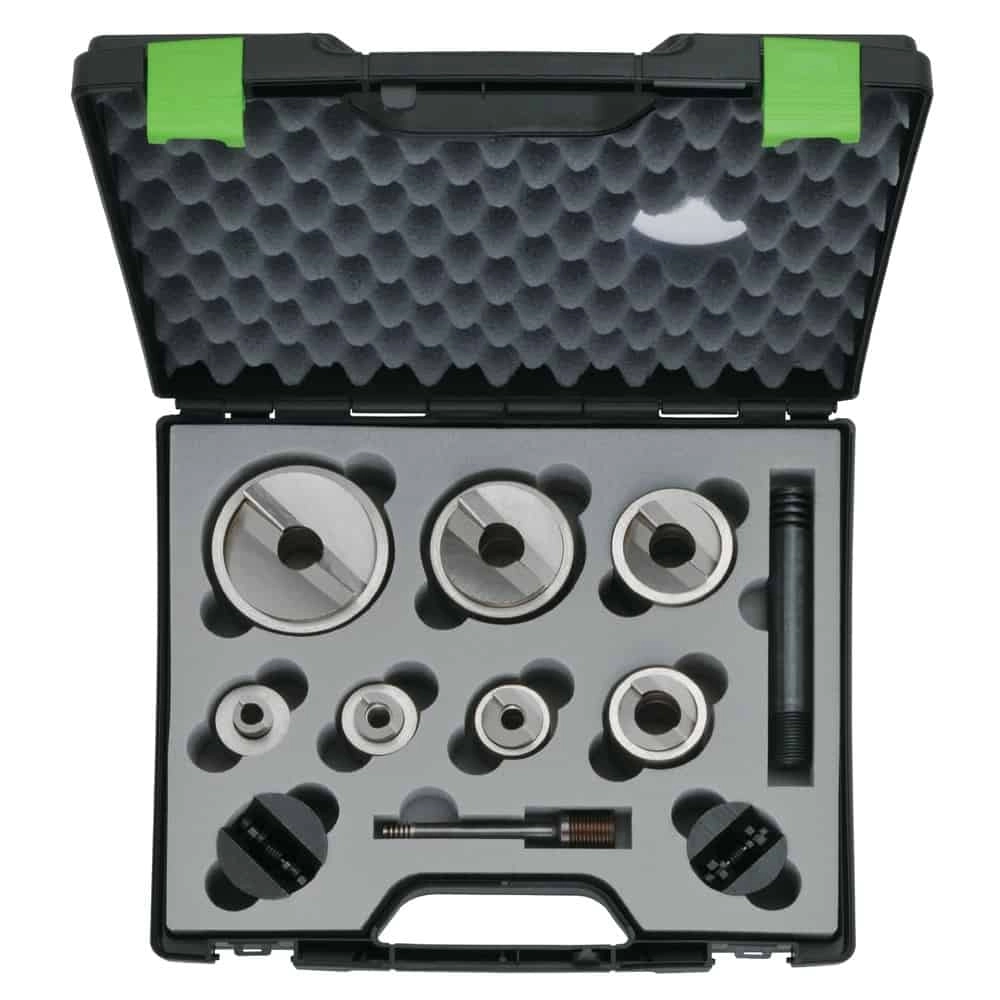

  • 52055440SET - SP Split Plate-Punching Tool Set ISO 16-63

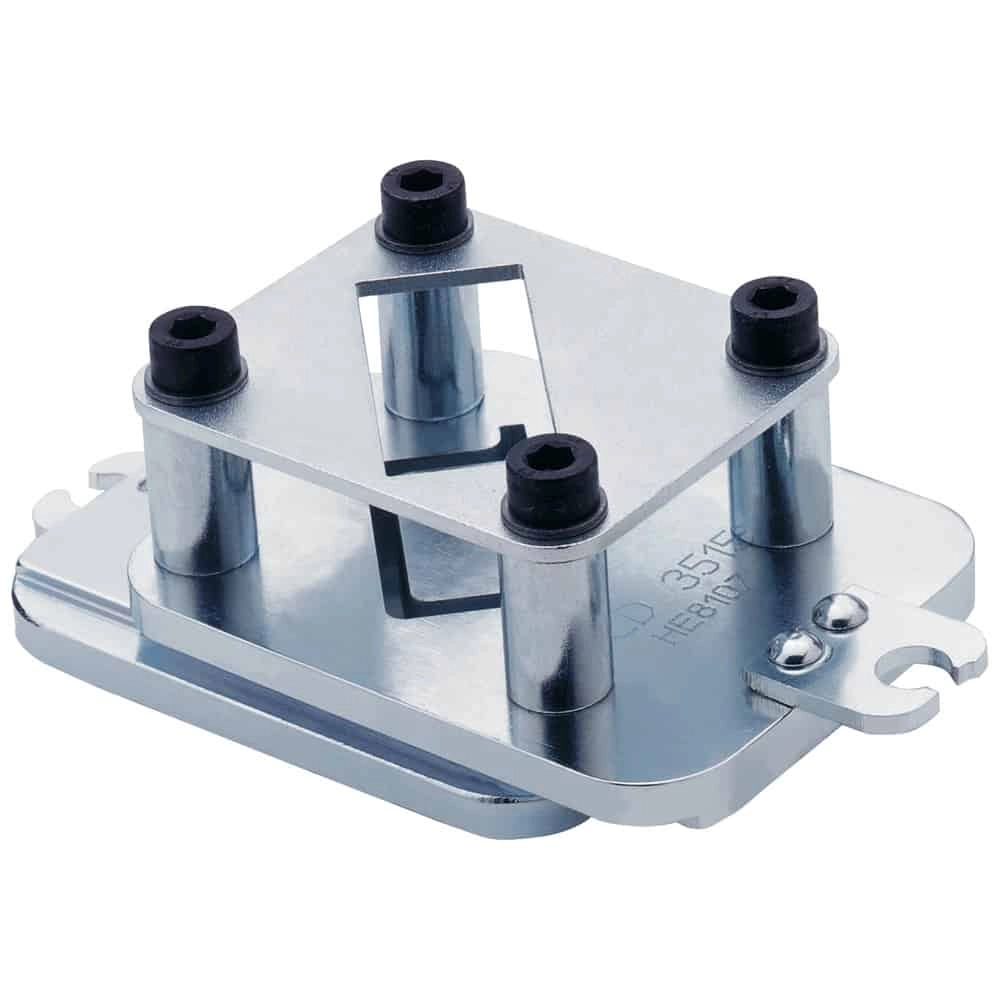

  • UCD3515 - Din-Rail Cutter 35X15
  • UCD3575 - Din-Rail Cutter 35X7.5

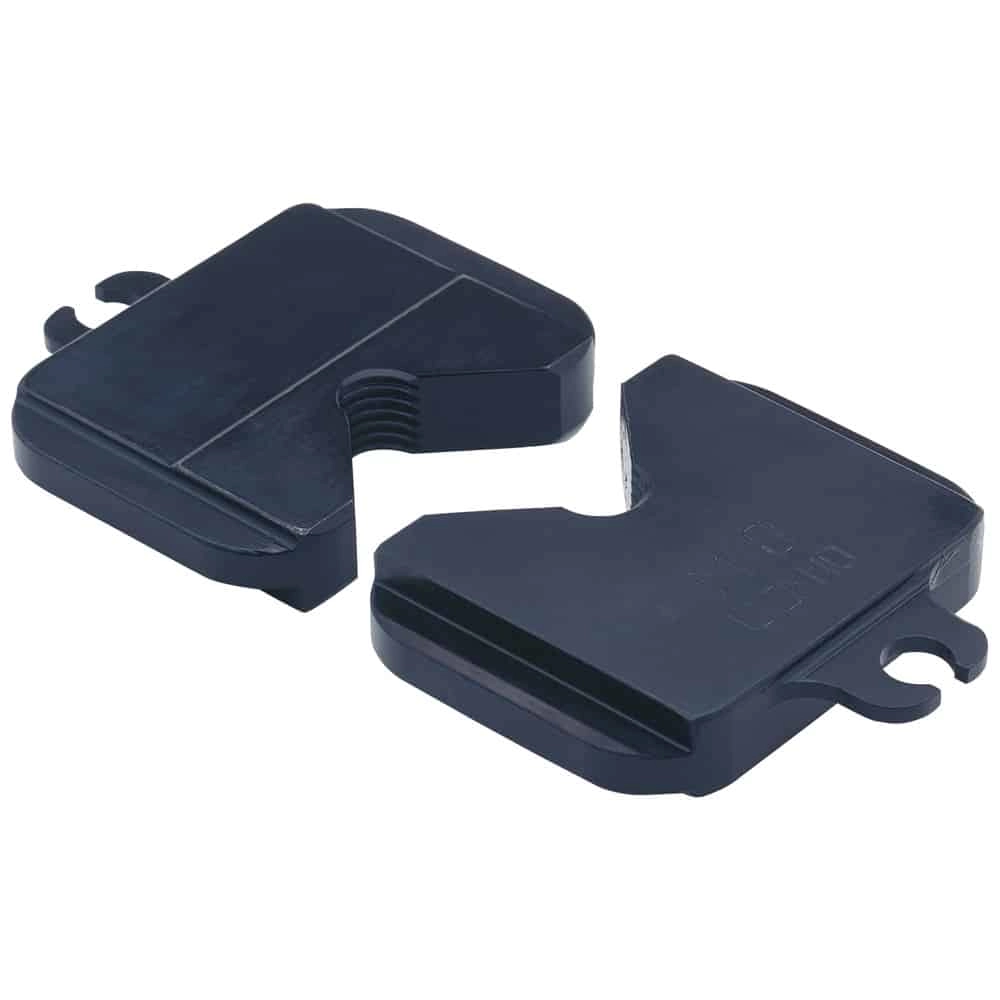

  • Threaded Rod Cutter Blades Sets (M10, M12, M5, M6, M8)
