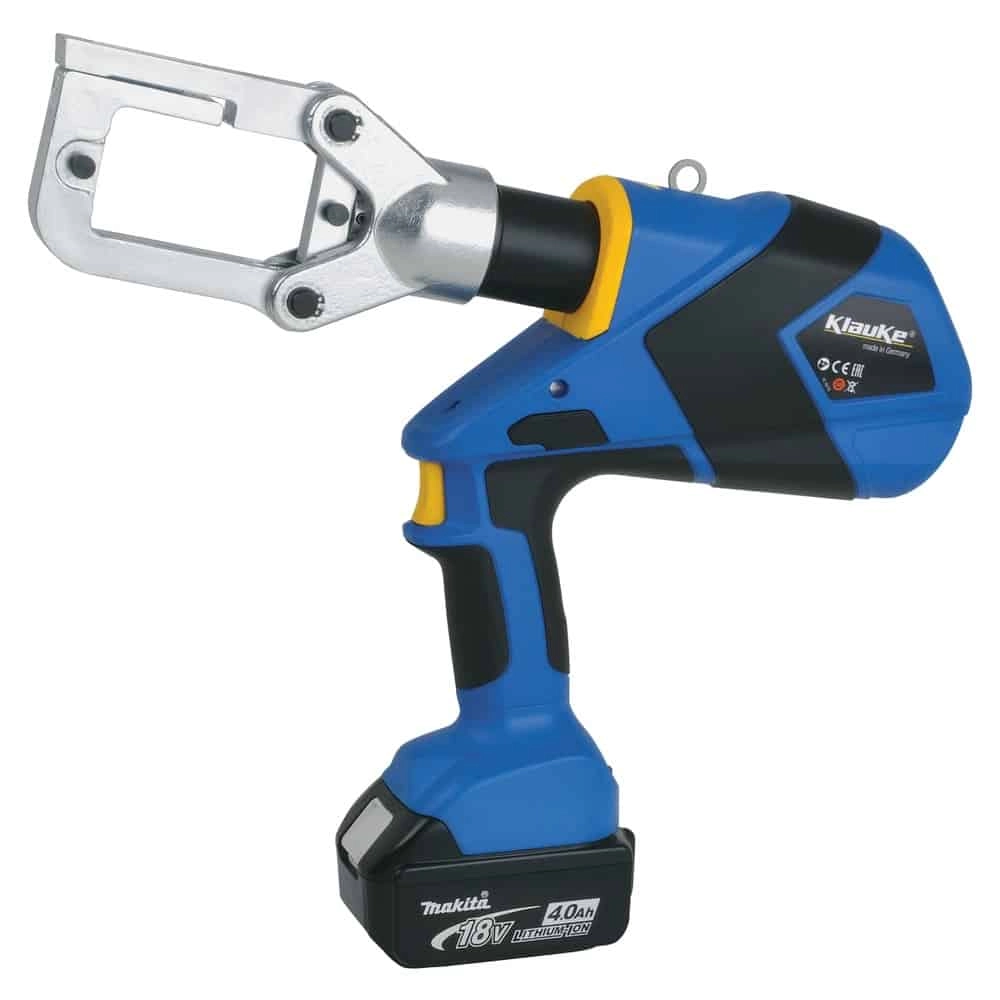

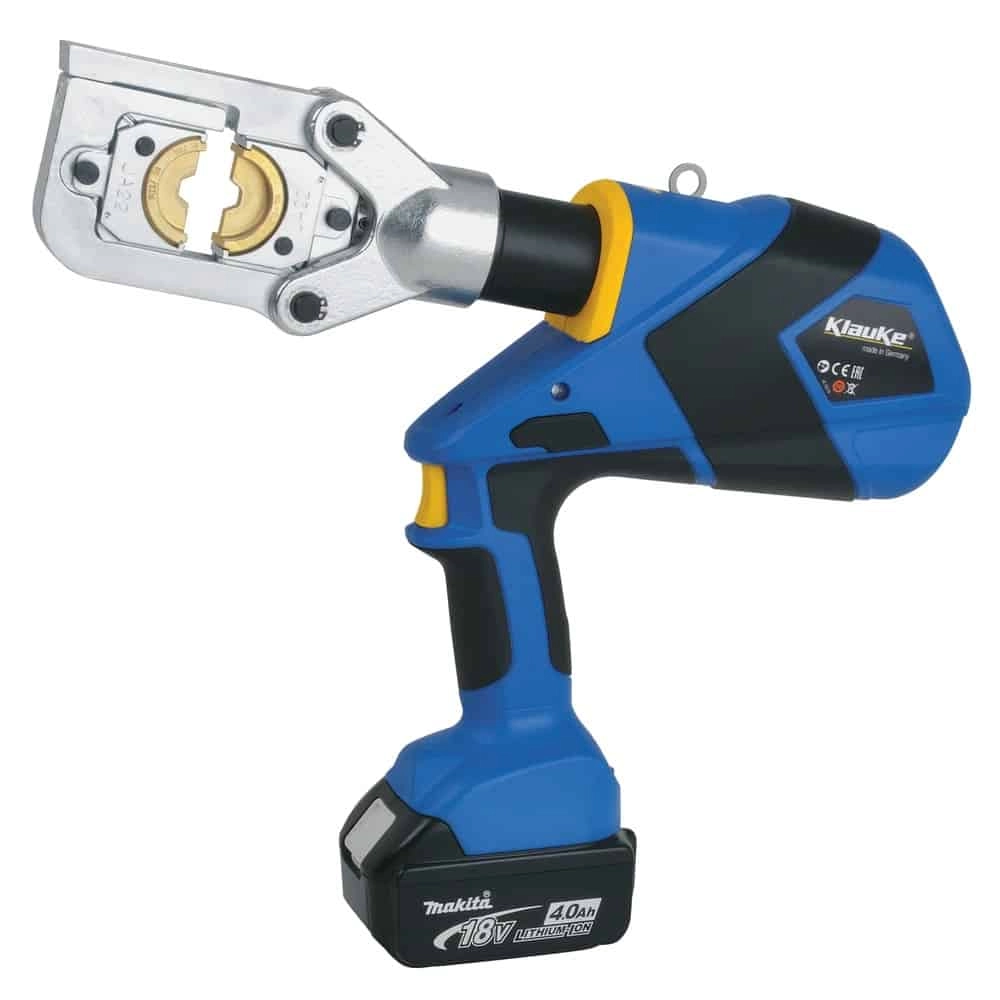

Klauke EK60UNVCFM 18V Cordless Hydraulic Universal Tool, 6-300mm²
Model # EK60UNVCFMKey Features
?
Question about this product?
Features
- All data can be easily read via Bluetooth
- Universal head flip top style, rotatable
- Simple and safe: One-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- Simple and safe: Automatic retraction after operation completed (crimping or cutting)
- 2-stage hydraulic system with fast feed and power stroke
- Always ready-to-use thanks to battery charge and service display
- One head for crimping, cutting and punching - one tool for all
- Ideal in the assembly field where all common jobs can be carried out using one tool
- Fast operations due to 2-stage hydraulics
Technical Information
- Crimping Force60kN
- Stroke42mm
- Crimping Capacity6-300mm²
- Crimping Cycle3-5s (depending on cross-section)
- Cutting Capacity40mm Diameter
- Punching Capacity (round)64mm
- Punching Capacity (square)92x92mm
- Voltage18V
- Battery Capacity4.0Ah
- Battery Charging Time36min.
- Weight4.8kg

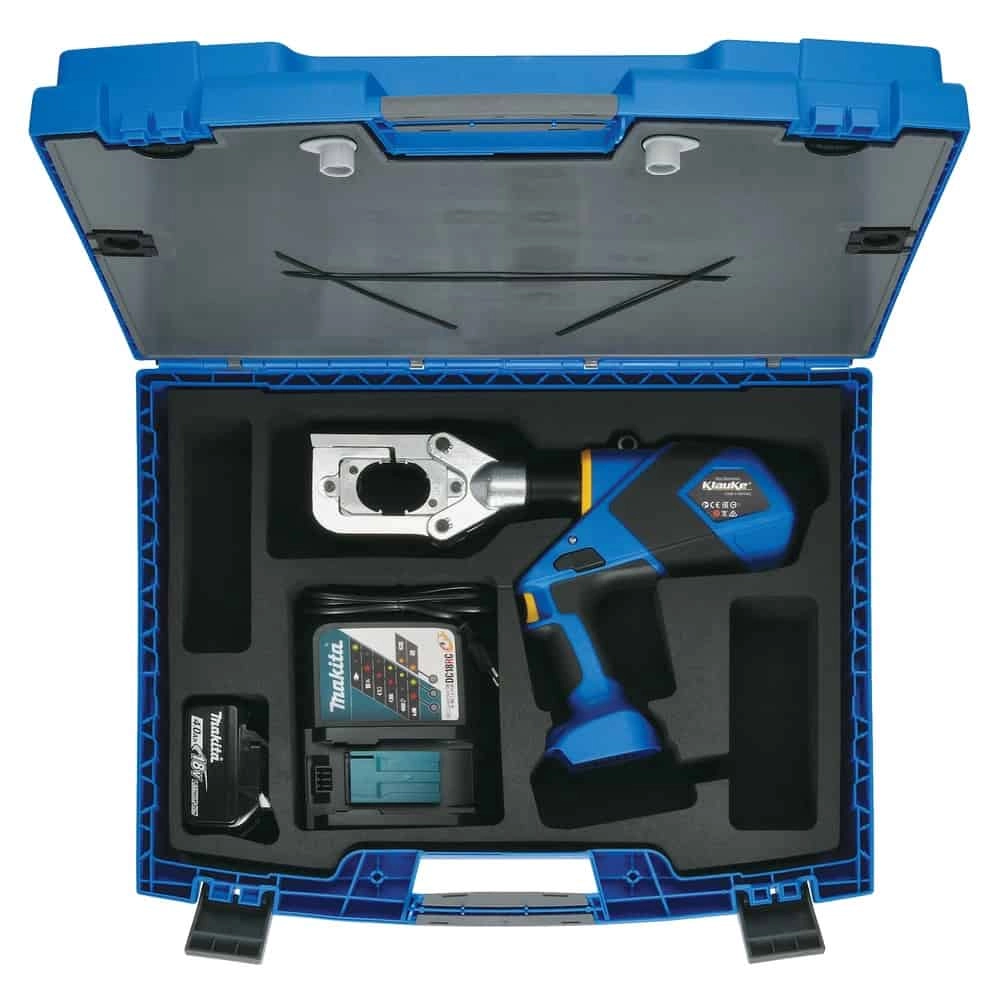

Items Included
- EK 60 UNV Universal Tool
- RAL40 - 18V / 4.0 Ah, Li-Ion Makita battery
- LGL1 - Makita quick-charger for 18V Li-Ion batteries

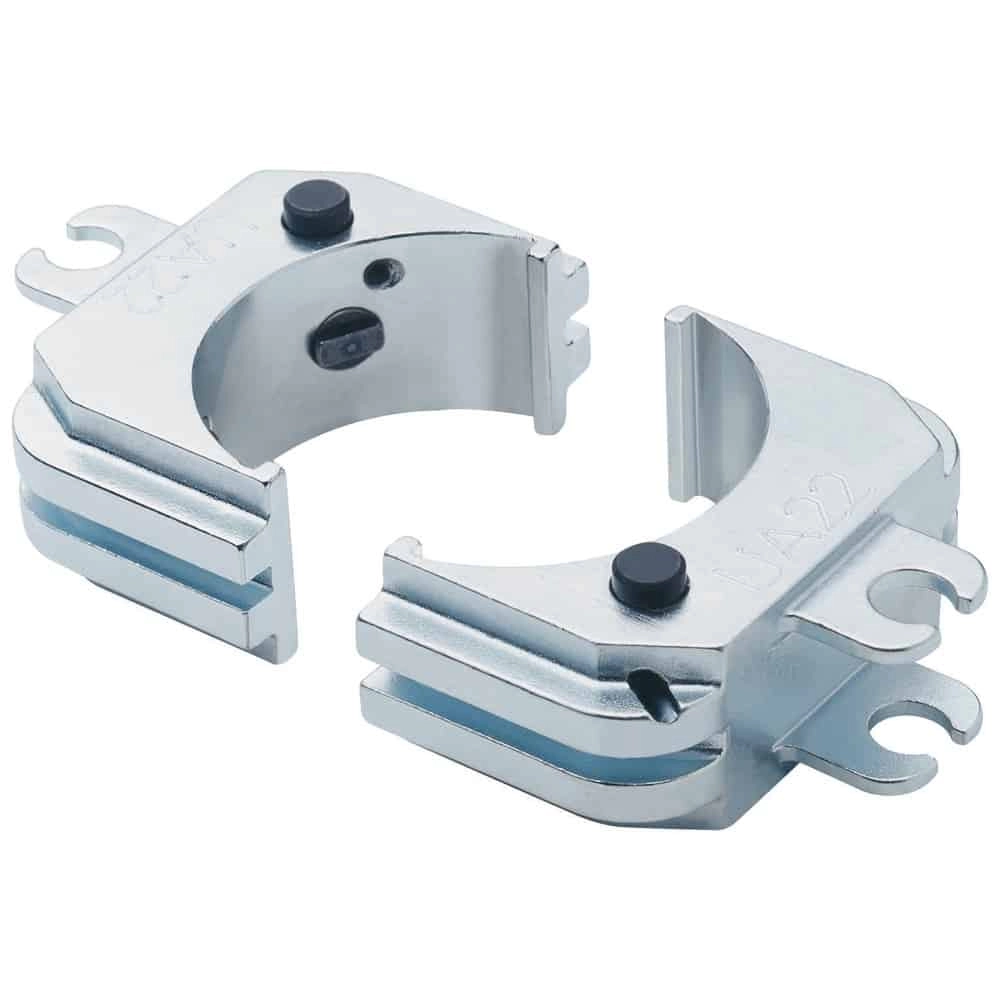

- UA22 - Adapter for crimping dies of Series 22
- KK120UNVNG - Hard plastic carrying case
