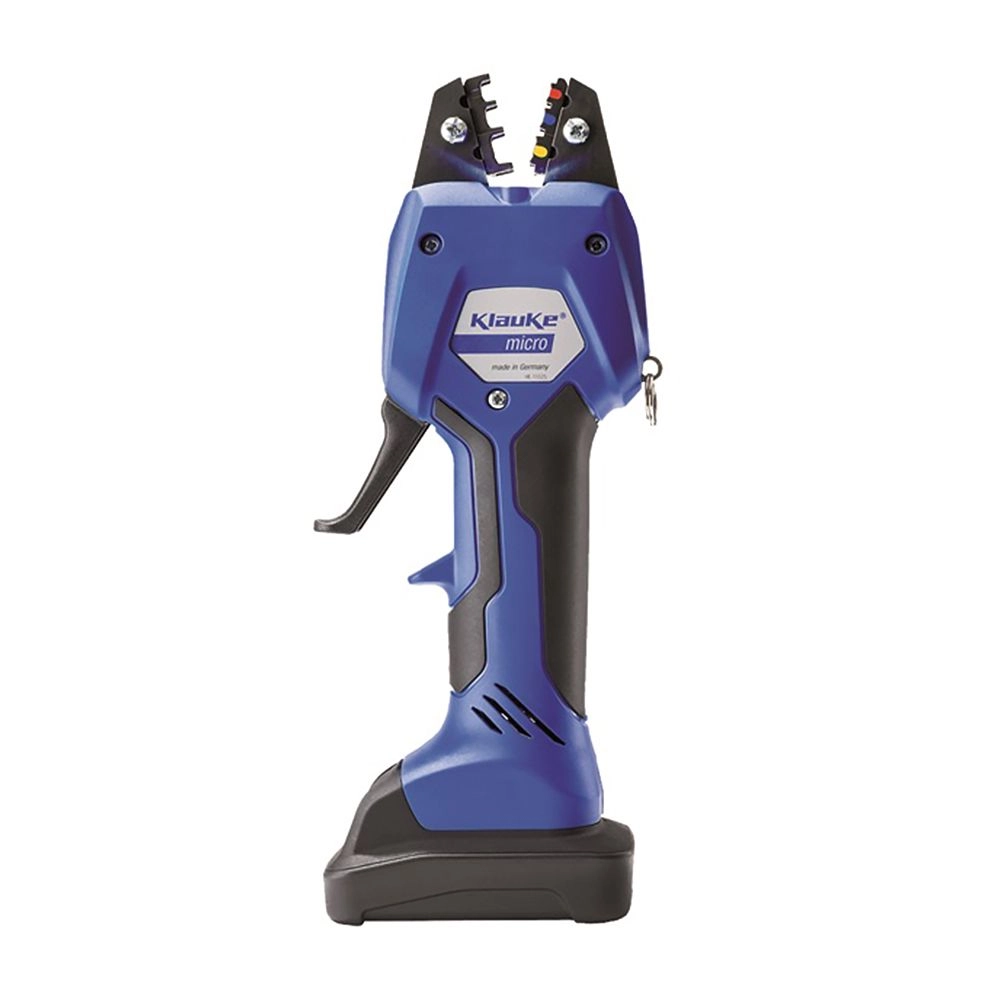

Klauke EK50ML 10.8V Electromechanical Crimping Tool, 50mm²
Model # EK50MLKey Features
?
Question about this product?
Features
- Simple and safe: one-button operating concept for controlling all tool functions
- Electronic control with locking function monitors full closing of the dies
- Simple and safe: automatic retraction when operation is complete
- Manual retract as required
- Motor stall protection
- Ergonomic 2C housing in the Klauke "In-line Design"
- Fastening eye for use with balancer or as fall protection in field applications
- Very low weight and high speed for maximum efficiency
- Powerful drive technology for fatigue proof operations
- Powerful 10.8V Li-Ion battery with charge status display
- LED for work area illumination
- Maintenance display via LED
Technical Information
- Crimping Force15kN
- Crimping Capacity0.14-50mm²
- Crimping Cycle<1.5s (based on connection material)
- Number of crimps300 (At 10mm² Cu DIN 46234 / per battery charge, approx)
- Voltage10.8V
- Battery Capacity1.5Ah
- Battery Charging Time40min.
- Weight Including Battery0.96kg
- Ambient Temperature-10 to 40°C
Items Included
- RAML1–10.8V / 1.5Ah, Li-Ion (16.2 Wh) battery
- LGML1–Charger for 10.8V Li-Ion batteries, 230V
- IS5071–Crimping die for insulated connector 0.5 - 6mm²
- KKEK50ML–Hard plastic carrying case
