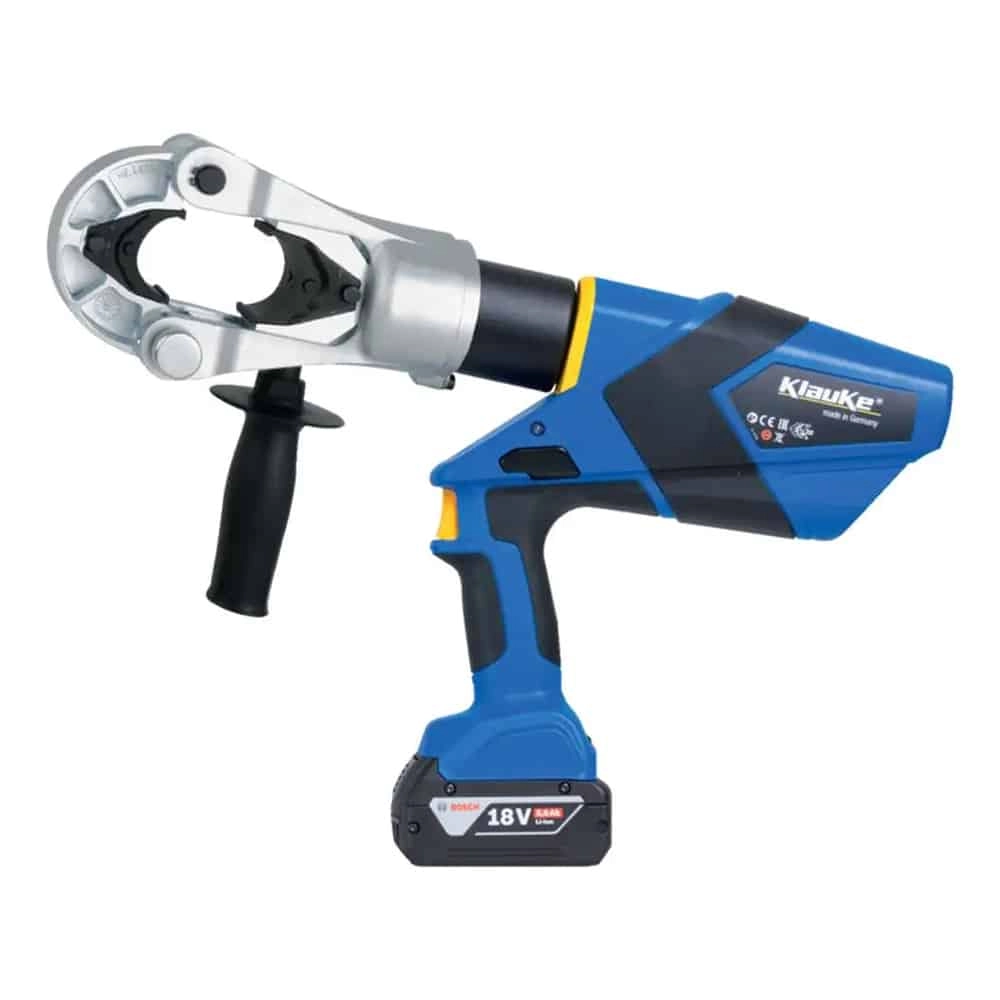

Klauke EK135FTCFMSETL 18V Cordless Hydraulic Crimping Tool, 630mm² with Copper Dies (70-400mm²)
Model # EK135FTCFMSETLKey Features
?
Question about this product?
Features
- All data can be easily read via Bluetooth
- Closed head, rotatable
- Quality assurance via visual and audible signals in case of error
- Simple and safe: One-button operating concept for controlling all tool functions
- LED for work area illumination
- 2-stage hydraulic system with fast feed and power stroke
- Simple and safe: Automatic retraction when operation is complete
Technical Information
- Crimping Force135kN
- Stroke50.8mm
- Crimping Capacity10-630mm²
- Crimping Cycleapprox. 9s (depending on cross-section)
- Number of crimps85 (At 1x240mm² NYY-O rm, approx)
- Voltage18V
- Battery Capacity4.0Ah
- Battery Charging Time36min.
- Weight Including Battery10.2kg
- Ambient Temperature-10 to 40°C
Items Included
- EK 135 FT Crimping Tool
- HL-13/240mm² Crimping Die
- HL-13/120mm² Crimping Die
- HL-13/150mm² Crimping Die
- HL-13/70mm² Crimping Die
- HL-13/95mm² Crimping Die
- HL-13/400mm² Crimping Die
- HL-13/300mm² Crimping Die
- HL-13/185mm² Crimping Die
- RAL40 - 18V / 4.0Ah, Li-Ion Makita battery
- LGL1 - Makita quick-charger for 18V Li-Ion batteries
- UA15T - Adapter for crimping dies of Series 13
- KK135FTNG - Hard plastic carrying case
