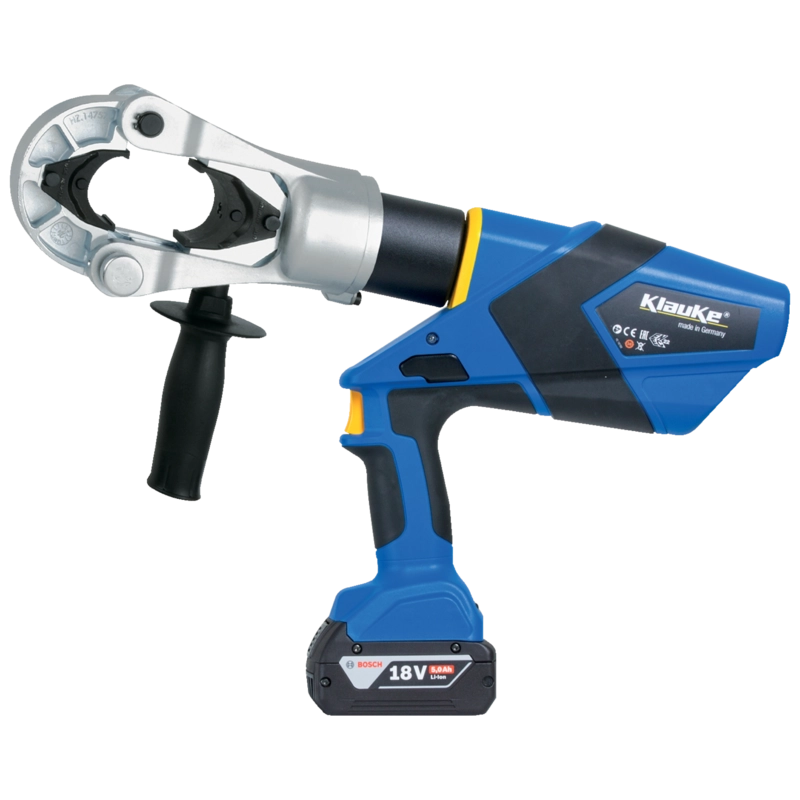

Klauke EK135FTCFBSETL Battery-Powered Hydraulic Crimping Tool 10 - 630 mm² With Dies 70-630mm
Model # EK135FTCFBSETLDiscontinued
Key Features
?
Question about this product?
Features
- All data can be easily read via Bluetooth
- Closed head, rotatable
- Quality assurance via visual and audible signals in case of error
- Simple and safe: One-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- 2-stage hydraulic system with fast feed and power stroke
- Simple and safe: Automatic retraction when operation is complete
Technical Information
- Crimping force 135 kN
- Stroke / opening width 50.8 mm
- Crimping range 10 – 630 mm²
- Crimping cycle approx. 9 s (depending on cross-section)
- Number of crimps approx. 85 at 1 x 240 mm² NYY-O rm
- Battery voltage (V) 18 V
- Battery capacity 4.0 Ah, Li-Ion
- Charging time 45 min.
- Weight incl. battery 10.2 kg
- Ambient temperature-10°C up to +40 °C
