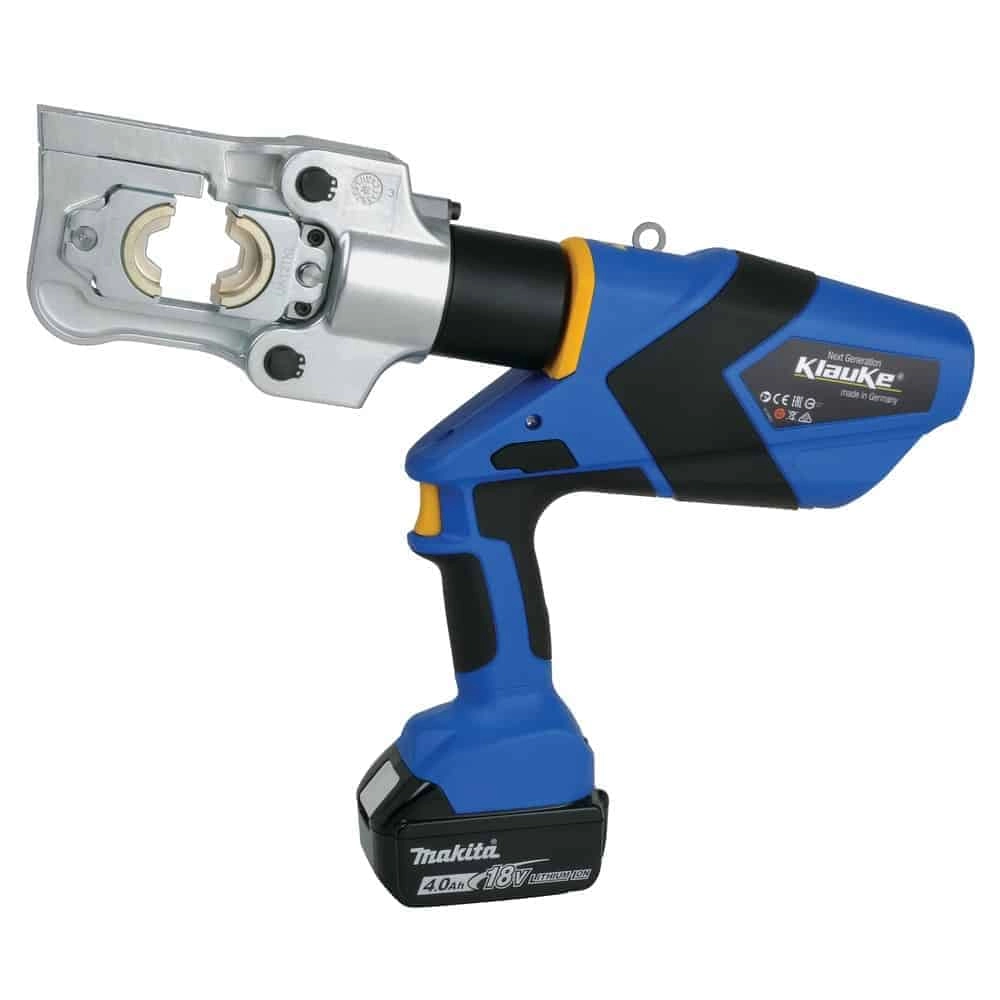

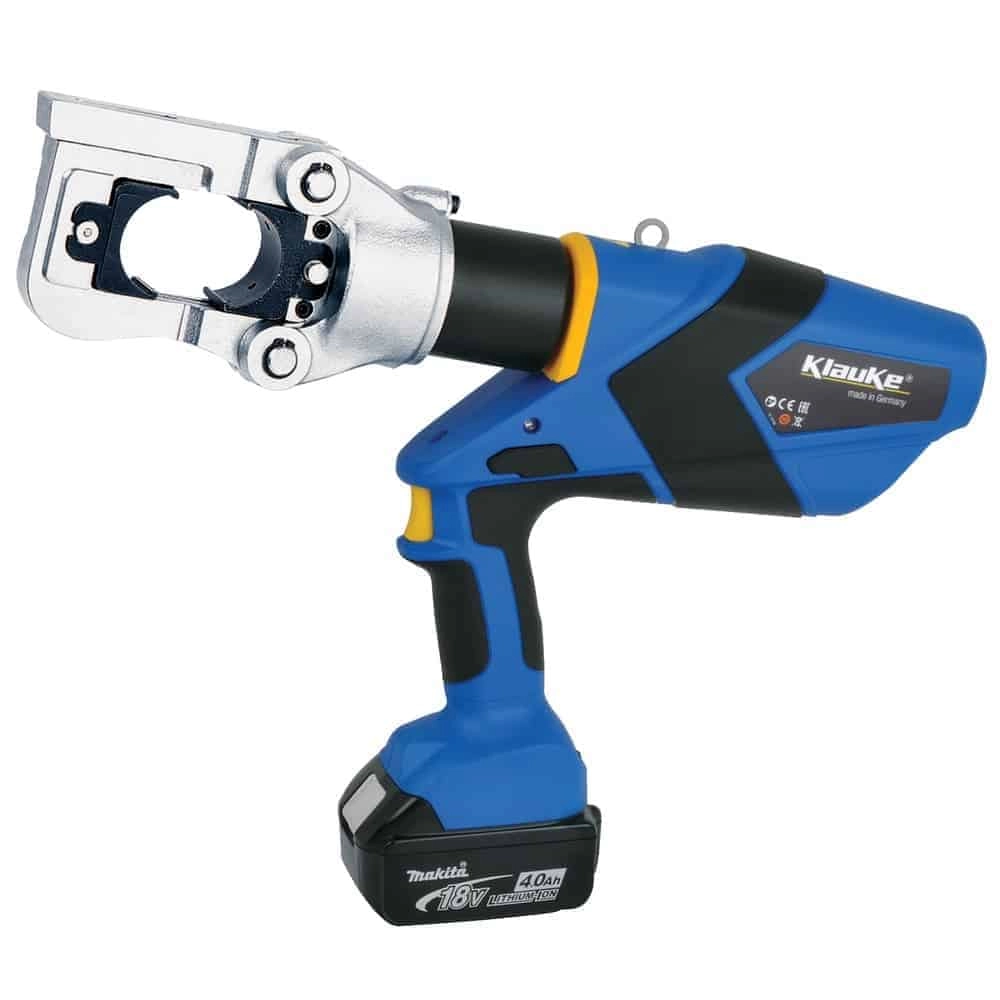

Klauke EK120UNVCFM CUT + CRIMP 2-In-1 18V Cordless Hydraulic Universal Tool, 10-400mm² with Crimping and Cutting Dies Set
Model # EK120UNVCFM CUT + CRIMPKey Features
?
Question about this product?
Features
- All data can be easily read via Bluetooth
- Universal head flip top style, rotatable
- Simple and safe: One-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- Simple and safe: Automatic retraction after operation completed (crimping or cutting)
- 2-stage hydraulic system with fast feed and power stroke
- Always ready-to-use thanks to battery charge and service display
- One head for crimping, cutting and punching - one tool for all
- Ideal in the assembly field where all common jobs can be carried out using one tool
Technical Information
- Crimping Force108kN
- Stroke42mm
- Crimping Capacity10-400mm²
- Crimping CycleDepending on cable type
- Number of crimps110 (At 150mm² Cu DIN, approx)
- Cutting Capacity40mm Diameter
- Punching Capacity (round)144mm
- Punching Capacity (square)138x138mm
- Voltage18V
- Battery Capacity4.0Ah
- Battery Charging Time36min.
- Weight6.5kg

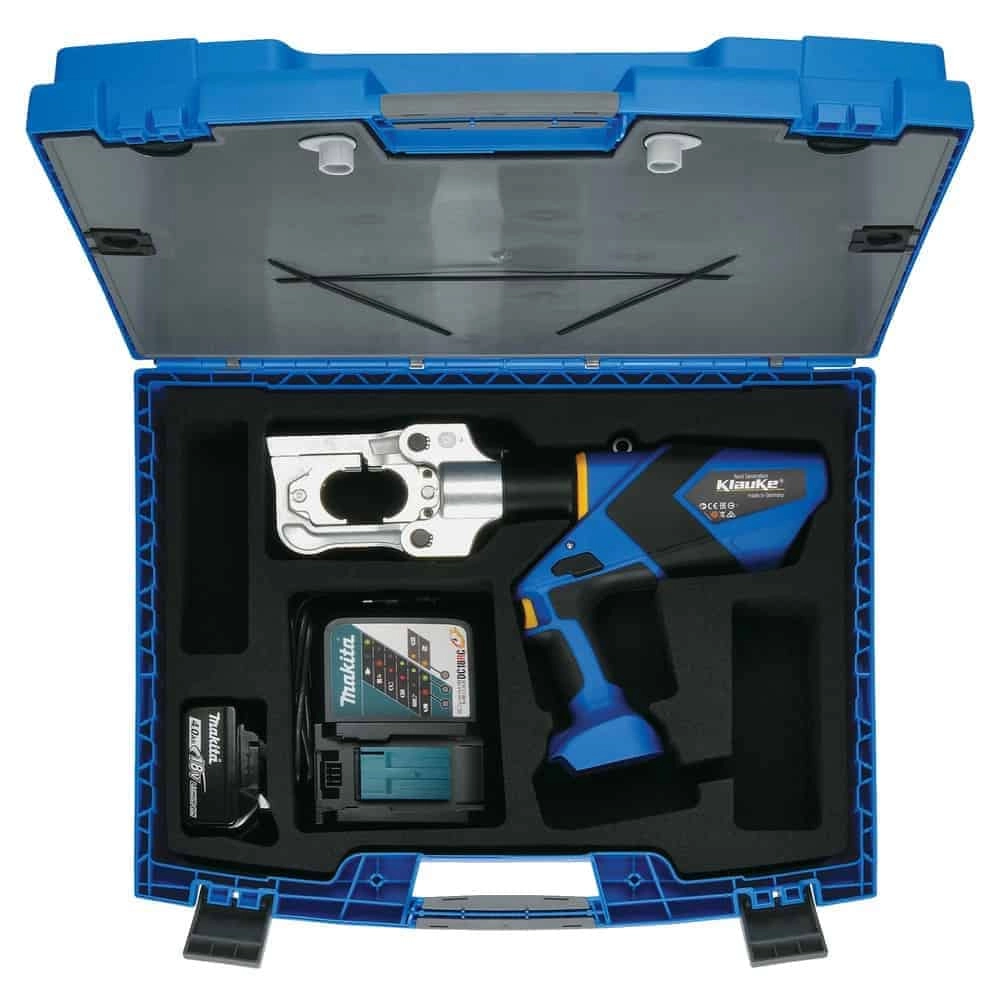

Items Included
- Makita RAL40 Battery 18V / 4 AH, Li-ion
- Die set L-series 16-400mm²

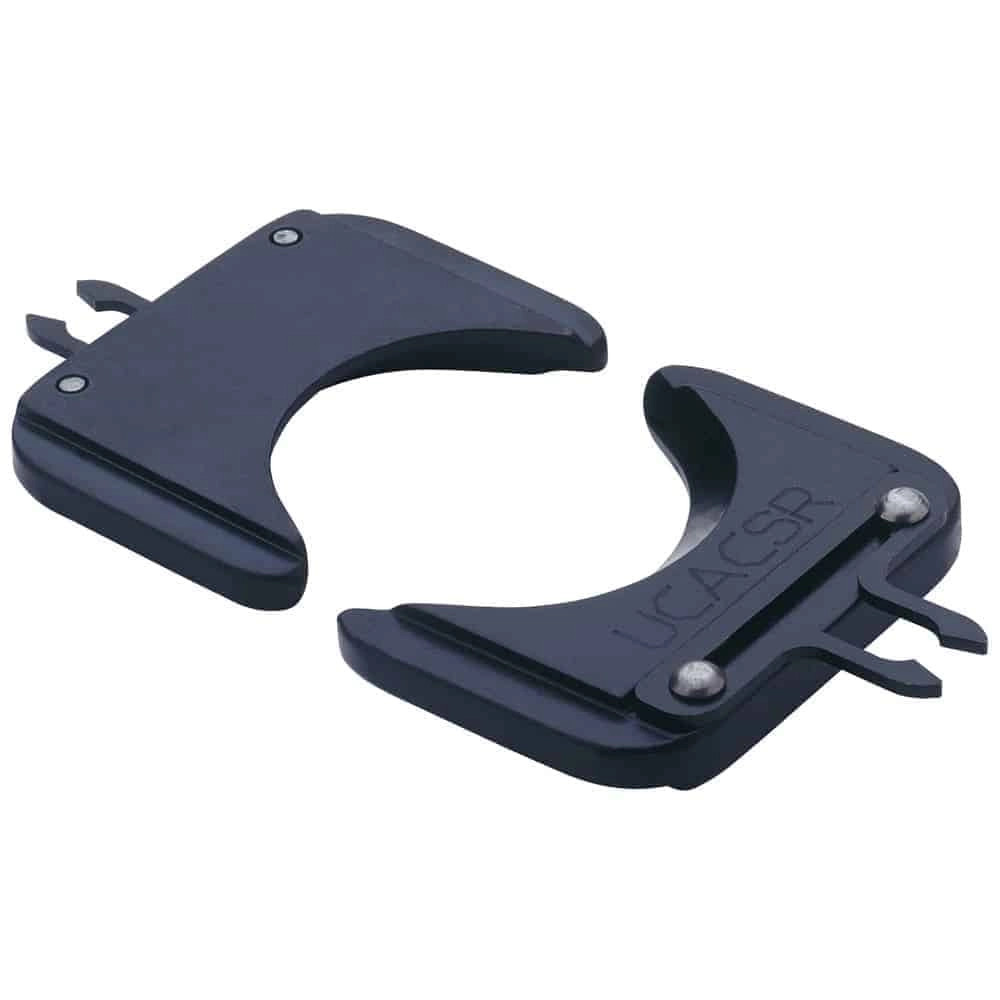

- UCACSR Cutting die for AL/CU max 40mm diameter

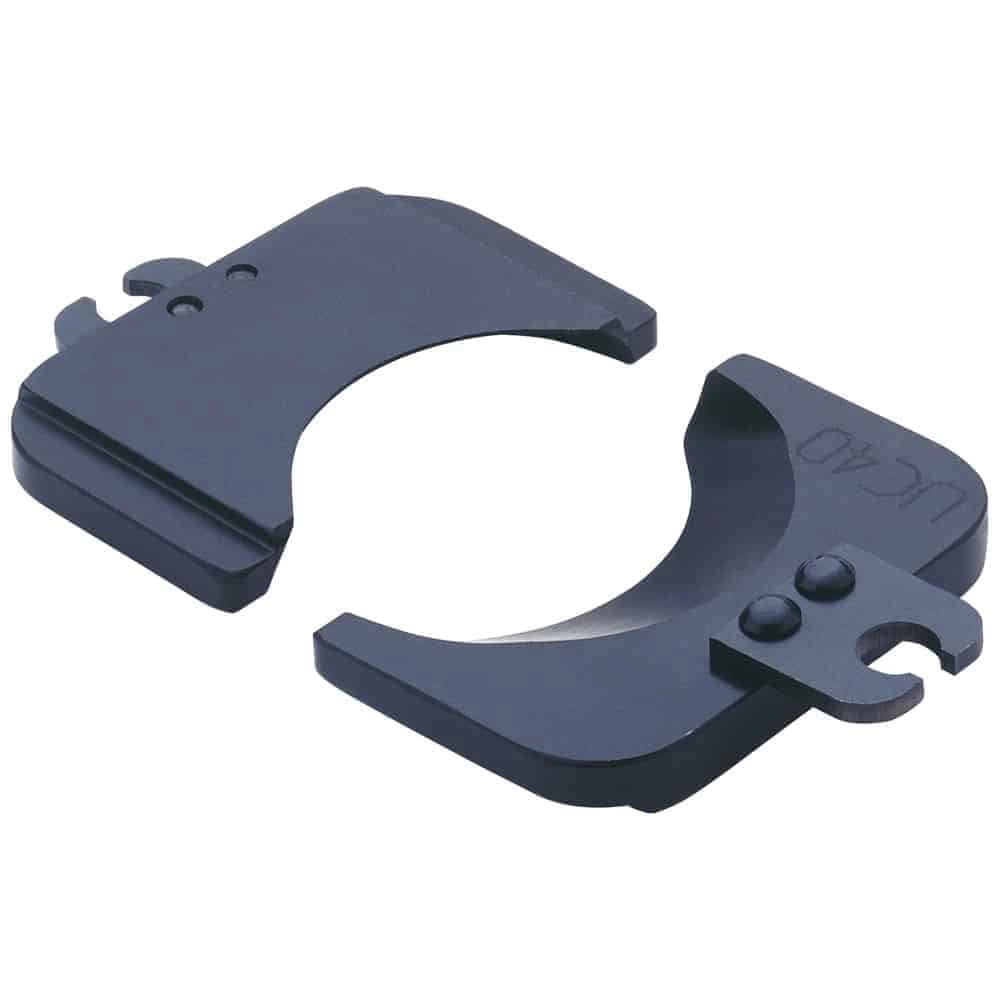

- UC40 Cutting die max 40mm diameter
- EK 120 UNV Universal Tool
- Carry Case
