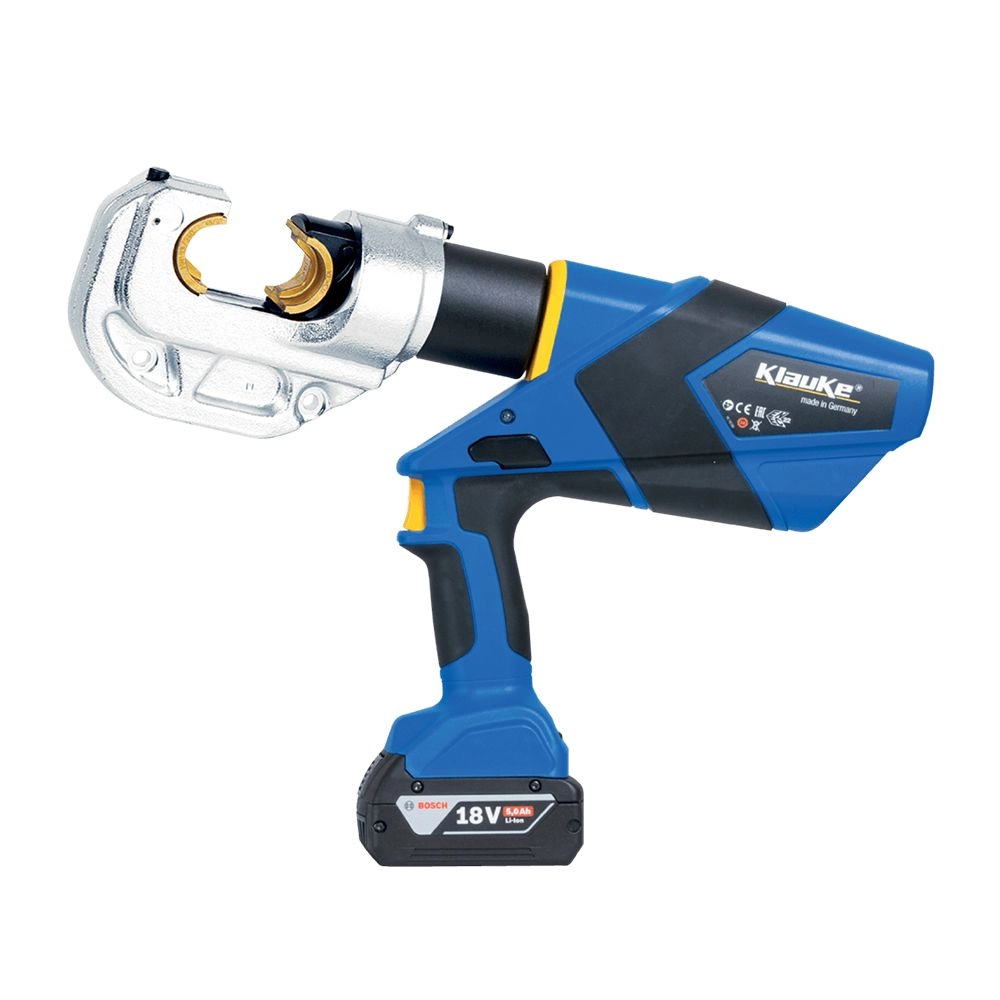

Klauke EK12042CFMSET 18V Cordless Hydraulic Crimping Tool, 400mm² with Dies (12-400mm²)
Model # EK12042CFMSETKey Features
?
Question about this product?
Features
- C-head with very wide crimping range to 400mm²
- Up to 60 % fewer crimps thanks to wide crimping in comparison to 6 t tools
- Easy handling by optimum weight distribution
- All data can be easily read via Bluetooth
- Open head, rotatable
- Quality assurance via visual and audible signals in case of error
- Simple and safe: one-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- 2-stage hydraulic system with fast feed and power stroke
- Simple and safe: automatic retraction when operation is complete
- Automatic retract stop (ARS) for positioning control in case of multiple crimps
- Always ready-to-use thanks to battery charge and service display
Technical Information
- Crimping Force120kN
- Stroke42mm
- Crimping Capacity16-400mm²
- Crimping Cycle8-9s (depending on cross-section)
- Number of crimps110 (At 150mm² Cu DIN, approx)
- Voltage18V
- Battery Capacity4.0Ah
- Battery Charging Time36min.
- Weight Including Battery7.1kg
- Ambient Temperature-10 to 40°C
Items Included
- EK 120/42 Crimping Tool
- 2 Makita RAL 40 battery 18V / 4.0Ah, Li-Ion (72 Wh)
- Crimping dies: HA13150, HA131625, HA13185, HA13240, HA13300, HA1335, HA1350, HA1370, HA1395120, S41826
- Aluminium die 400mm²
- HL13SET (Die Set 13 Series L-16-400′)
- Carry Case
