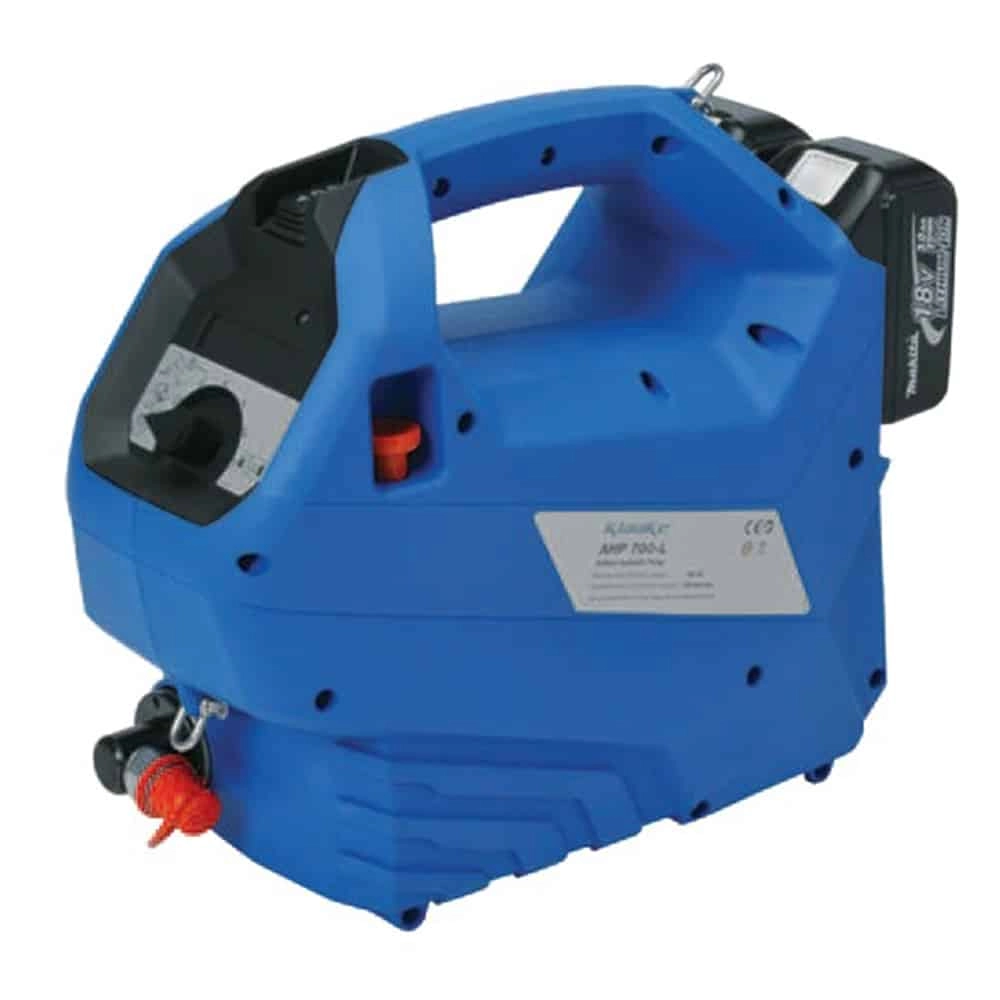

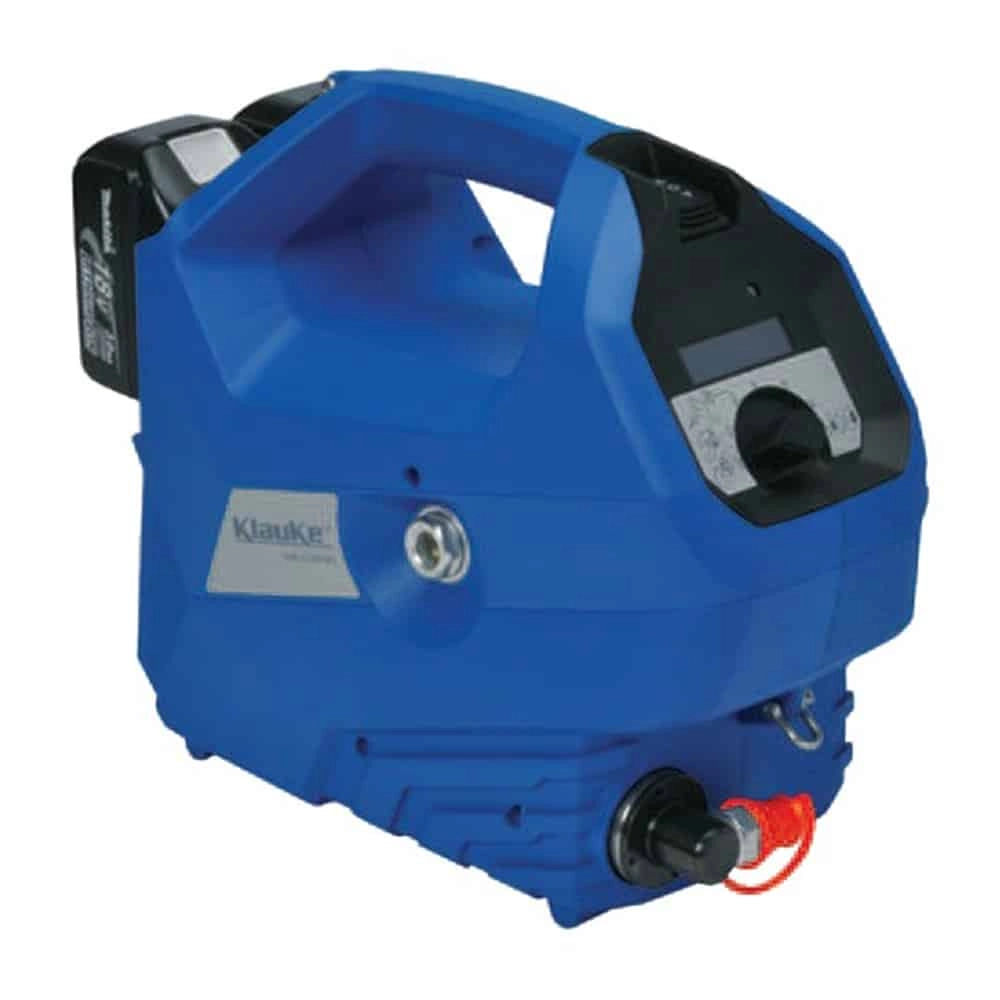

Klauke AHP700L252SETHL 18V Cordless Hydraulic Pump Set, 700bar
Model # AHP700L252SETHLKey Features
?
Question about this product?
Features
- Select program for crimping, cutting, and punching
- Housing of impact-resistant, fibreglass reinforced polyamide
- Large display for monitoring, diagnostics and setting the pump
- Two powerful, high-capacity Li-Ion batteries
- Automatic retraction when operation is complete
- Manual retract stop with "teach-in" (MRS+) for positioning control for multiple crimps
- Remote control with cable for easy operation of the battery-operated pump
- Maintenance display via LED
- All hydraulic hoses have coupling plug and coupling sleeve, oil filled
- High wearing comfort due to padded shoulder strap
- Compact and lightweight design for mobile use
- High capacity
Technical Information
- Max. Oil Volume800ml
- Operating Pressure700bar
- Ambient Temperature-12 to 40°C
- Dimensions330x160x280mm
- Voltage18V
- Battery Capacity4.0Ah
- Battery Charging Time22min.
- Weight including battery6.4kg (With two batteries approx.)

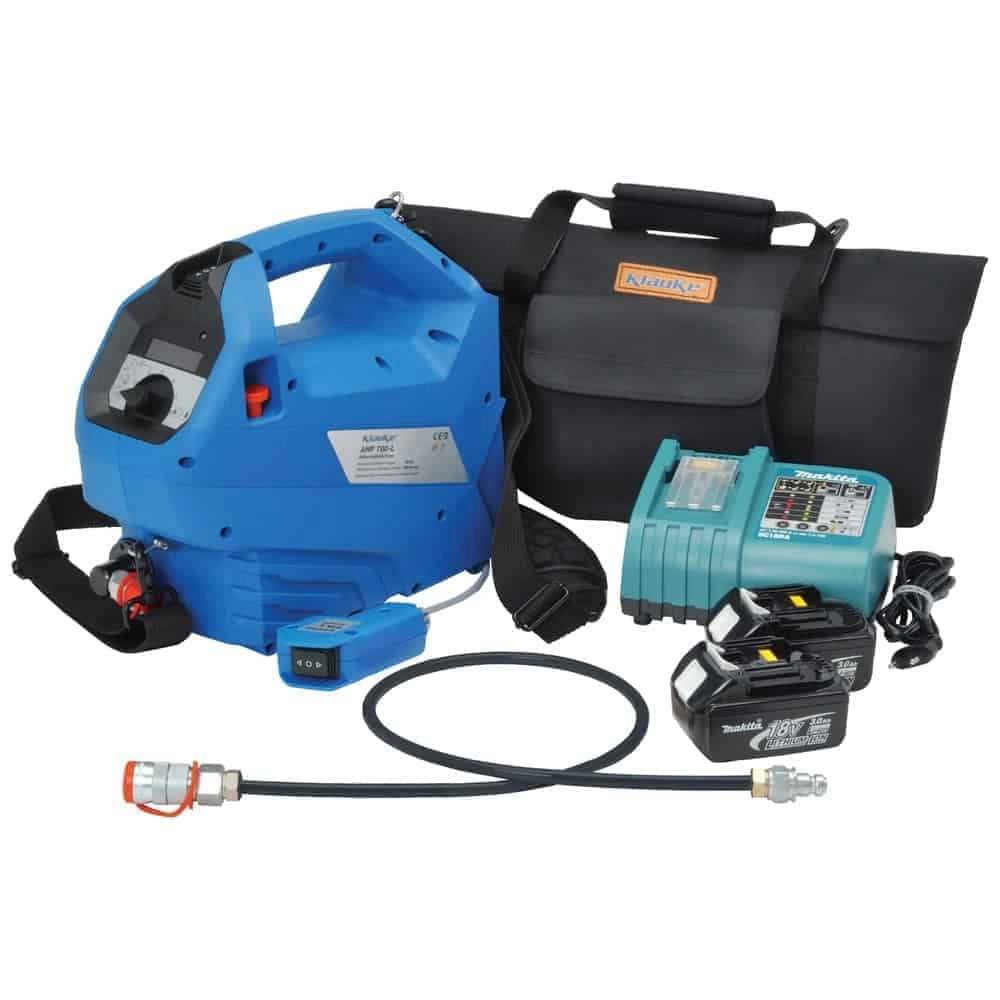

Items Included
- AHP 700 L Hydraulic Pump
- 25A13 - HK13 Dies Adapter For PK252
- HL13 Crimping Dies Set, 14-Pieces (16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500 and 630mm²)
- HTA4 - Hand Switch
- PK252 - Hydraulic Crimping Head
- HSOEL2 - High Pressure Hose
- TG3 - Carrying Strap
- KKAHP700L252SETH - Blue Plastic Case
- LGL1 - Battery Charger With Euro-Plug, Li-Ion
- RAL40 - Makita Battery 18V/ 4 Ah, Li-Ion
