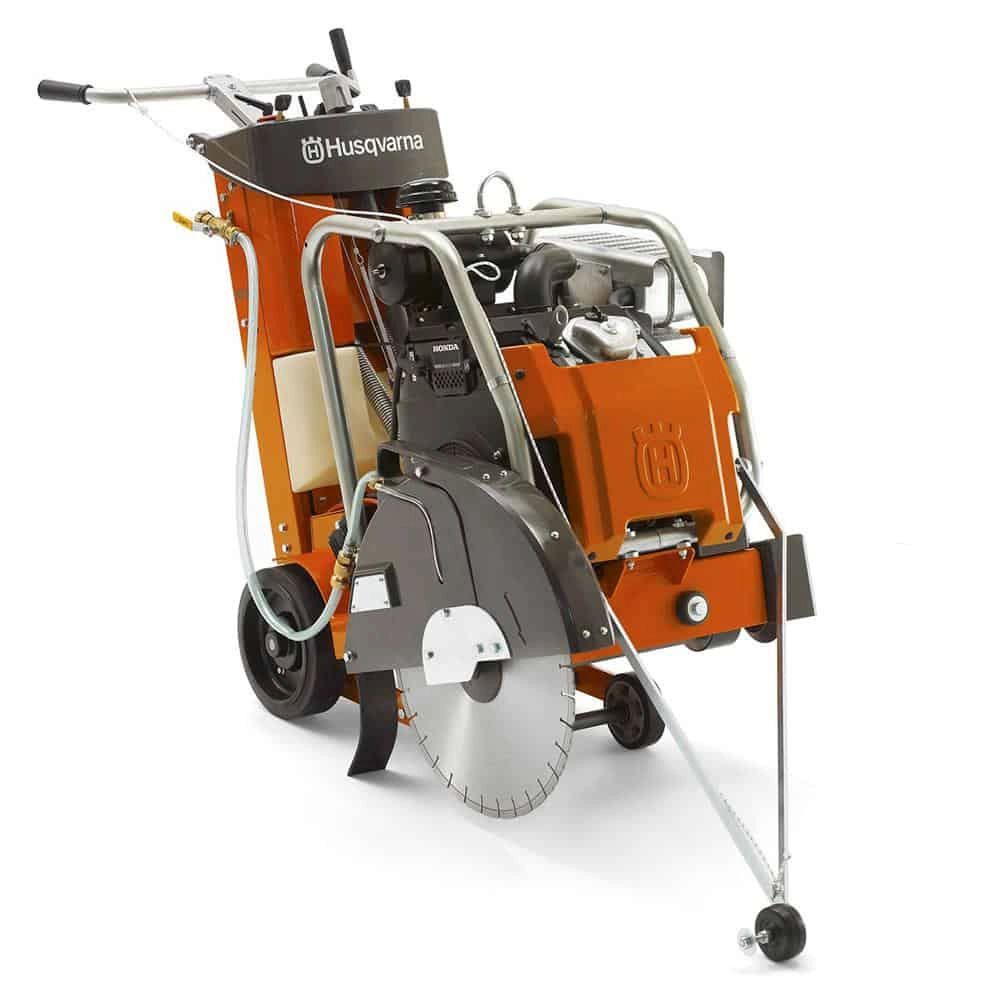

Husqvarna 967046102 FS 524, Floor Saw, 4-Stroke Engine, 15.5kW, 600mm

Features

• Our convenient FS 524 is a powerful, yet compact, self-propelled petrol floor saw ideal for asphalt and concrete cutting.
• Suitable for small to medium-sized service and repair jobs, up to 241 mm cutting depth.
• The optimal power transmission makes it ideal for more demanding jobs, despite its compact size. User-friendly and developed with a clear focus on your comfort.
• Self-propelled for easy operation and comfort.
• Low vibrations engine and blade shaft mounting system increases comfort and gives excellent cutting performance.
• Self-contained differential drive system eliminating drive gear from rear wheels and related wear. It is simple to handle and maintain.
• Enhanced belt tensioning system gives constant tension without need of re-tensioning, ensuring optimal performance and increased belt life.
• The IntelliSeal blade shaft system allows for a minimum of 250 maintenance-free hours without daily greasing of bearings.

Technical Information

• Blade Diameter600mm
• Power SourceGasoline
• Tank Capacity8.3L
• No. of Engine Stroke4
• Output Power15.5 kW
• Cylinders2
• Engine CoolingAir
• Max. Cutting Depth241mm
• Arbor Diameter25.4mm
• Sound Power Level109 dB(A)
• Sound Pressure Level88 dB(A)
• Vibrations left/front Handle1.8 m/s²
• Vibrations right/rear Handle2.4 m/s²
• Weight239 kg
• Dimensions1750 x 646 x 1200mm

Downloads

Datasheet
