Gazelle GM4590 220V 9 In. Angle Grinder (230mm), Deadman/Paddle Switch, 2200W

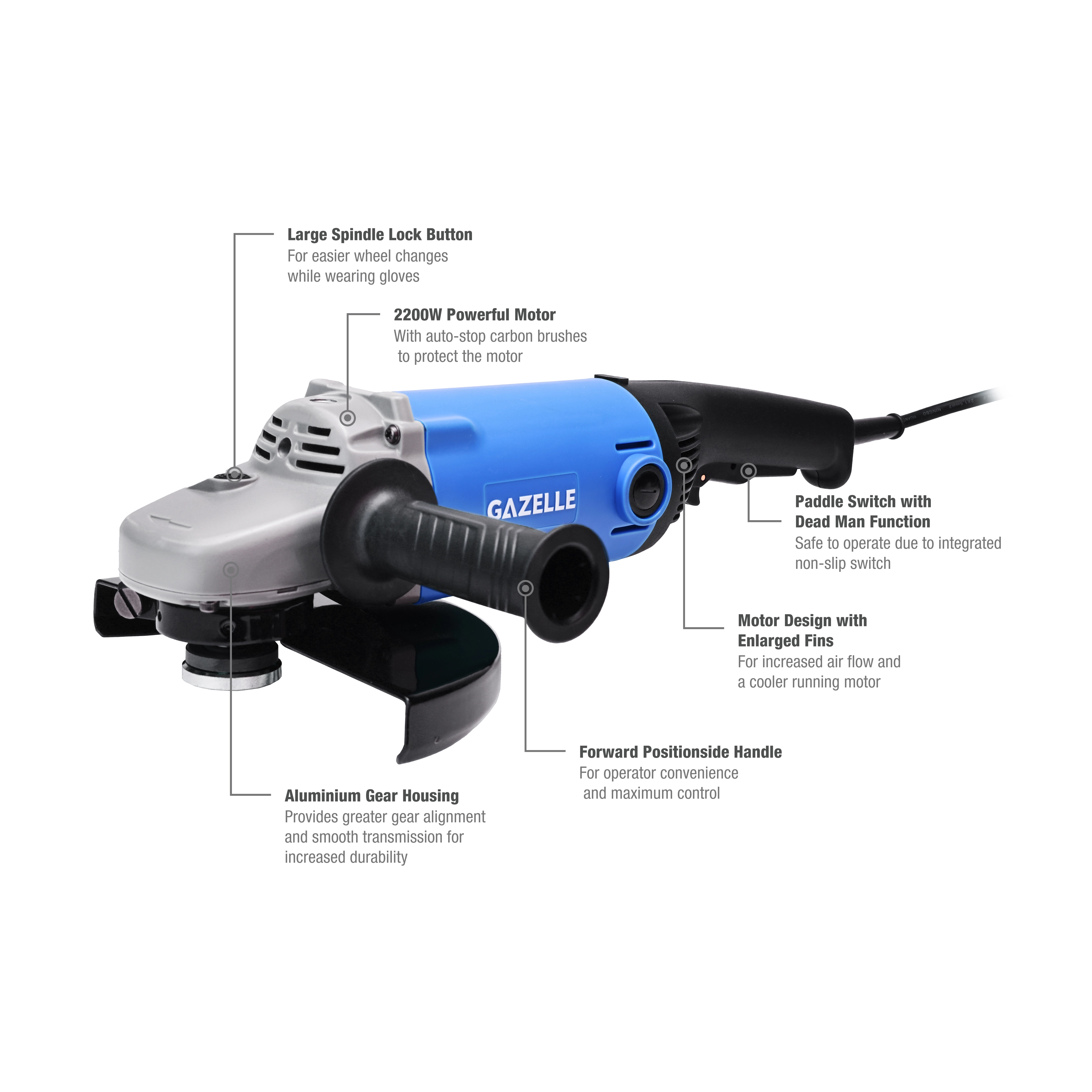

Features

• Powerful 2,200W motor delivers 8,300 RPM to complete the most challenging applications
• Paddle switch with dead man function: safe to operate due to an ergonomically integrated non-slip switch
• Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
• Soft start suppresses start-up reaction for smooth start-ups and longer gear life
• Motor fan is designed with enlarged fins for increased air flow and a cooler running motor
• Forward position side handle for operator convenience and maximum control
• Auto-stop carbon brushes to protect the motor
• Large spindle lock button for easier wheel changes while wearing gloves
• Aluminium gear housing provides superior gear alignment and smooth transmission for increased durability

Technical Information

• Power SourceCorded
• Voltage220V
• Rated Input Power2200W
• Blade Size230mm
• Bore Size22mm
• Switch TypePaddle Switch
• No Load Speed6600 RPM
• Spindle ThreadM14
• Weight5.0 kg

Items Included

• Auxiliary Handle
• Wrench
• Carbon Brush
