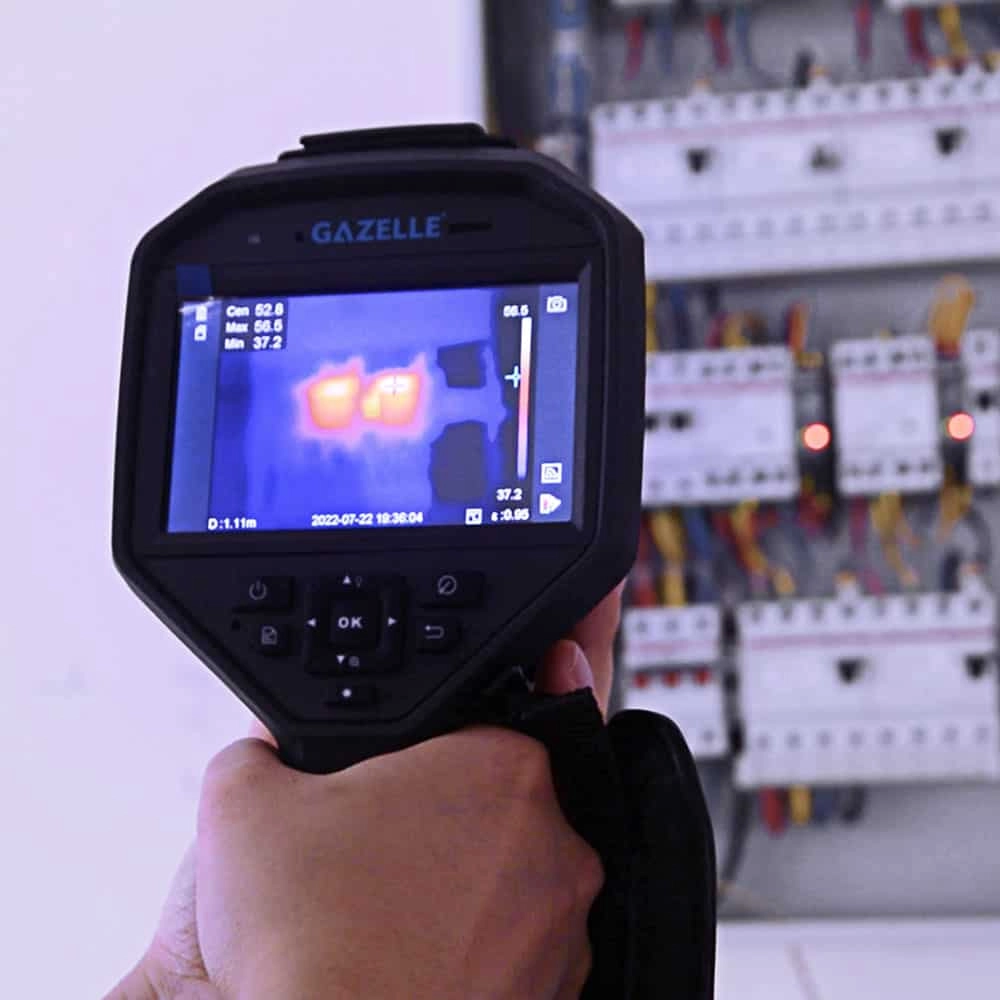

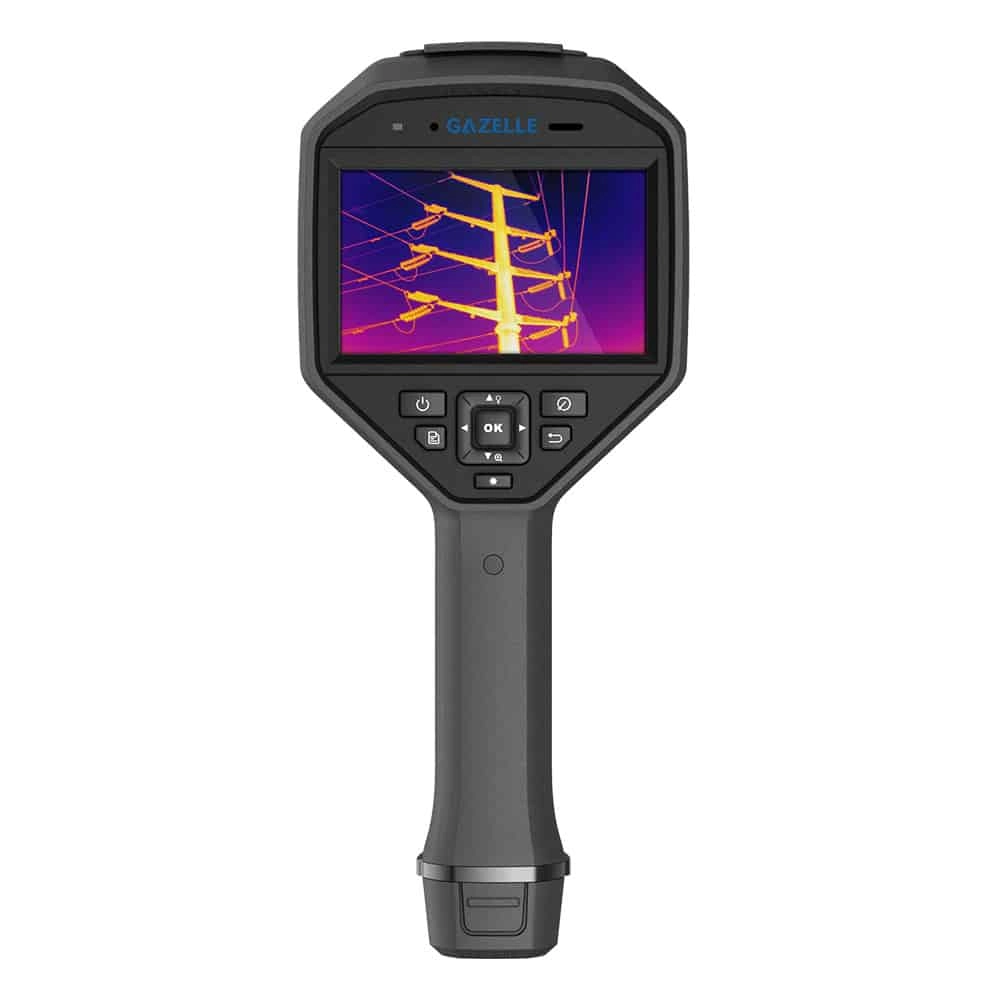

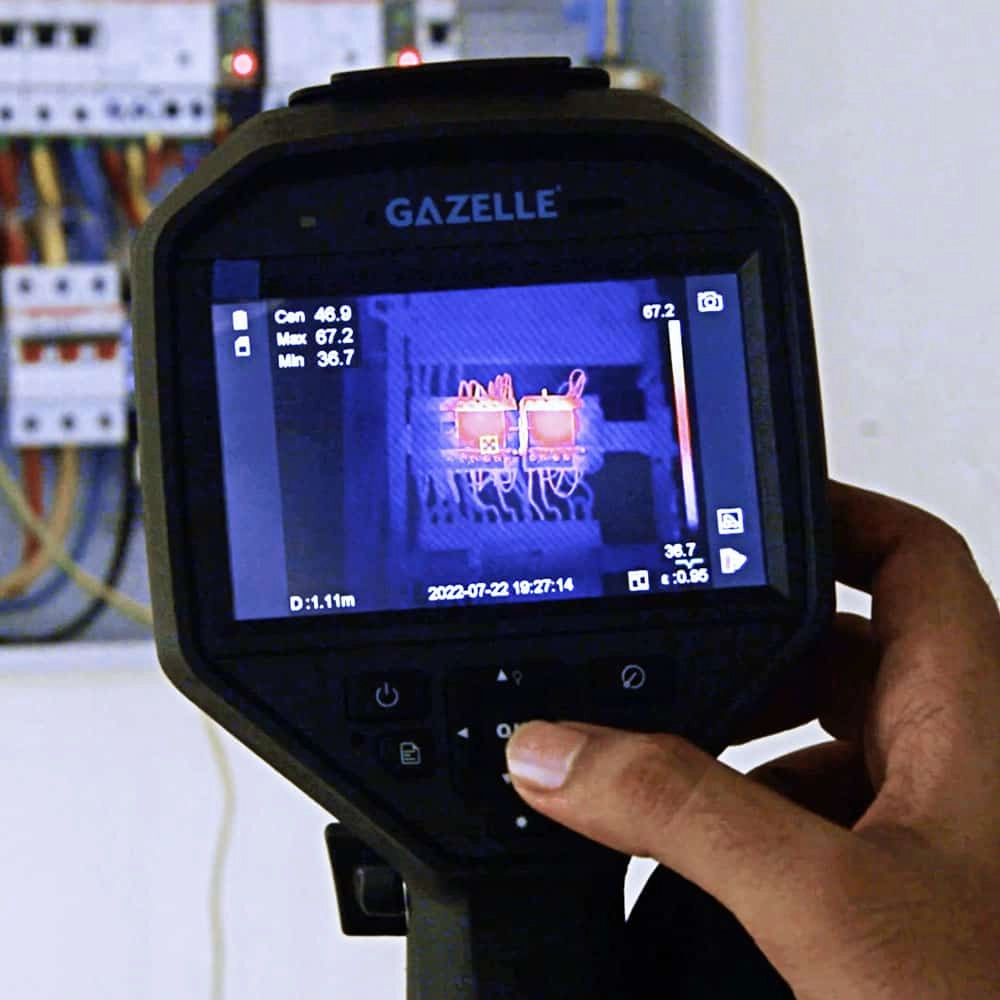

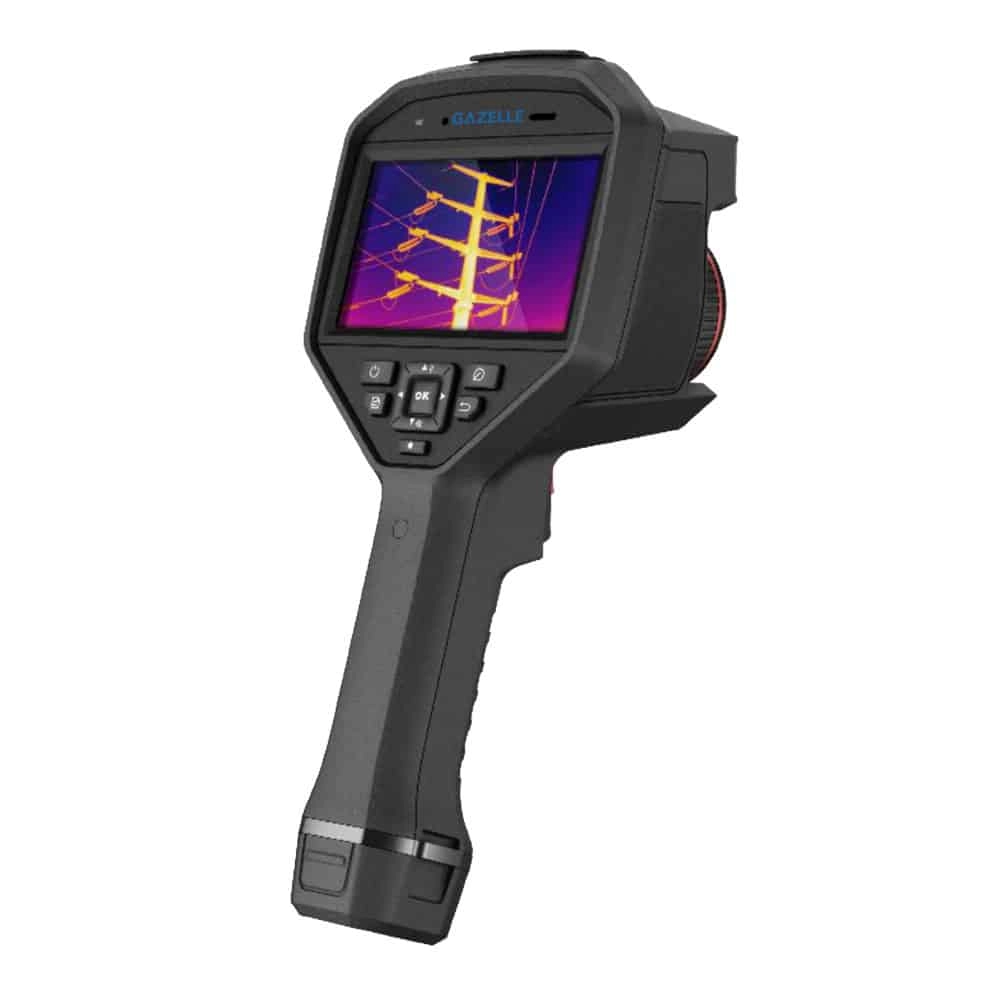

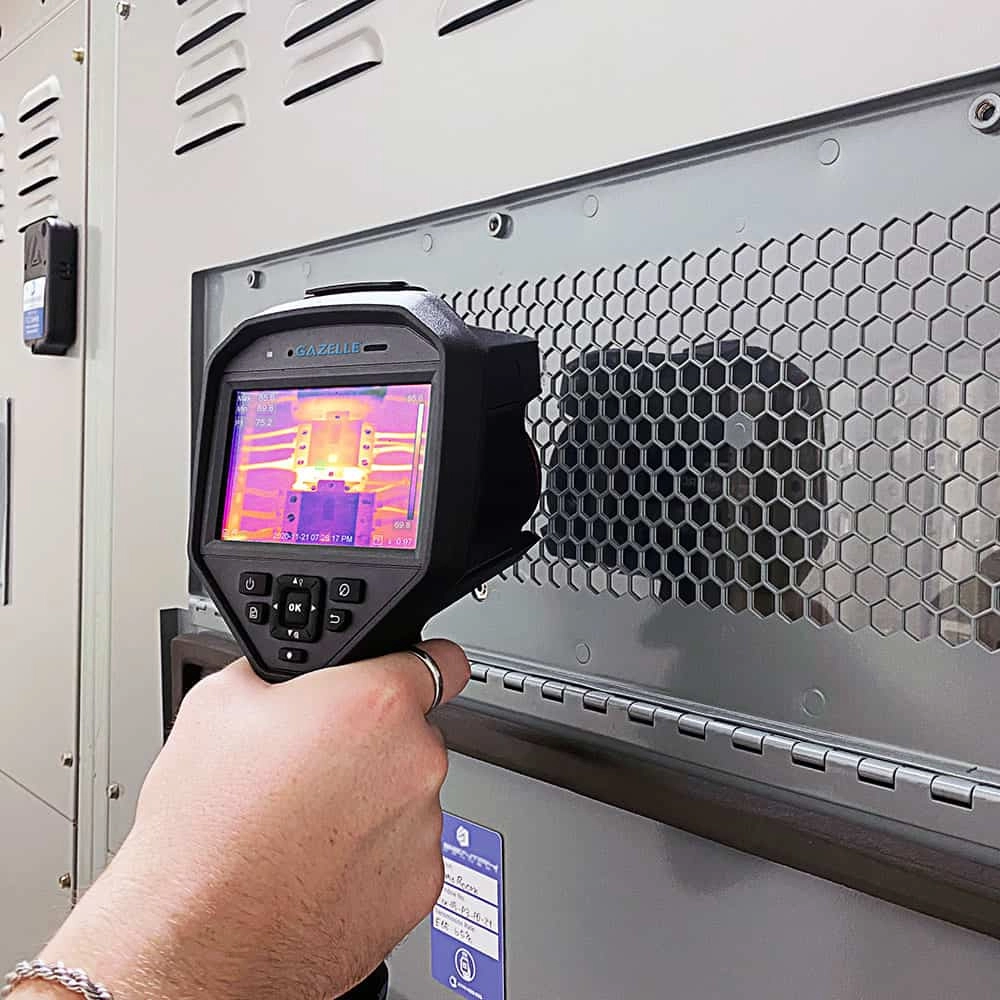

Gazelle G9706 Handheld Thermal Imaging Camera, -20 to 650°C, 640x512 Pixels

Features

• Thermal resolution: 640 x 512 (327 680 pixels)
• NETD: < 35 mK (@ 25 °C, F#=1.0)
• Temperature measurement range: -20 °C to 650 °C (-4 °F to 1202 °F)
• Accuracy: Max (±2 °C/3.6 °F, ±2%)
• Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point/Line/Area
• Auto/Manual/Laser focus
• 50 Hz image frequency
• 4.3” LCD touch screen display
• 8 MP optical camera
• Up to 4 hours continuous running

Technical Information

• Temperature Range-20 to 650°C
• IR Resolution640x512 pixels
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Pixel Pitch17µm
• Field of View25°x19°
• Focal Length25mm
• Spatial Resolution (IFOV)0.68mrad
• ApertureF1.1
• Image Frequency50Hz

Items Included

• Quick Start Guide (x1)
• Type-C Cable (x1)
• Hand Strap (x1)
• CVBS Cable (x1)
• Charging Base (x1)
• Battery (x2)
• Micro SD Card (x1)
• Box (x1)
• Tools Package (x1)
• Charger (x1)
• Lens Cover (x1)
