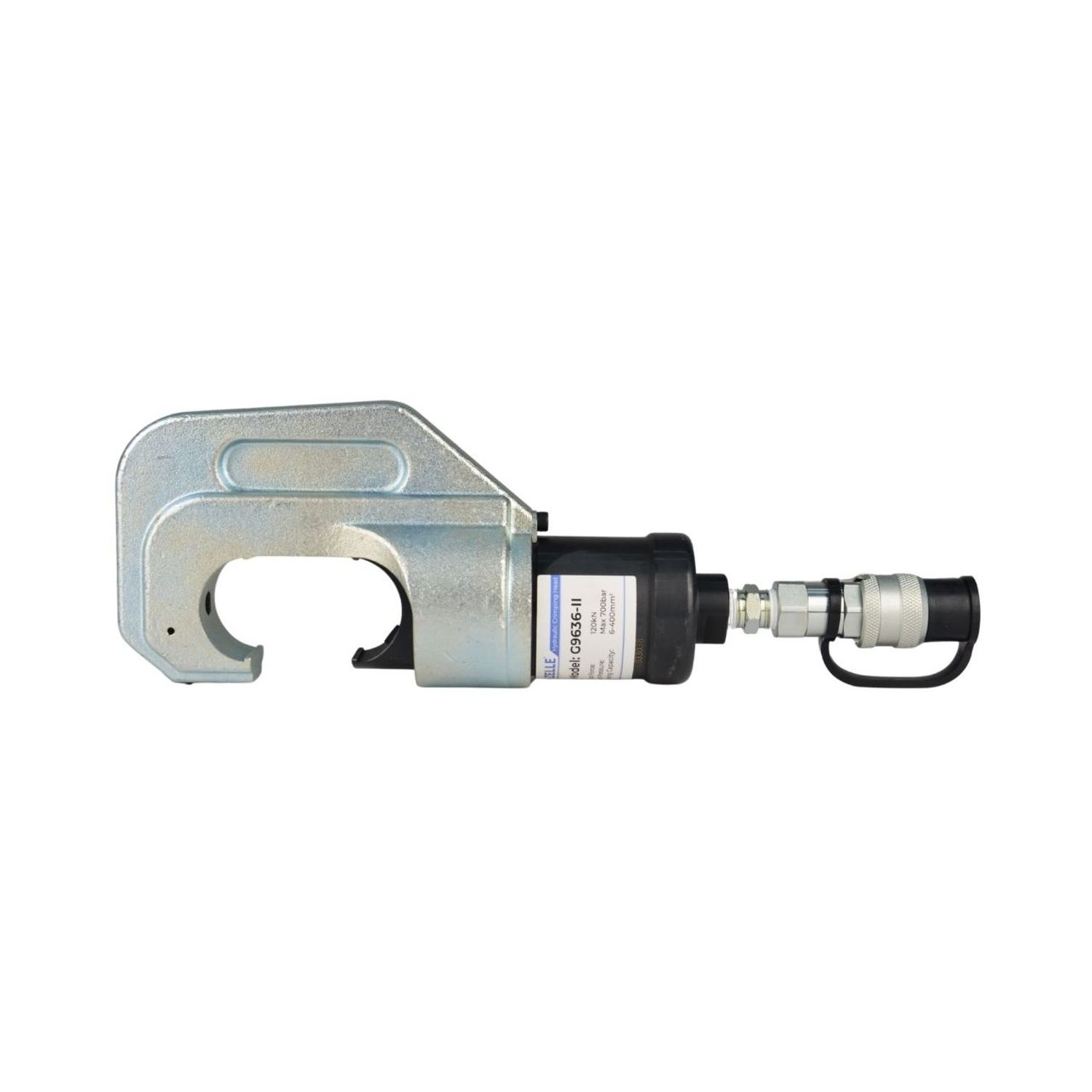

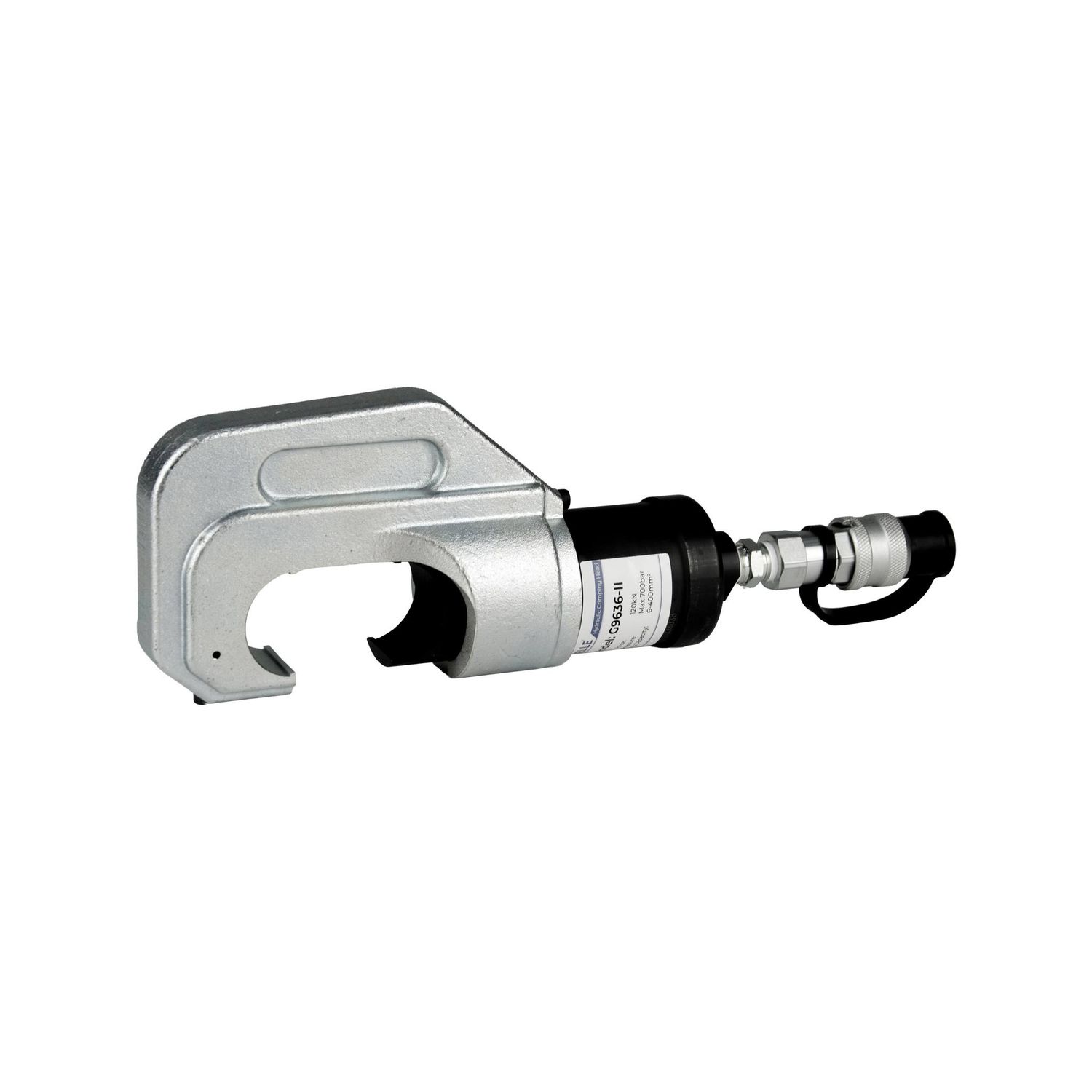

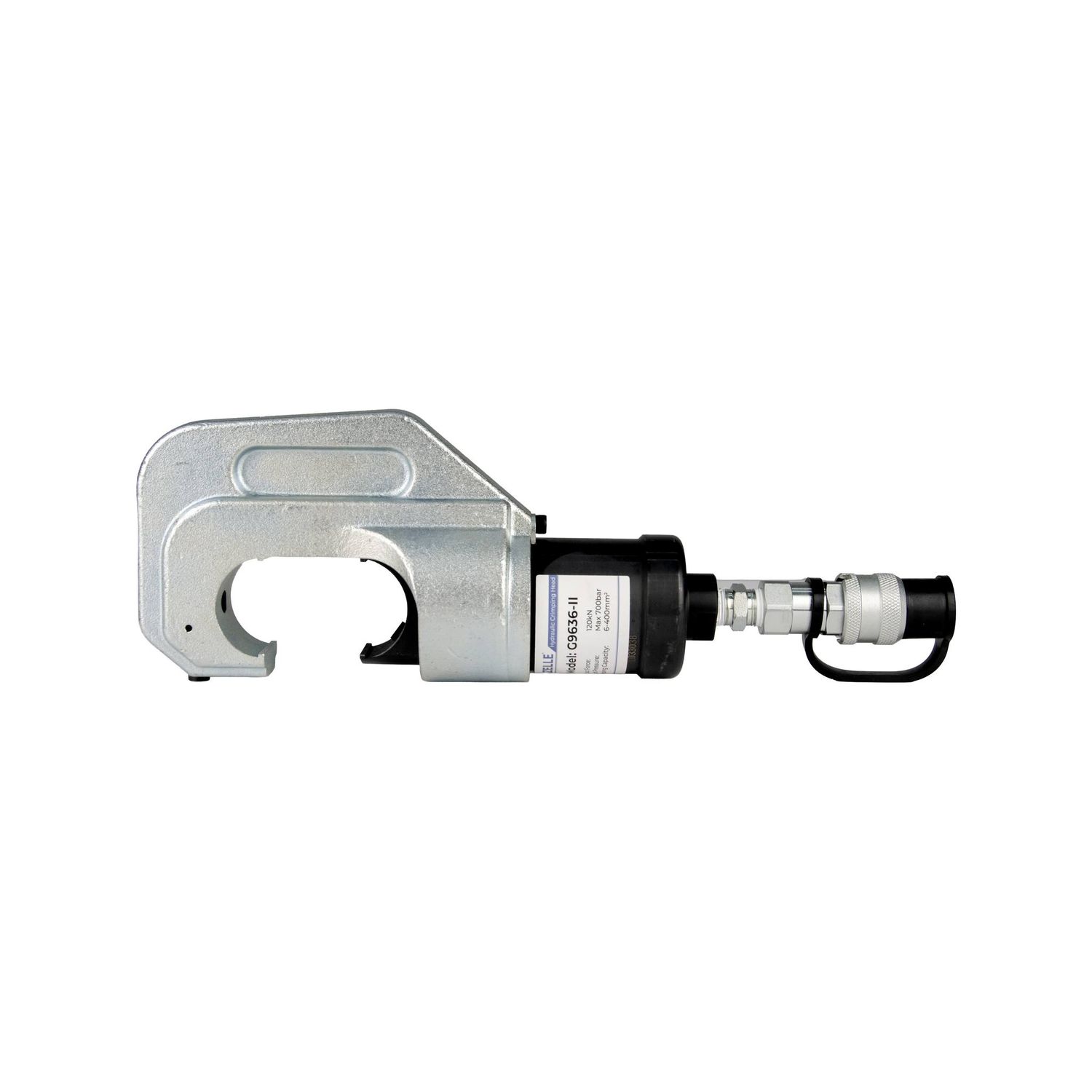

Gazelle G9636-II 400mm² Hydraulic Crimping Head with Dies - 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm²

Features

• C-type crimping head, sturdy and durable quick couple for easy disassembly
• Powered by single acting hydraulic pump
• Light weight, suitable for overhead line work and tight spaces

Technical Information

• Crimping Force12T
• Stroke42mm
• Rated Pressure700bar
• Crimping Capacity400mm²
• Weight5.5kg
• PackagingCanvas Bag

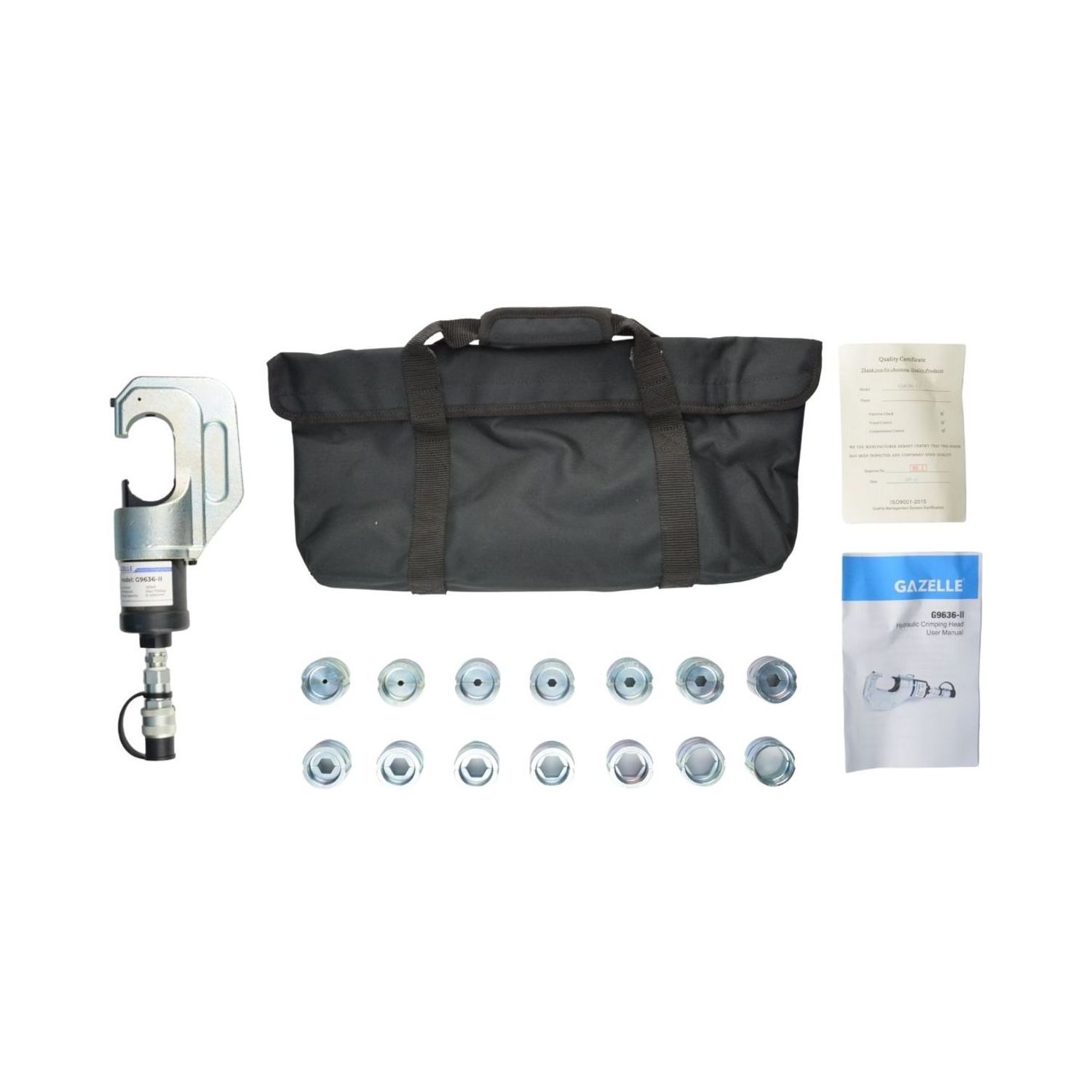

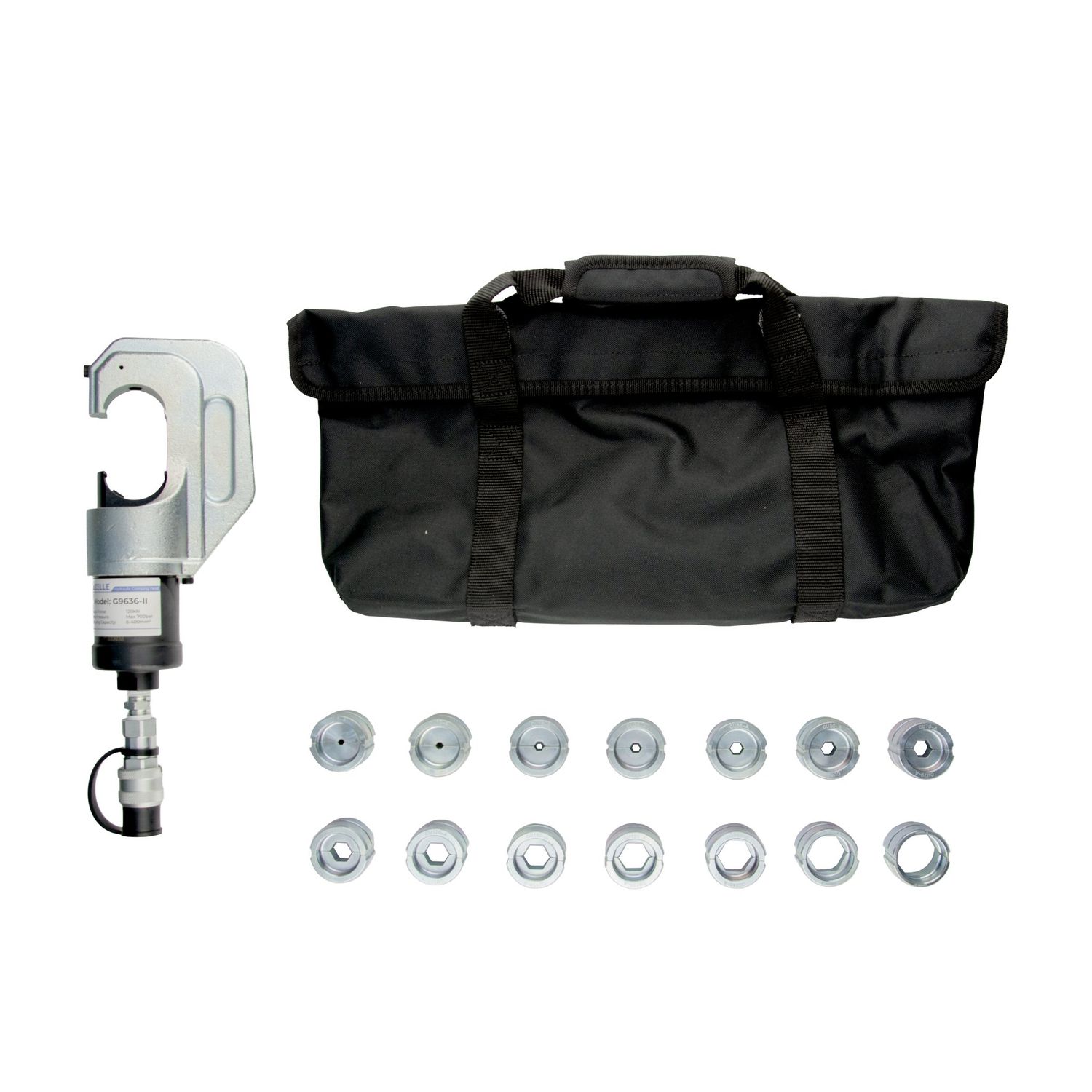

Items Included

• Crimping Dies 6-400mm²
• Canvas Carrying Bag

Downloads

Datasheet
