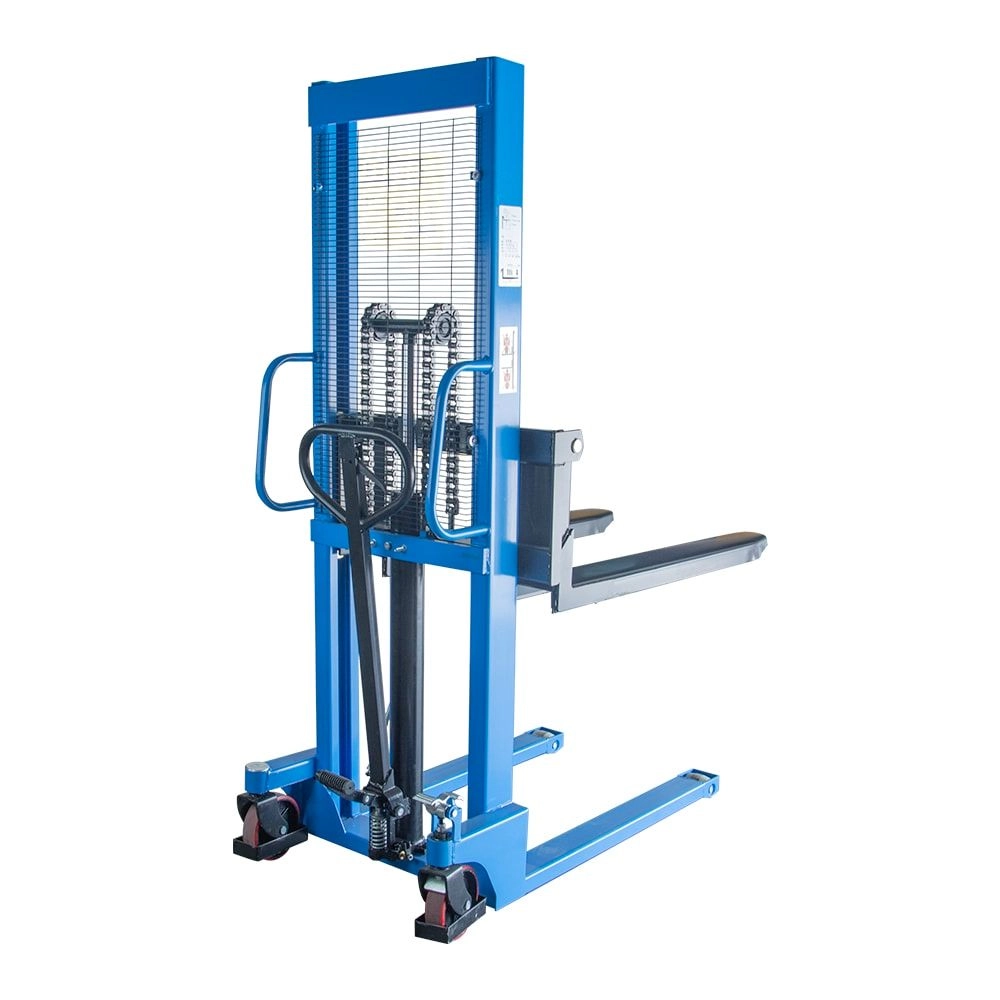

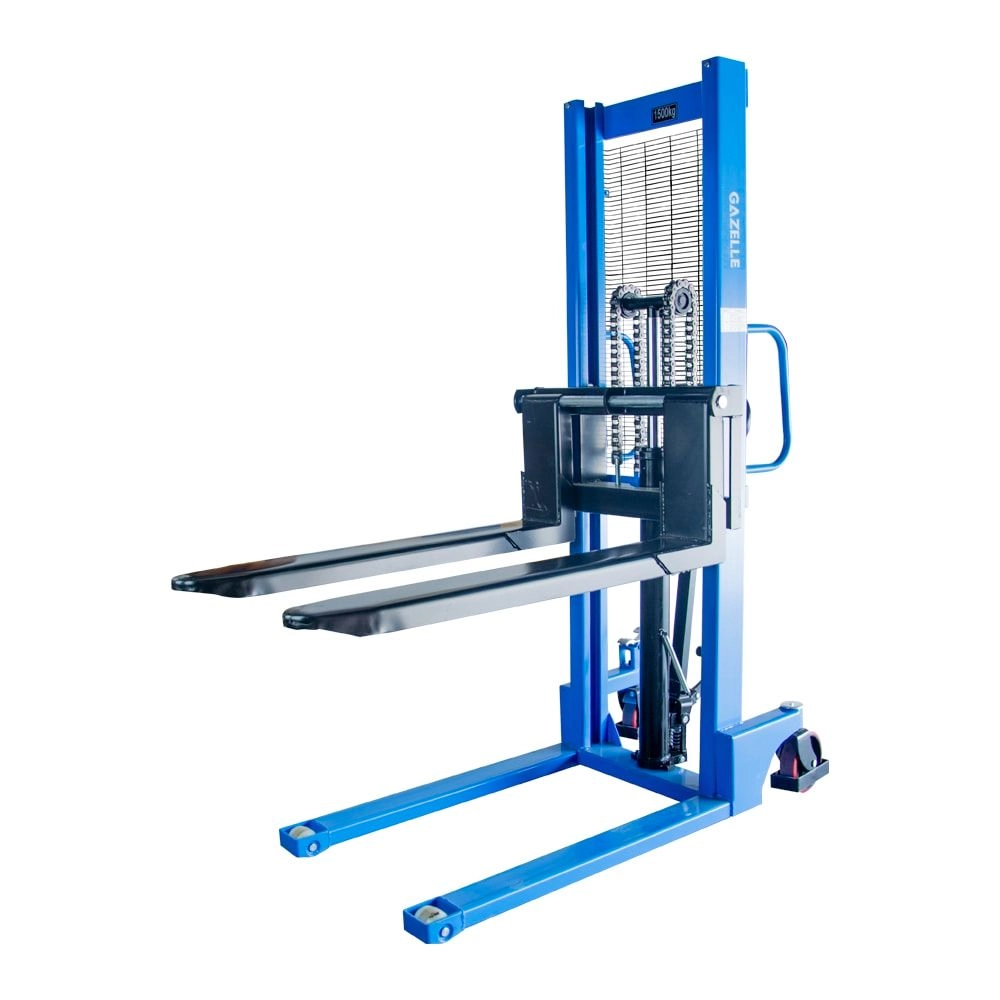

Gazelle G2537 1.5 Ton Hand Stacker (1500kg)

Features

• Used for loading goods onto or unloading goods from pallets & stacking goods
• Compact truck body, especially suitable for narrow aisles and small spaces
• Seal rings conforming to German standards ensure excellent performance
• Frame constructed of high-strength C type steel
• The cylinders use high precision drawn tubes which prevents the seal rings from damage and leakage
• Press resistant caster bracket protects the operator from injuries
• Foot pedal provides an additional option for convenient lifting

Technical Information

• Load Capacity1500kg
• Load Center600mm
• Max Lift Height1600mm
• Min Fork Height85mm
• Min Mast Height2030mm
• Fork Length1150mm
• Fork Width330-740mm
• Overall Length1670mm
• Overall Width834mm
• Weight345kg
