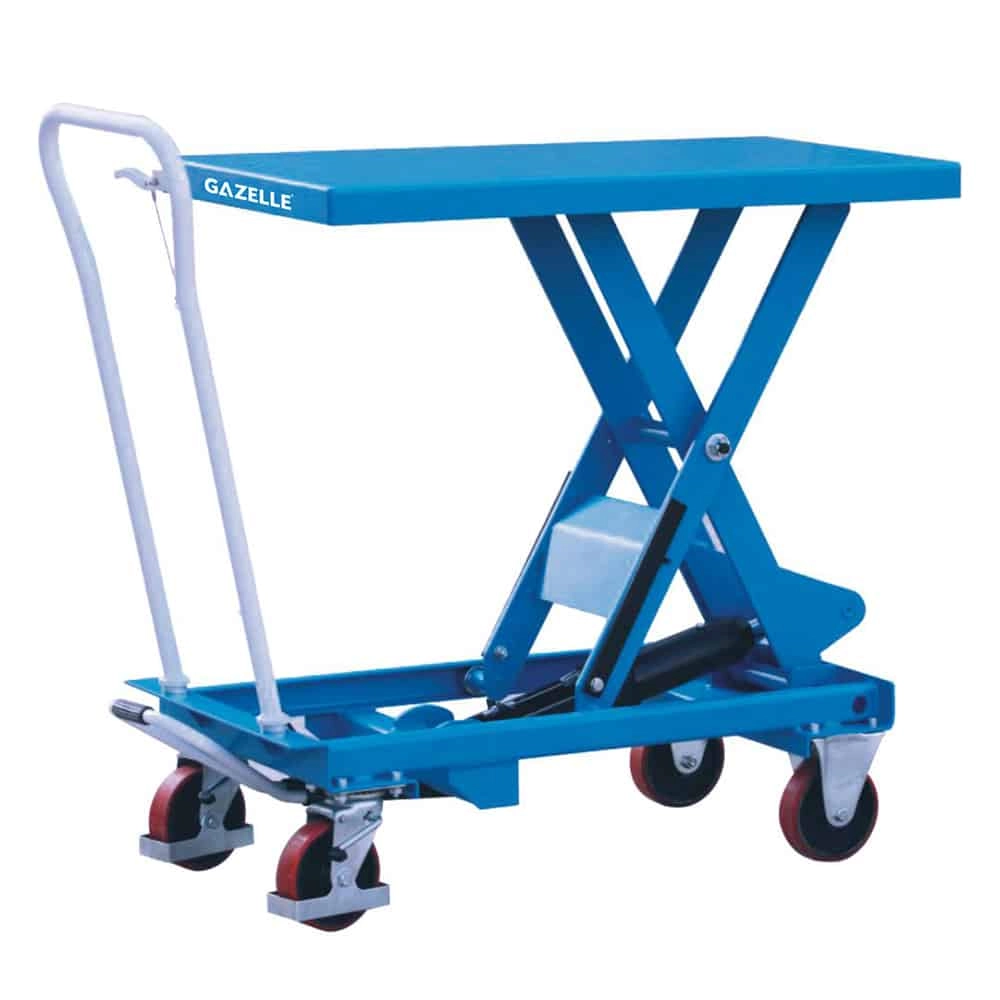

Gazelle G2534 Scissor Lift Table Truck, 500kg

Features

• Fitted with an overload valve design to prevent misuse of the truck & reduce the maintenance cost
• Each cylinder is equipped with an internal hydraulic velocity fuse
• The heavy-duty steel construction is engineered to put up with tough environments
• Raise and lower the deck with minimum pain and strain
• Fitted with nylon wheels
• Two rigid front casters and two rear swivels (with brake) are more maneuverable in tight areas
• Prevents worker bending and lifting, which reduces the risk of injury
• Safety stops minimize the risk of an empty deck from lowering while performing maintenance

Technical Information

• Load Capacity500 kg
• Platform size85 x 50 x 5 cm
• Max Table Height90 cm
• Min Table Height34 cm
• Overall size85 x 50 x 90 cm
• Packing size95 x 66 x 54 cm
• Self weight84.5 kg

Downloads

Datasheet
