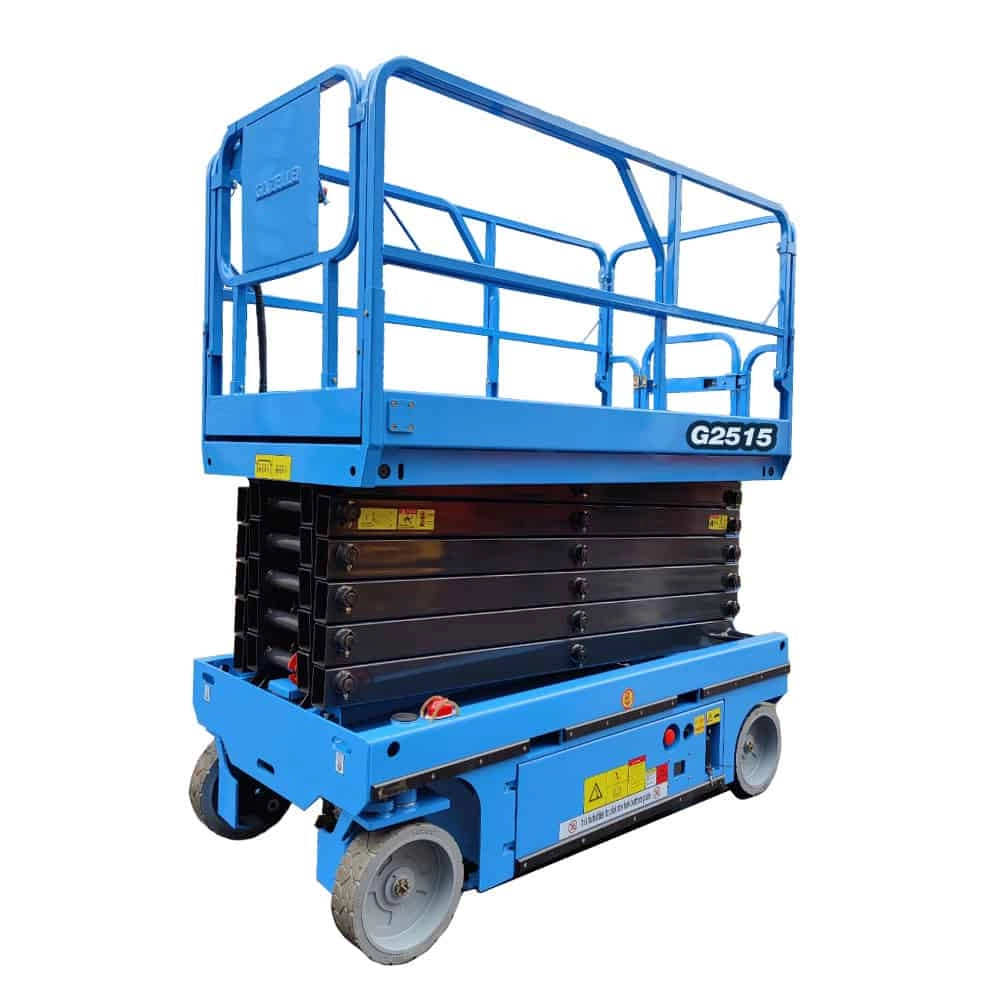

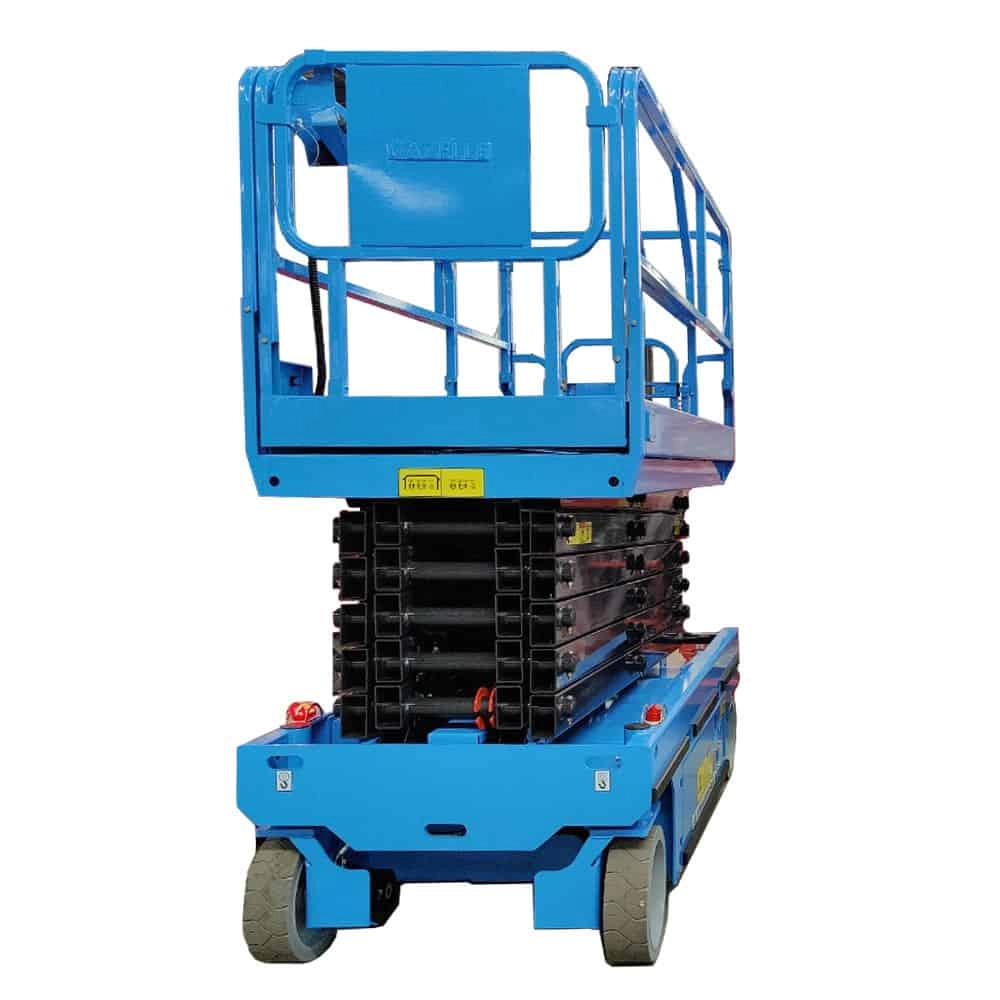

Gazelle G2515 12m Self Propelled Scissor Lift Platform, 320kg

Features

• 2-wheel steering with hydraulic motor drive provides excellent maneuverability in tight spaces
• Variable drive speeds based on platform position (raised/stowed)
• Extension deck with foldable guardrails ensures maximum safety without compromising ease of access
• Tilt sensor and descend alarm keeps the user alert
• Safety overhaul support
• Intelligent charger preserves battery life.
• Pothole protection with emergency descent feature
• Emergency release brake
• Platform includes an anti-collision feature to keep the user safe

Technical Information

• Load Capacity320kg
• Max Platform Height12m
• Working Height14m
• Platform Size2.32x1.13m
• Extended Platform Capacity100kg
• Extended Platform Length900mm
• Voltage (DC)24V
• Overall Size (LxWxH)2.5x1.2x2.6m
• Motor Rating4.5kW
• Drive Speed (Stowed)4km/h
• Drive Speed (Raised)0.8km/h
• Weight3090kg

Downloads

Datasheet
