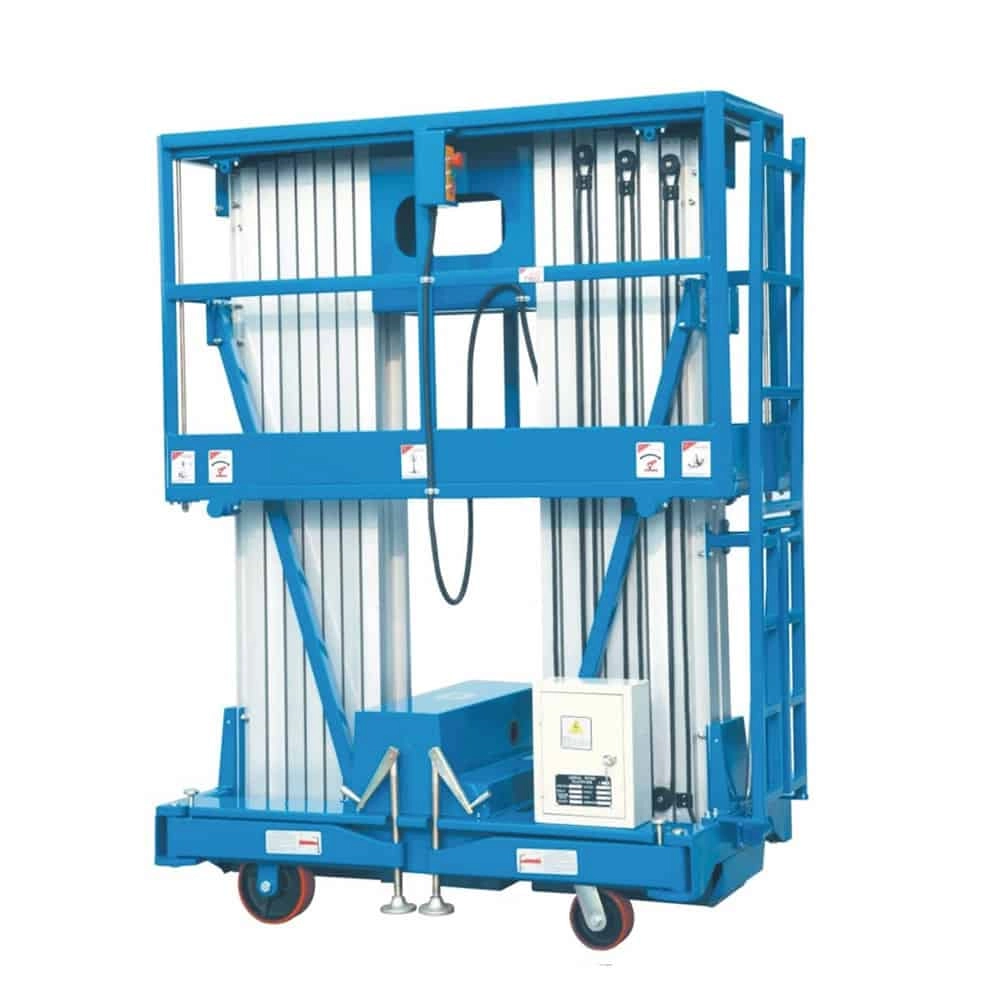

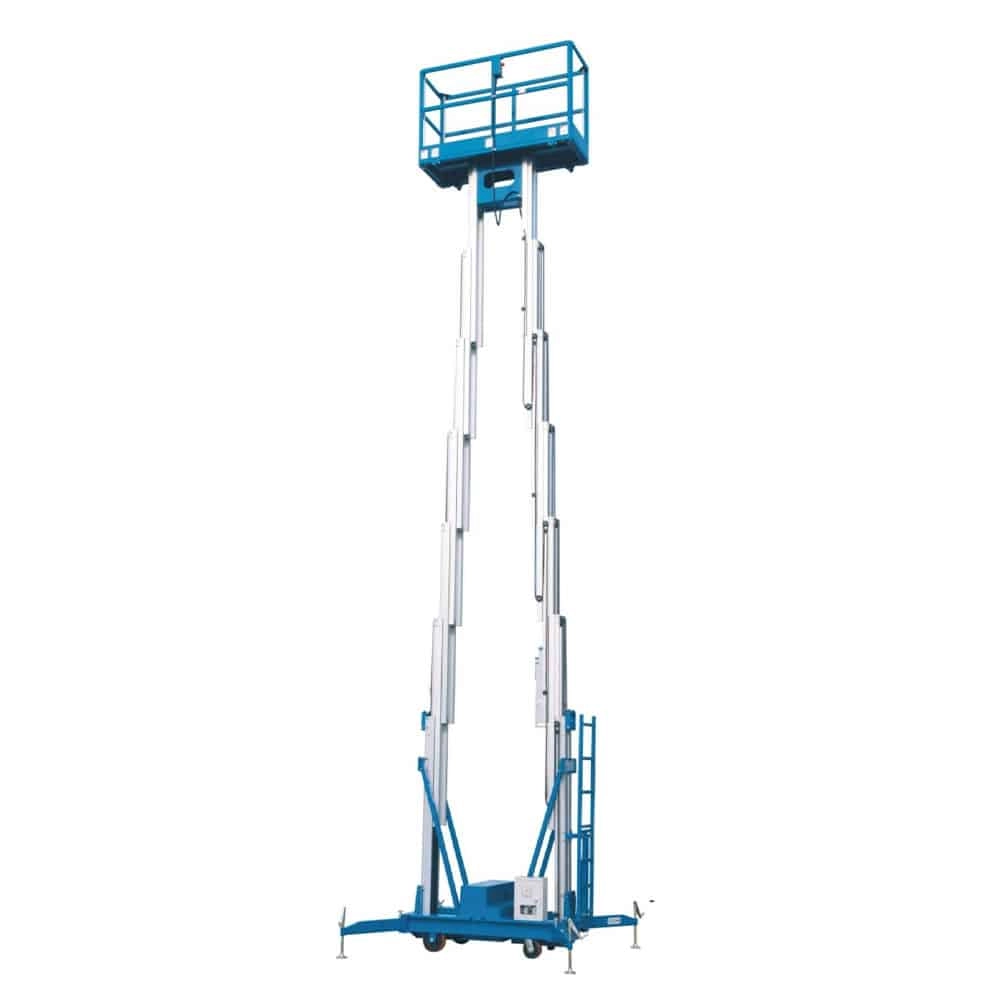

Gazelle G2512 12m Double Mast Aerial Work Platform

Features

• Rigid aluminium alloy profile
• Suitable for operation by a single worker
• Fitted with Italian hydraulic systems
• Equipped with anti-explosion valve for lube
• Easily rolls through a narrow space
• Auxiliary platform lowering
• Overload protection
• Emergency stop button
• Expandable legs for better stability
• DC working power on the platform

Technical Information

• Load Capacity200kg
• Max Platform Height12m
• Working Height13.7m
• Platform Size1.4x0.88m
• Support Leg Expand2.45x2.4m
• Ground Clearance80mm
• Overall Size (LxWxH)1.75x0.8x2.0m
• Voltage (AC)220V
• Voltage (DC)24V
• Weight780kg

Downloads

DatasheetDatasheet
