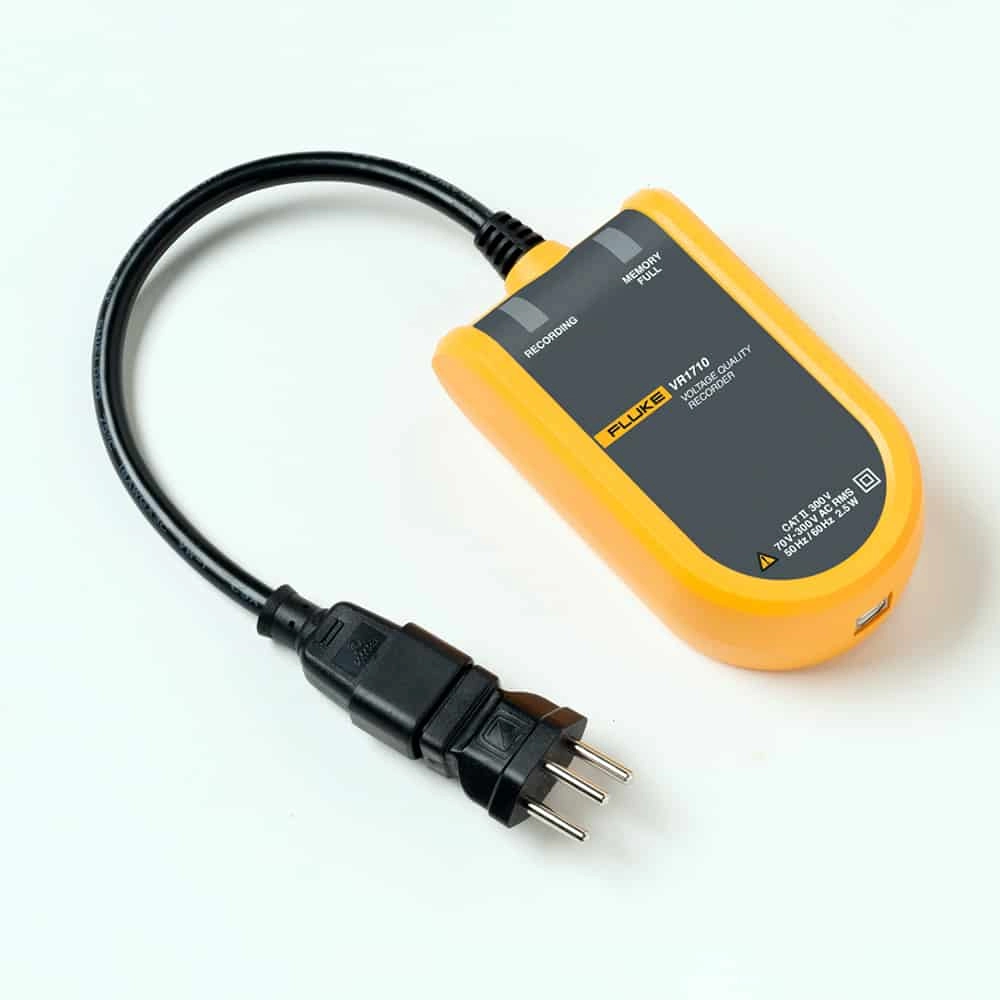

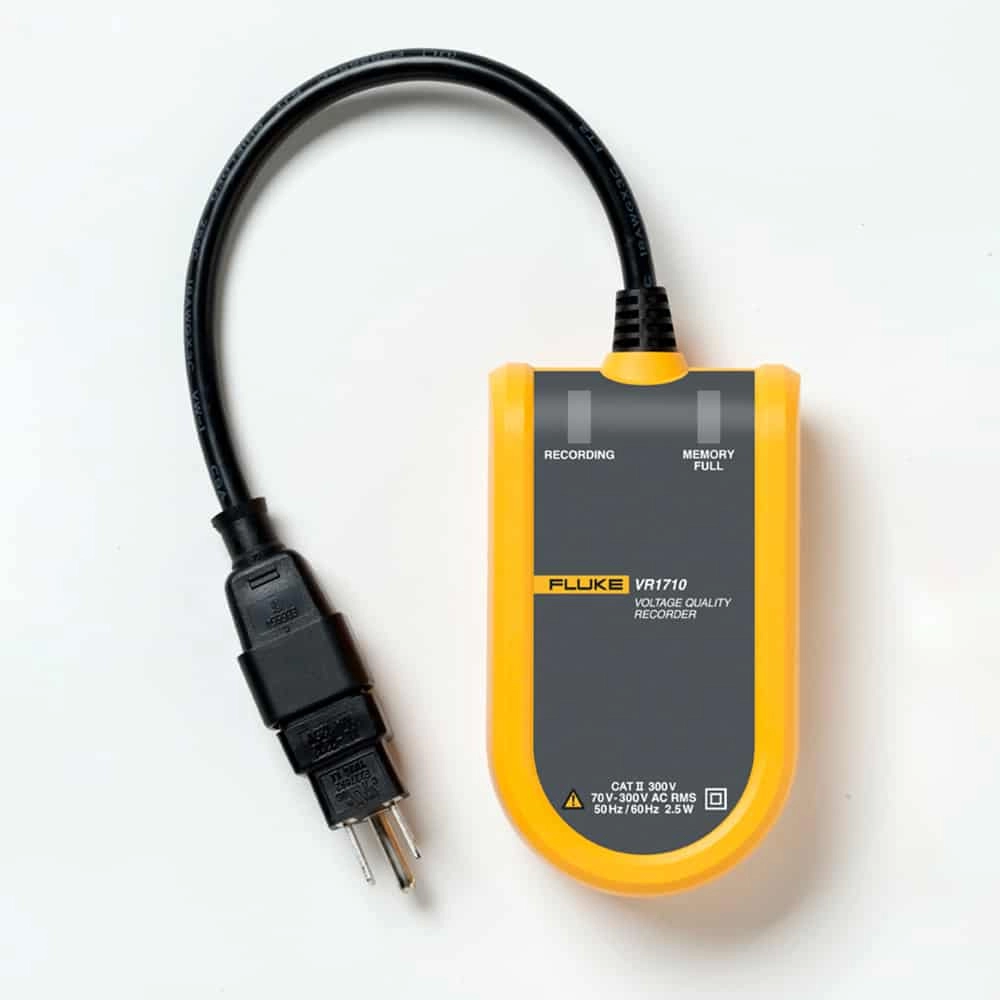

Fluke VR1710 Voltage Quality Recorder, Single-Phase, 70 to 280V

Features

• Fast and easy recording of voltage trends; dropouts; and power quality – Easily pinpoint the root cause of single phase voltage problems
• Extremely easy to use – Plug directly into the mains power socket and capture data
• Continuous recording of all values with no gaps – Save testing time by getting the whole picture with one instrument that records both events and voltage
• Clear graphical summary of data and quick overview of key power quality parameters – Take the guesswork out of diagnosing voltage quality problems
• Min, Max, and Average RMS values (1/4 cycle) with time stamp Quickly see what happened and when
• Actual transient display (>100 Ωs) with time stamp Identify power quality issues quickly with included graphical software
• Flicker recording to EN 61000-4-15, individual harmonic and THD values with trends Easily identify if the problem is power quality or equipment related
• Statistical analysis of single phase voltage events - Reduces analysis time by tracking event quantities and magnitudes

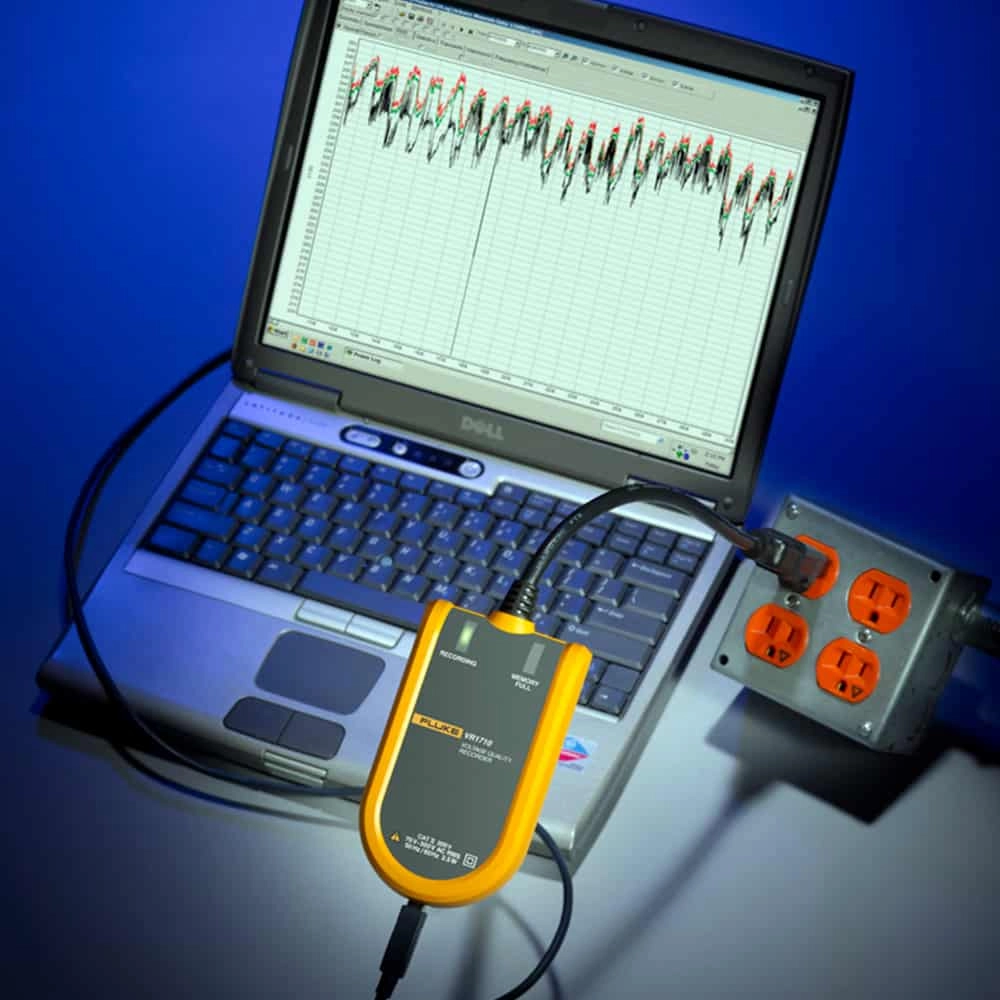

• Includes PowerLog software package for quick download, analysis, and automatic reporting Save time by generating power quality reports automatically with pre-set templates

Technical Information

• Operating voltage70 V to 280 V
• Min/Max/Avg RMS valueResolution 0.125 V
• Number of events175,000
• Time resolution5 ms
• Voltage resolution0.125 V
• Frequency Range50 Hz ± 1 Hz and 60 Hz ± 1 Hz
• SafetyCAT II 300 V

Items Included

• Plug-in Fluke VR1710
• USB cable
• PowerLog software CD

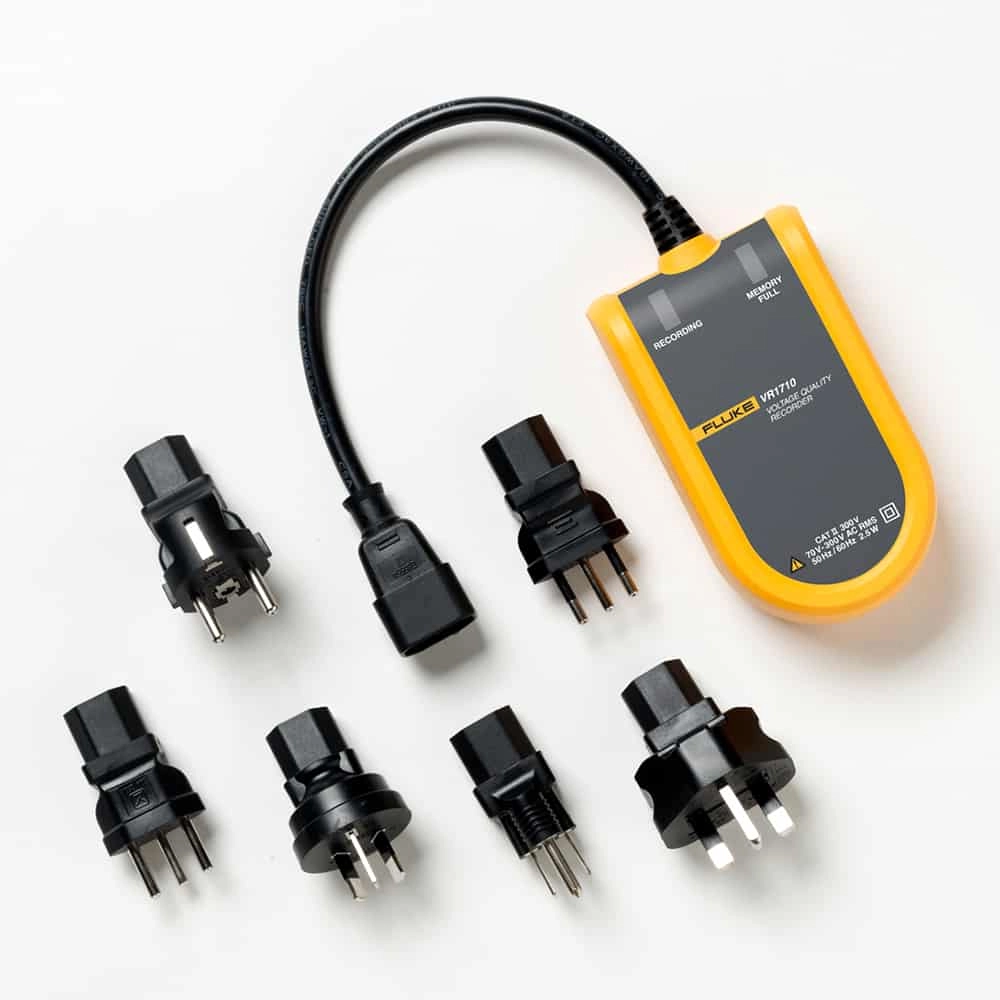

• Universal power cord adapters

Downloads

Datasheet
