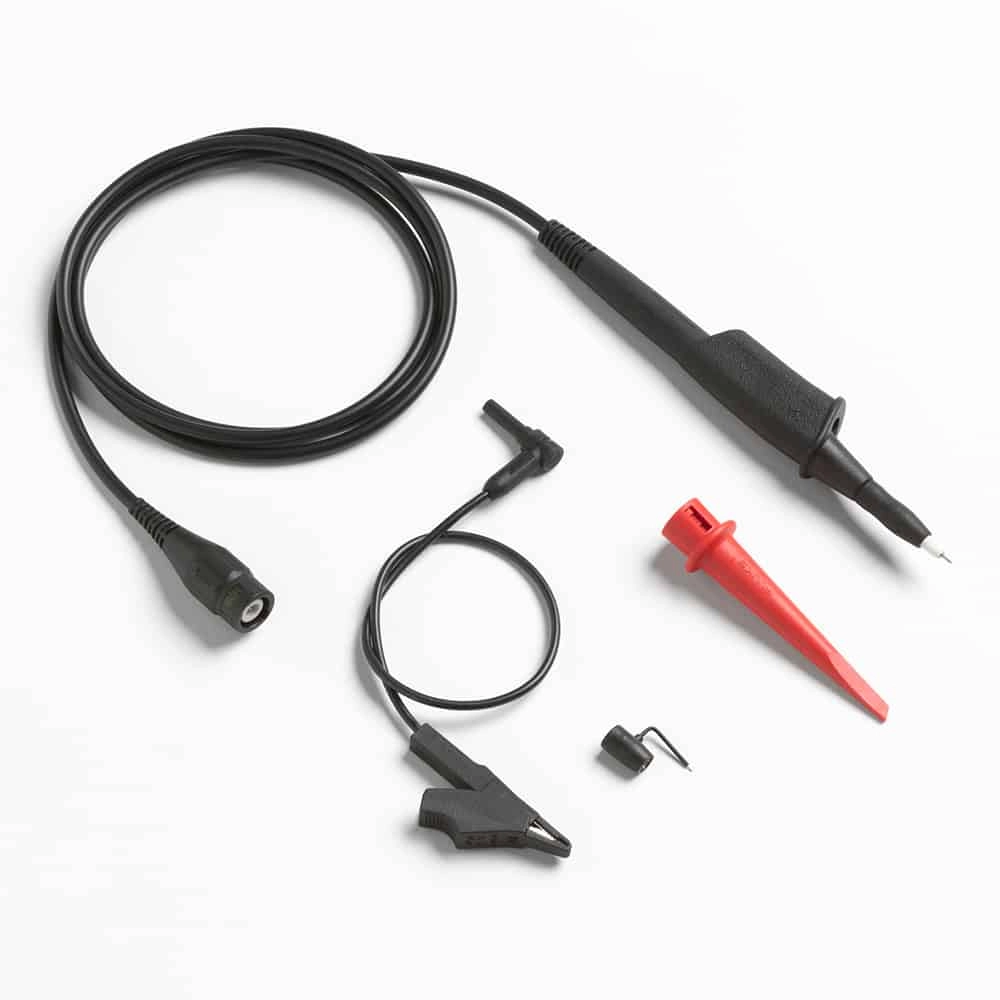

Fluke VPS101 1:1 Voltage Probe Set, Black, 30 Mhz, 1.2M

Model # VPS101

Key Features

Brand: Fluke
Model: VPS101
Warranty: 1 year

Qty:

Qty:

?

Question about this product?

Speak to an expert

Features

Probe set includes 300V CAT III rated, 1:1 voltage probe, hook clip for probe tip, ground lead with mini alligator, insulation sleeve, 30V CAT II rated ground spring for the probe tip
Bandwidth: 30 MHz
Input resistance: 1 megaohm
Input capacitance: 42 pF plus input capacitance of instrument

Technical Information

Attenuation 1x
Bandwidth 30 MHz
Max. input voltage 300 V CAT III
Max. voltage to ground 600 V CAT III per IEC / EN61010-031
Input resistance 1 MΩ
Input capacitance 42 pF + input capacitance of instrument
Cable length 1.2 m

Items Included

300 V CAT III rated 1:1 Voltage Probe Hook Clip for Probe Tip Ground Lead with Mini Alligator Insulation Sleeve 30 V CAT II rated Ground Spring for Probe Tip
