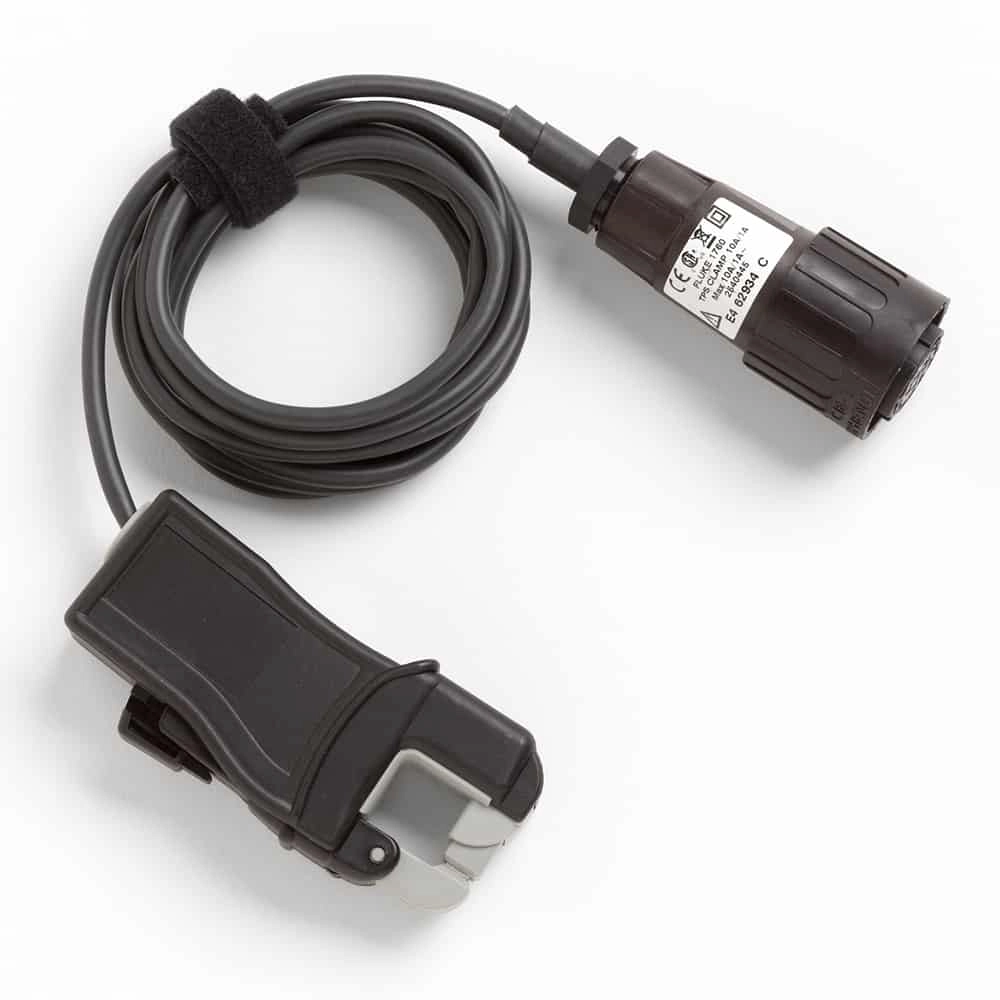

Fluke TPS CLAMP 10A/1A Clip-On Current Transformer, 10A/1A, for Fluke 1760 Power and Energy Loggers

Features

• Measurement range: 0.01A to 1A/0.1A to 10A AC
• Peak current for sinusoidal currents: 3.7A /37A
• Intrinsic error: 0.5%
• Frequency Range: 40Hz to 10kHz

Technical Information

• Measuring Range selectable per software0.01 A to 1 A
• Peak current for sinusoidal currents3.7A
• Intrinsic error0.5%
• Frequency Range40 Hz to 10 kHz
• Operating Voltage300 V CAT IV
• Phase Error0.5°
• Jaw Opening15 mm diameter or 15 x 17 mm bus bars

Downloads

Datasheet
