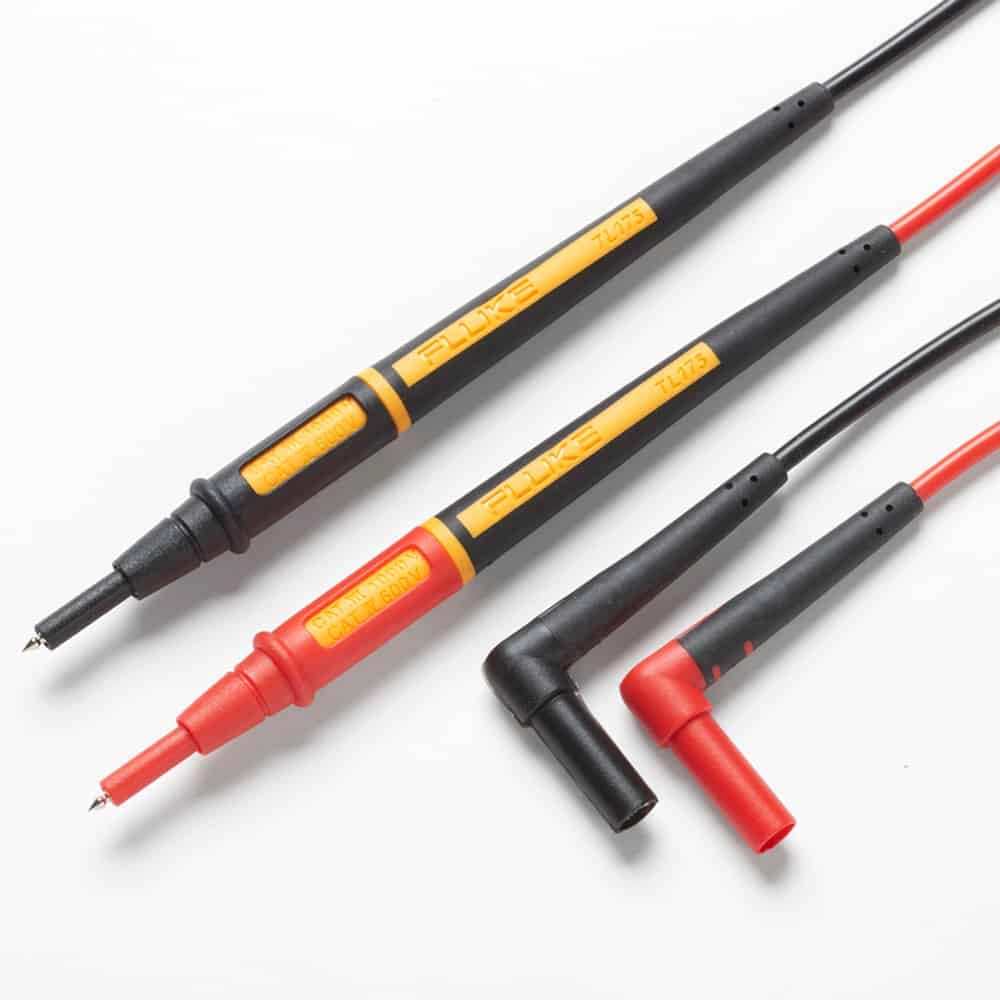

Fluke TL175 Twistguard Test Leads; 2 mm Diameter Probe Tips

Features

• Patented TwistGuard™ extendable tip shroud meets the highest electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements
• New WearGuard™ lead wire wear indication. Each test lead is covered by two layers of silicone insulation; inner contrasting color is exposed when the leads are nicked, scuffed, or otherwise damaged and in need of replacement
• Double insulated silicone leads. TL175 test leads withstand high temperatures and remain flexible in cold temperatures
• Extra-heavy duty strain relief on both probe-end and plug-end, tested beyond 30,000 bends without failure
• Universal input plugs are compatible with all instruments that accept standard 4 mm shrouded banana plugs

Technical Information

• Ratings CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2
• Exposed probe tip length 0.75 to 0.16" (19 to 4 mm)
• altitude 6,562 ft (2000 m)

Items Included

• Fluke TL175 TwistGuard Test Leads Set

Downloads

Datasheet
