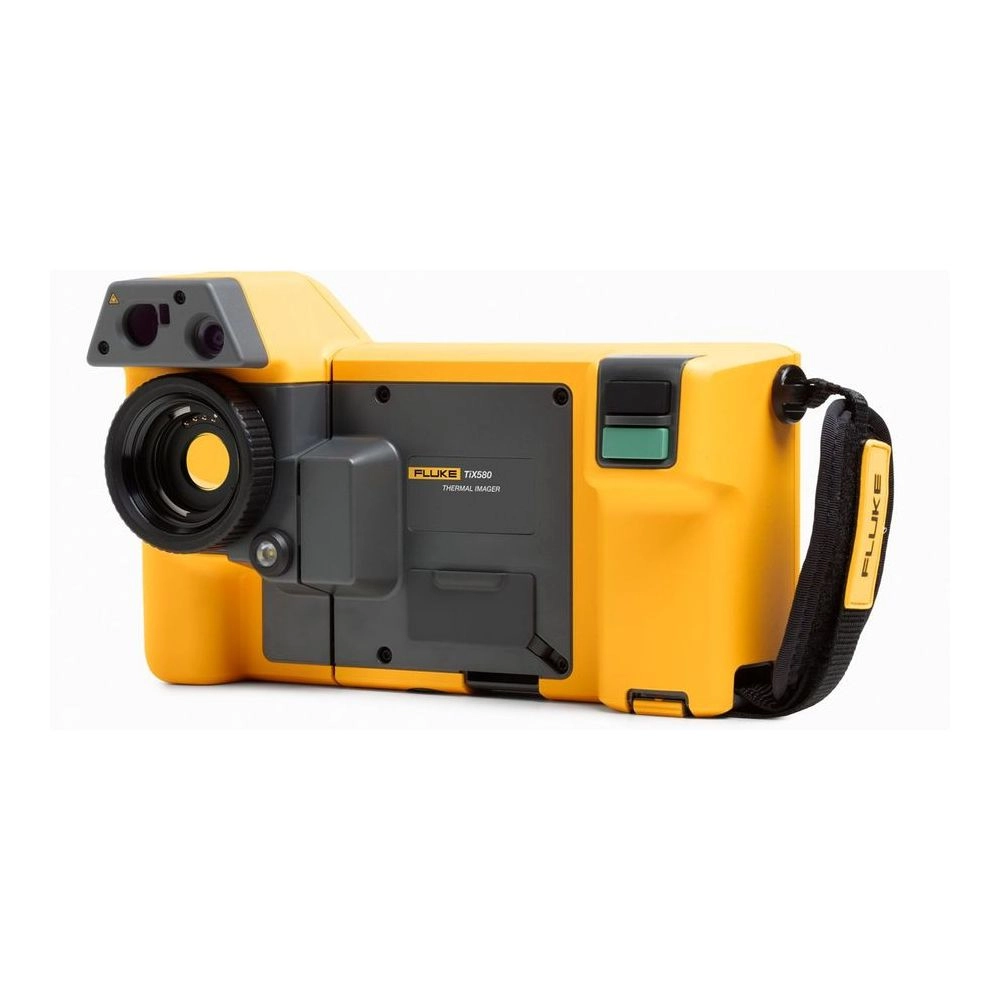

Fluke TIX580 9HZ Infrared Thermal Camera, 640x480 Pixels, 9 Hz, -20 to 1000 °C, with on Camera SuperResoution
Model # TIX580 9HZKey Features
?
Question about this product?
Features
- Rugged, superbly engineered 640 x 480 thermal imaging camera

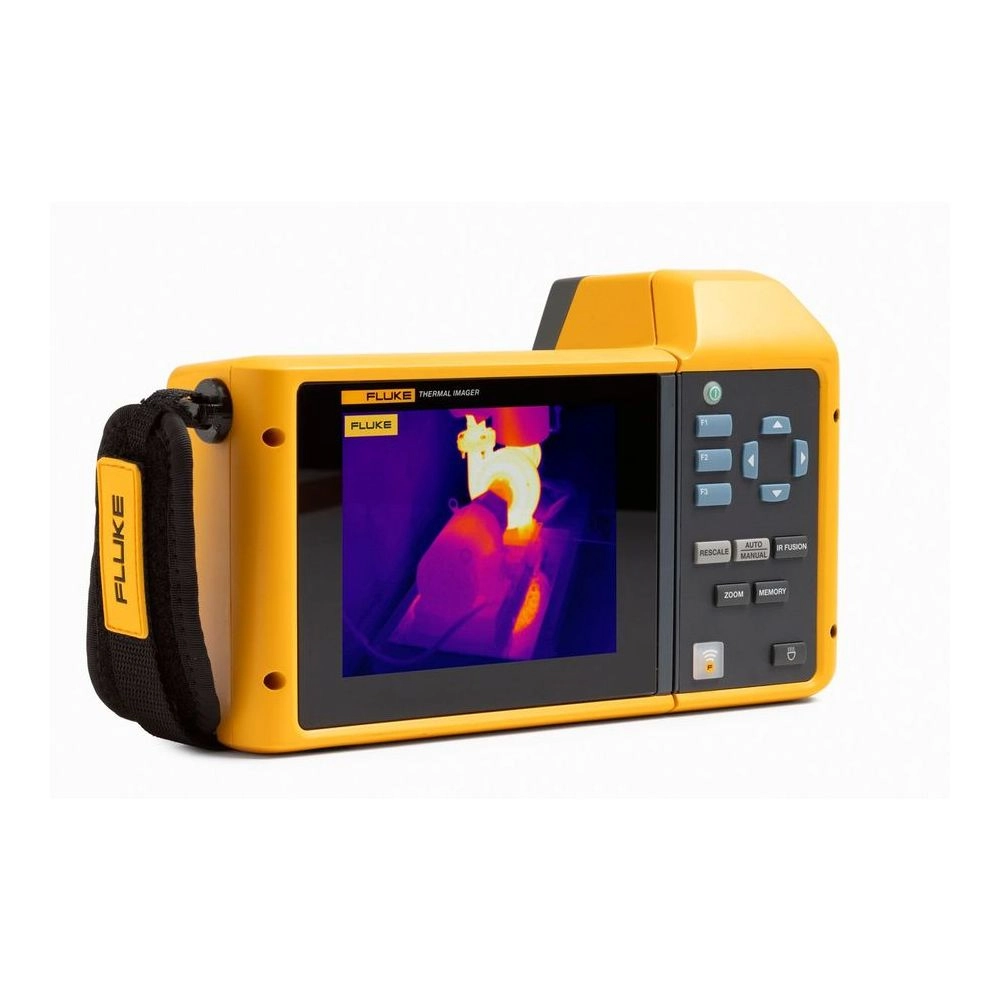

- Provides large 5.7-inch responsive LCD touchscreen with 150% more viewing area than 3.5-inch screen

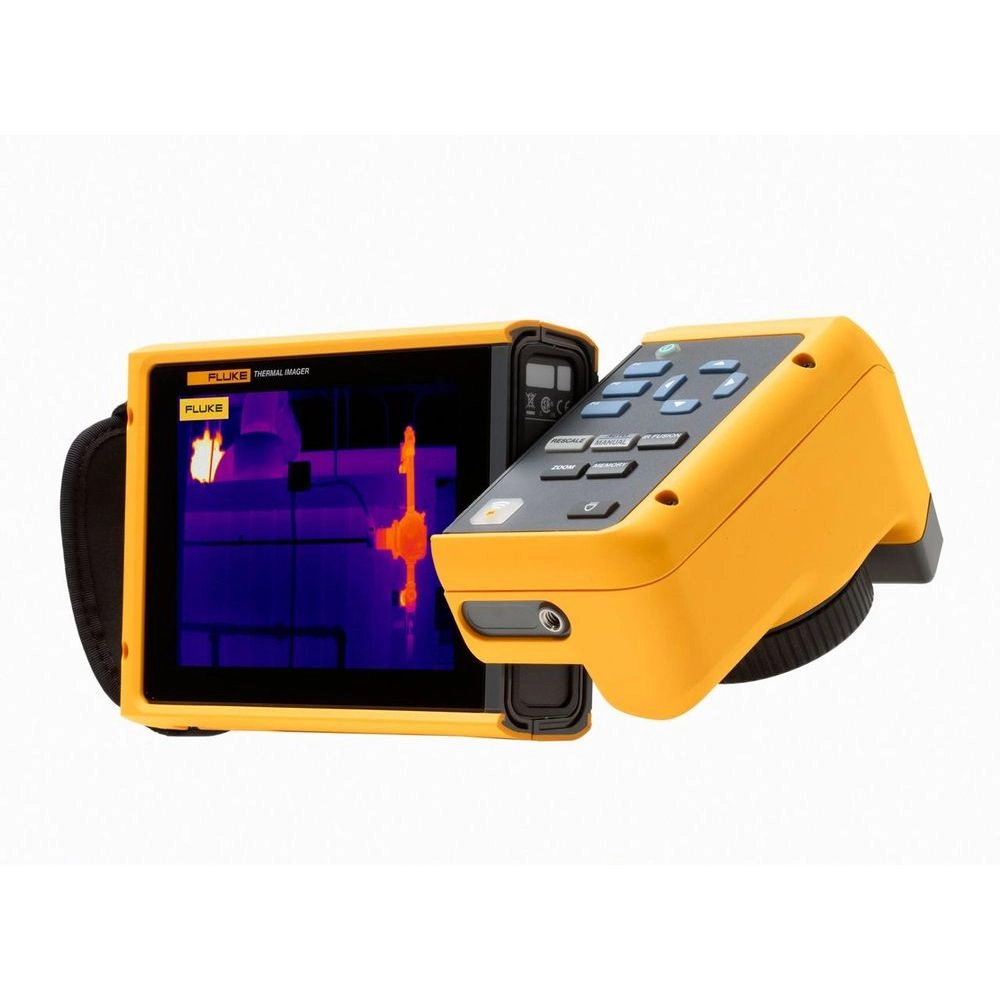

- Features 240° rotating screen for unmatched shooting flexibility
- Provides 4x the pixel data with on-camera SuperResolution to create a 1280 x 960 resolution image
- Real-time temperature graphs
- Radiometric video recording
- Auto capture image sequence
- MatLab and LabView integration capabilities
Technical Information
- IFOV with standard lens0.93 mRad
- D~S Ratio1065~1
- Detector resolution640 x 480 (307.200 pixels)
- Temperature measurement range-20 °C to 1000 °C (-4 °F to 1832 °F)
- Frame rate9 Hz
- Touchscreen display (capacitive)5.7 inch (14.4 cm) landscape 640 x 480 LCD
- Rugged, ergonomic design240 ° rotatable (articulating) lens
- Digital zoom2x, 4x, and 8x
- Pre-calibrated Lenseswide angle, 2x telephoto, 4x telephoto and 25 micron/macro
- SuperResolutionYes
- MultiSharp FocusYes
- LaserSharp Auto FocusYes
- Laser distance meterYes
- Advanced manual focusYes
- Thermal sensitivity (NETD)≤ 0.05 °C at 30 °C target temp (50 mK)
- Enclosure ratingIEC 60529~ IP54
- Drop25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens
- Laser pointerYes
- LED light (torch)Yes
- Size (H x W x L)27.3 x 15.9 x 9.7 cm
- Weight (battery included)1.54 kg

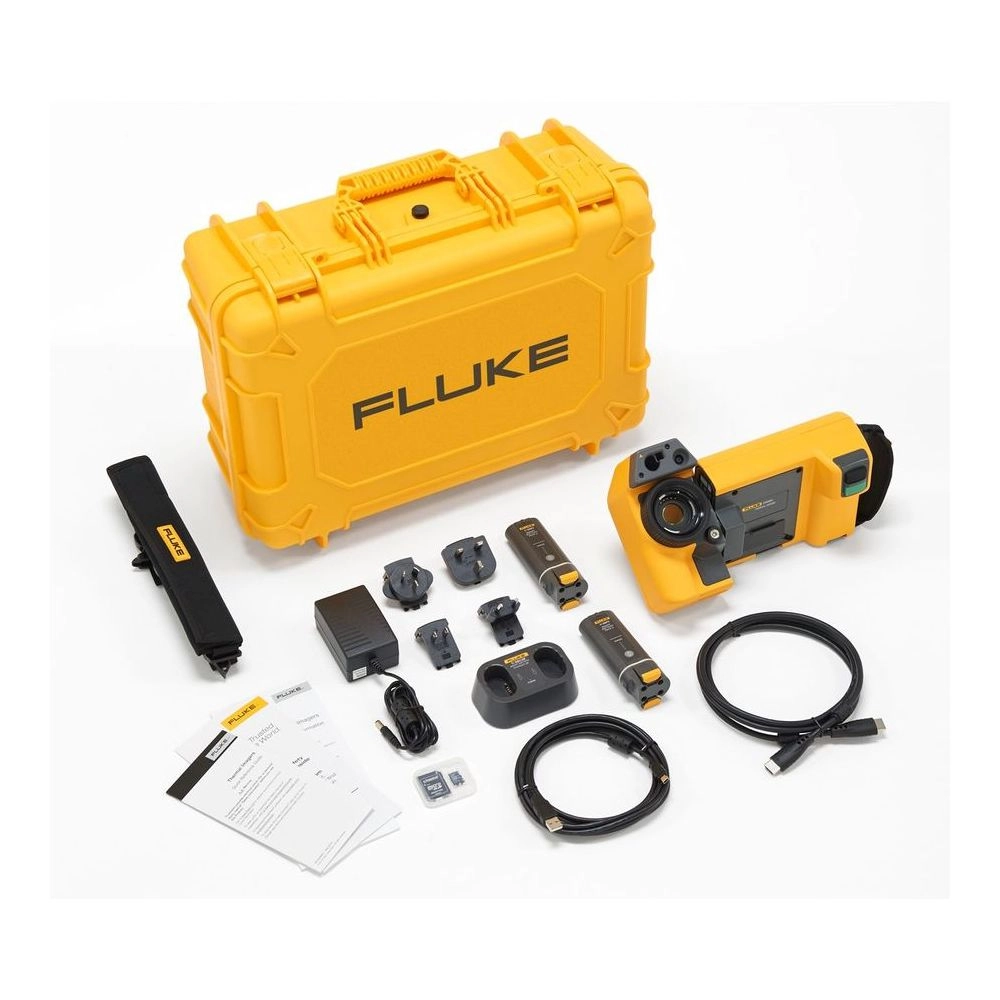

Items Included
- 1x Thermal imager with standard infrared lens
- 1x AC power supply and battery pack charger (including universal AC adapters)
- 2x Rugged lithium ion smart battery packs
- 1x USB cable
- 1x HDMI video cable
- 1x Rugged, hard carrying case
- 1x Adjustable neck and hand strap
