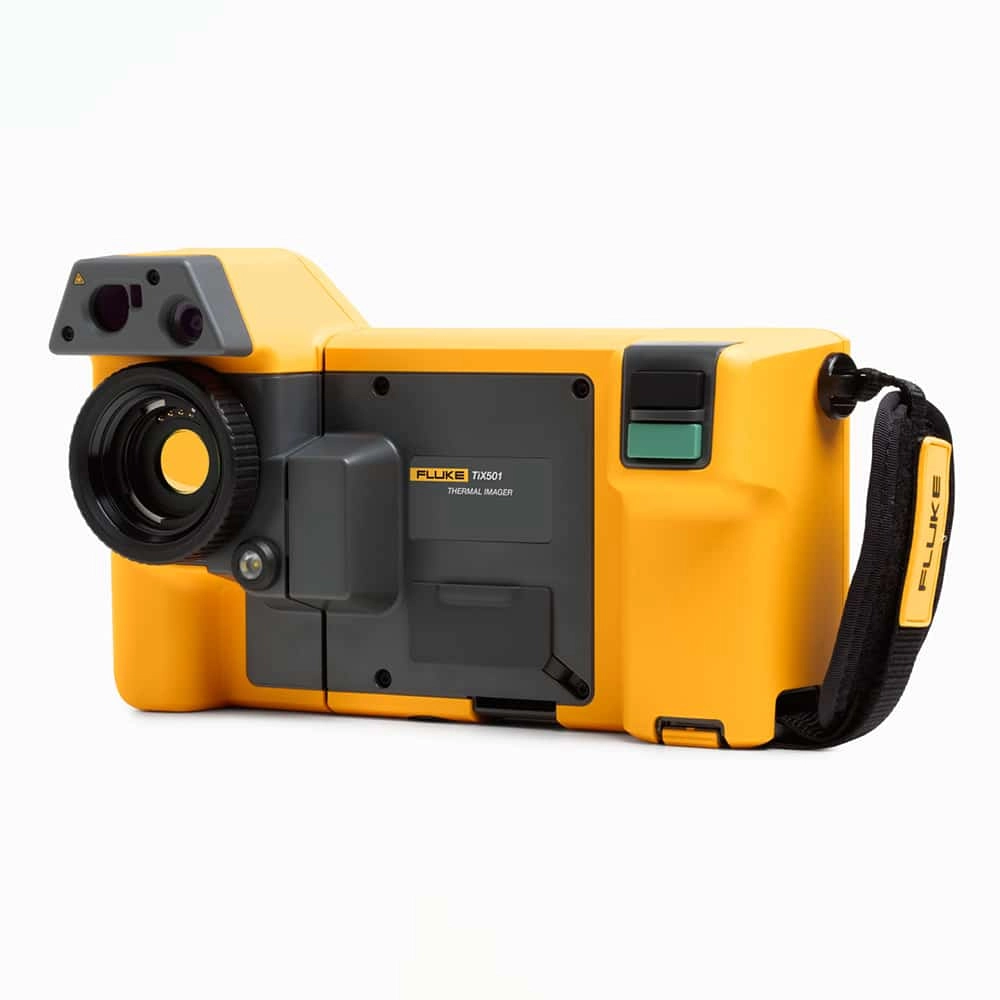

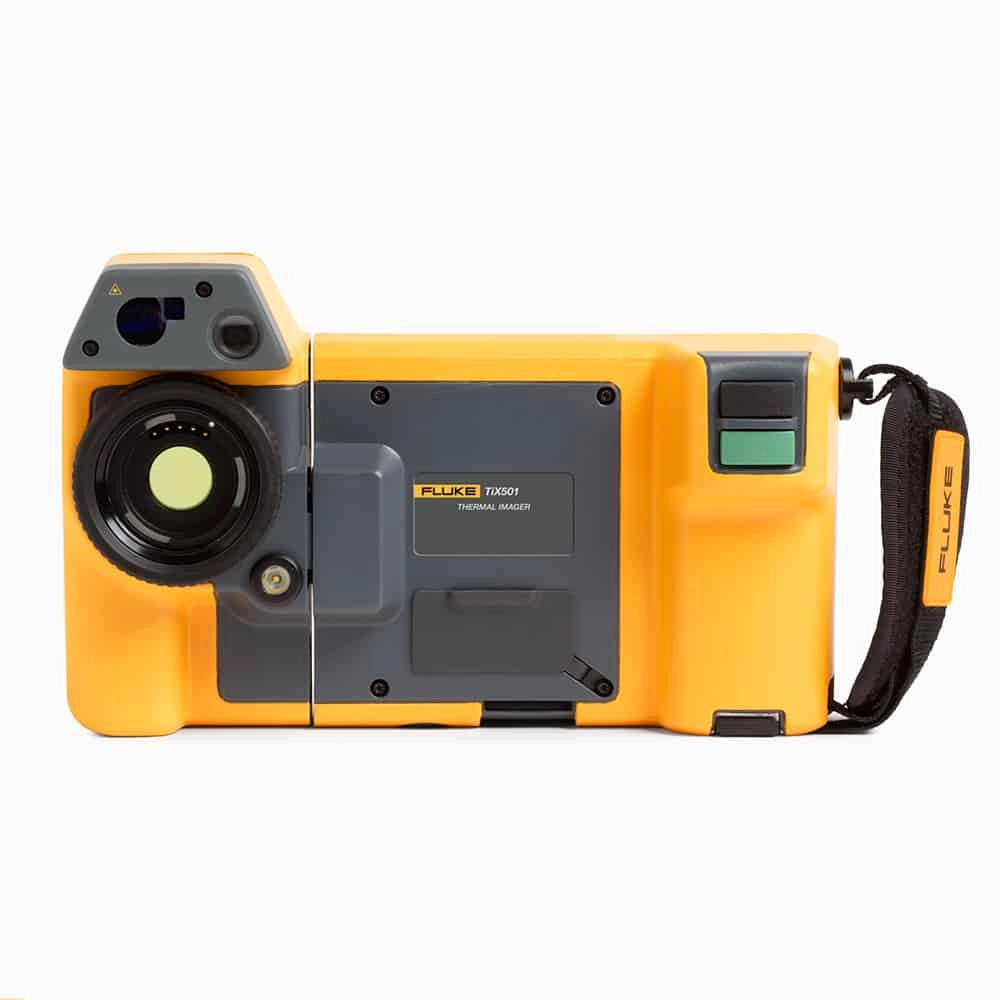

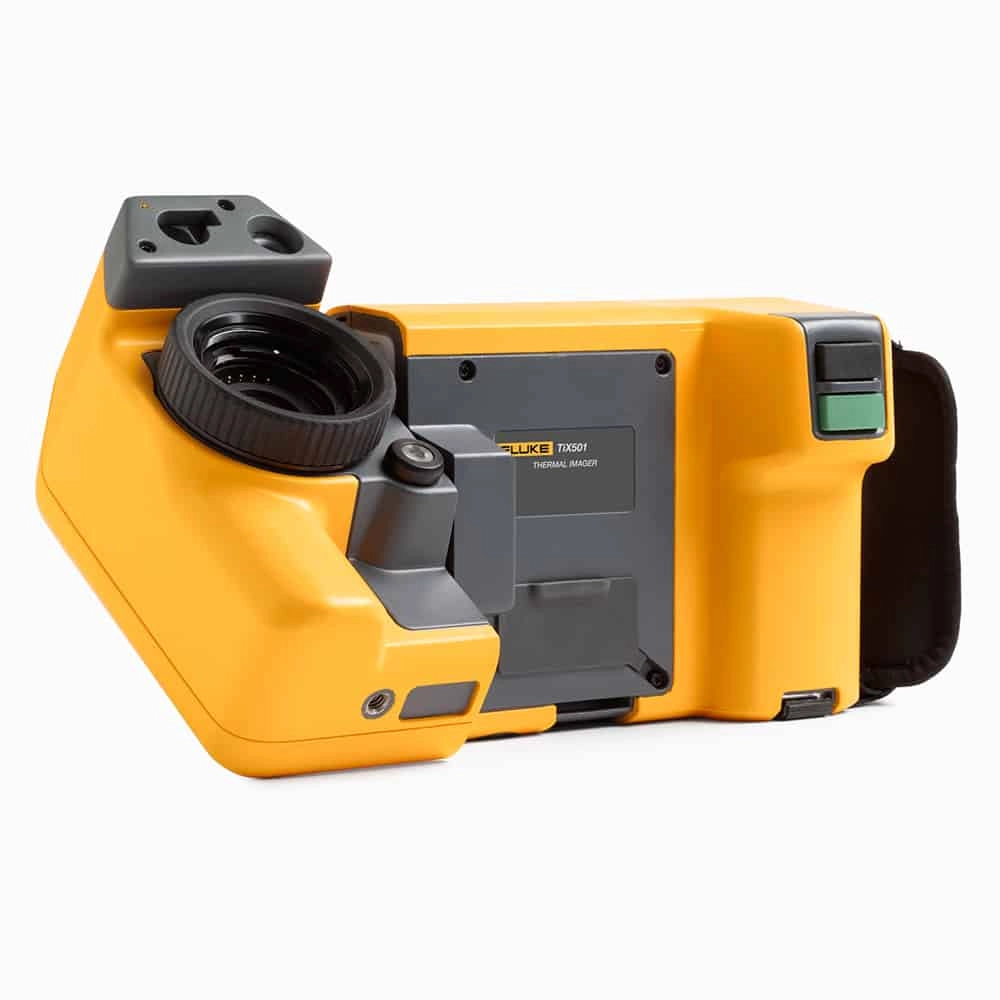

Fluke TiX501 9Hz Thermal Imaging Camera, 640x480, 9Hz, -20 to +650 °C
Model # TiX501 9HzKey Features
?
Question about this product?
Features
- Shoot images near... and far. Interchangeable Smart Lenses require no calibration of the thermal camera and give you the versatility and image quality needed to conduct inspections in almost any environment.
- Find subtle temperature differences easily-with advanced thermal sensitivity
- Subject to Export Control
- Edit and optimize images
- Combine infrared and visible images for simpler analysis
- Create detailed reports
Technical Information
- IFOV (Spatial Resolution)0.93 mRad, D:S 1065:1
- Infrared resolution640 x 480 (307,200 pixels)
- Field of view34 °H x 24 °V
- Minimum focus distance15 cm (approx. 6 Inches)
- Thermal sensitivity (NETD)≤0.075 °C at 30 °C target temp (75 mK)
- Frame rate60 Hz or 9 Hz versions
- Temperature-20 °C to +650 °C
- Color alarms (temperature alarms)High temperature, low temperature, and isotherms (within range)
- Infrared spectral band7.5 μm to 14 μm (long wave)
- Operating temperature-10 °C to +50 °C (+14 °F to +122 °F)
- Storage temperature-20 °C to +50 °C (-4 °F to +122 °F) without batteries
- Relative humidity10 % to 95 % non-condensing
- Vibration0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
- Shock25 g, IEC 68-2-29
- Size (H x W x L)27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 inches)
Items Included
- 1x Thermal imager with standard infrared lens
- 1x AC power supply and battery pack charger
- 2x Rugged lithium ion smart battery packs
- 1x USB cable
- 1x HDMI video cable
- 1x Rugged, hard carrying case
- 1x Soft transport bag
- 1x Adjustable hand and neck strap
